OptiCare for Eleganza 5
9 Putting into Service (only OptiCare for Eleganza 5)
WARNING!
Risk of injury when working on the OptiCare integrated mattress replacement system!
► Ensure that the Eleganza 5 bed is disconnected from the mains connection prior to putting OptiCare integrated
mattress replacement system into service, putting it out of service and maintenance.
► Ensure that the castors are locked prior to putting OptiCare integrated mattress replacement system into service,
putting out of service and maintenance.
CAUTION!
Material damage due to incorrect putting into service!
► Ensure that putting into service is performed exclusively by manufacturer´s customer service or trained hospital
personnel.
The OptiCare mattress replacement system replaces any mattress on the Eleganza 5 bed frame.
► Remove any existing mattress.
► Put mattress on the Mattress support platform with air pipes at foot end of the bed.
► Connect Air Pipes to SCU observing colour code.
► Make sure that the CPR valves on both sides of the head end of the mattress are not left open but connected
and accessible to manipulation.
NOTE During rst installation of the mattress CPR valve is open!

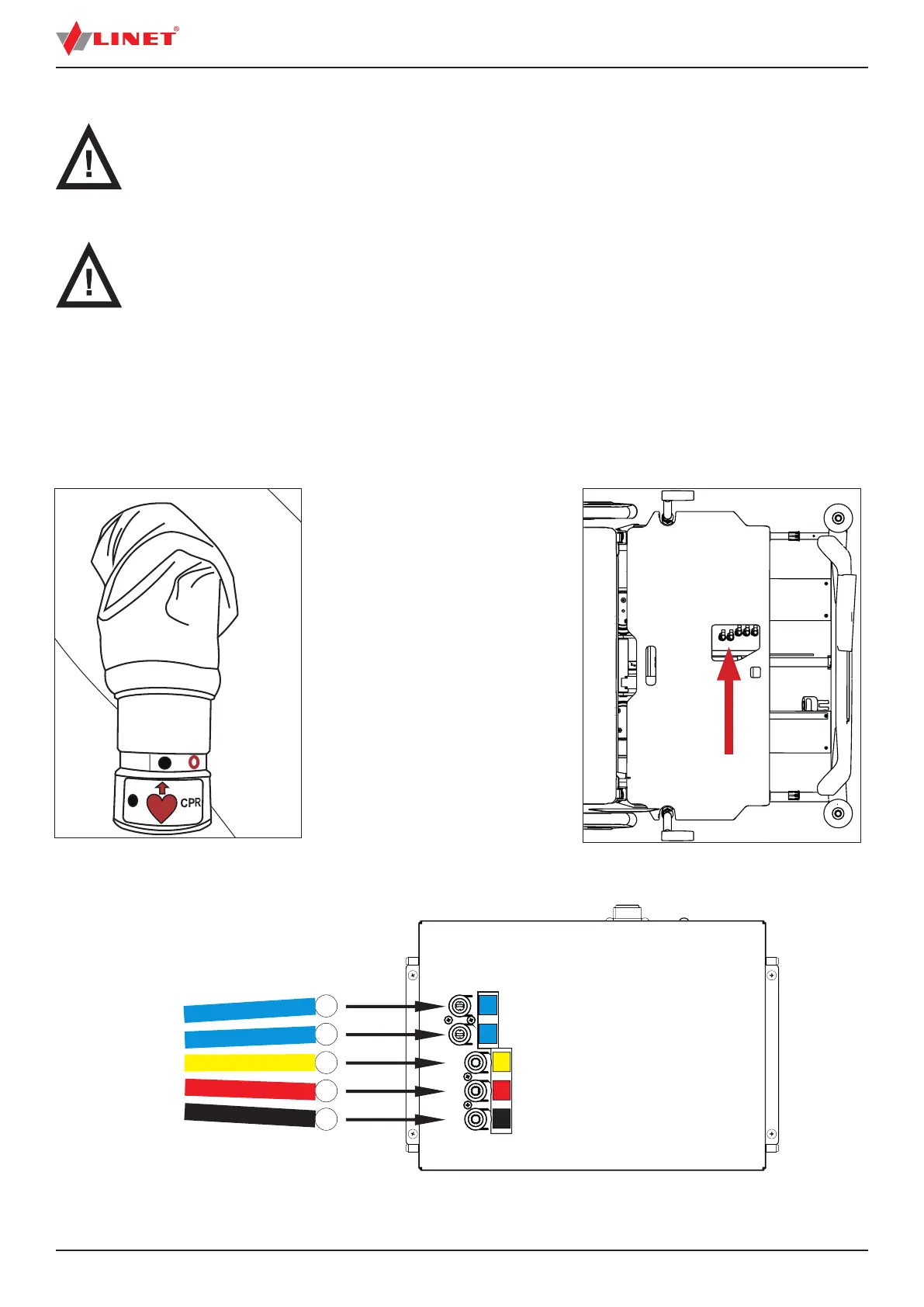

Fig. SCU with Air Pipes
Fig. Closed CPR valve
BLUE - MCM connector
BLUE - MCM connector
YELLOW - ODV connector
YELLOW
RED - Area A
RED
BLACK - Area B
BLACK
BLUE
BLUE
Fig. Air Pipes and SCU with Air Pipe Connectors
