OptiCare for Eleganza 5
10.3 OptiCare Mattress Controls (Eleganza 5 with OptiCare)
Control and information on status of the OptiCare mattress is by the display and keyboard on the iBoard Standard.
Patient in bed detection (PIB)
Patient in bed detection system detects when a patient has entered or left the bed. This automatically starts the optimization proces
on patient ingress and puts the mattress into Standby mode on patient egress. During Standby mode mattress areas A and B are
inated to a static pressure. There is a short stable pressure detection delay before reacting to change in patient PIB status to pre-
vent unnecessary mode changes because patient has changed position.
10.3.1 MATTRESS NOT INSTALLED
When OptiCare compressor is installed on the bed but
OptiCare mattress is not connected to the compressor
„MATTRESS NOT INSTALLED“ text appears on the display.
NOTE If the OptiCare mattress has been deliberately
removed from the bed frame in order to use an alternative
mattress then you must log out the OptiCare.
To connect OptiCare mattress to the compressor:
► connect each air pipe to the compressor.
10.3.2 MATTRESS IDENTIFICATION
When OptiCare mattress is connected to the compressor and
its identication starts „MATTRESS INSTALLED“ text is displayed
and „MATTRESS IDENTIFICATION“ text is scrolling on the display.
NOTE Number on the place of Mode Name (9)
indicates identication countdown.
To achieve identication of connected mattress:
► wait until identication countdown disappears.
10.3.3 MATTRESS INFLATION
When OptiCare mattress is identied it is not prepared for
a patient because mattress is not inated enough.
„MATTRESS INFLATION“ text is scrolling on the display.
NOTE Number on the place of Mode Name (9)
indicates ination countdown.
To achieve minimum ination of the mattress:
► wait until ination countdown disappears.

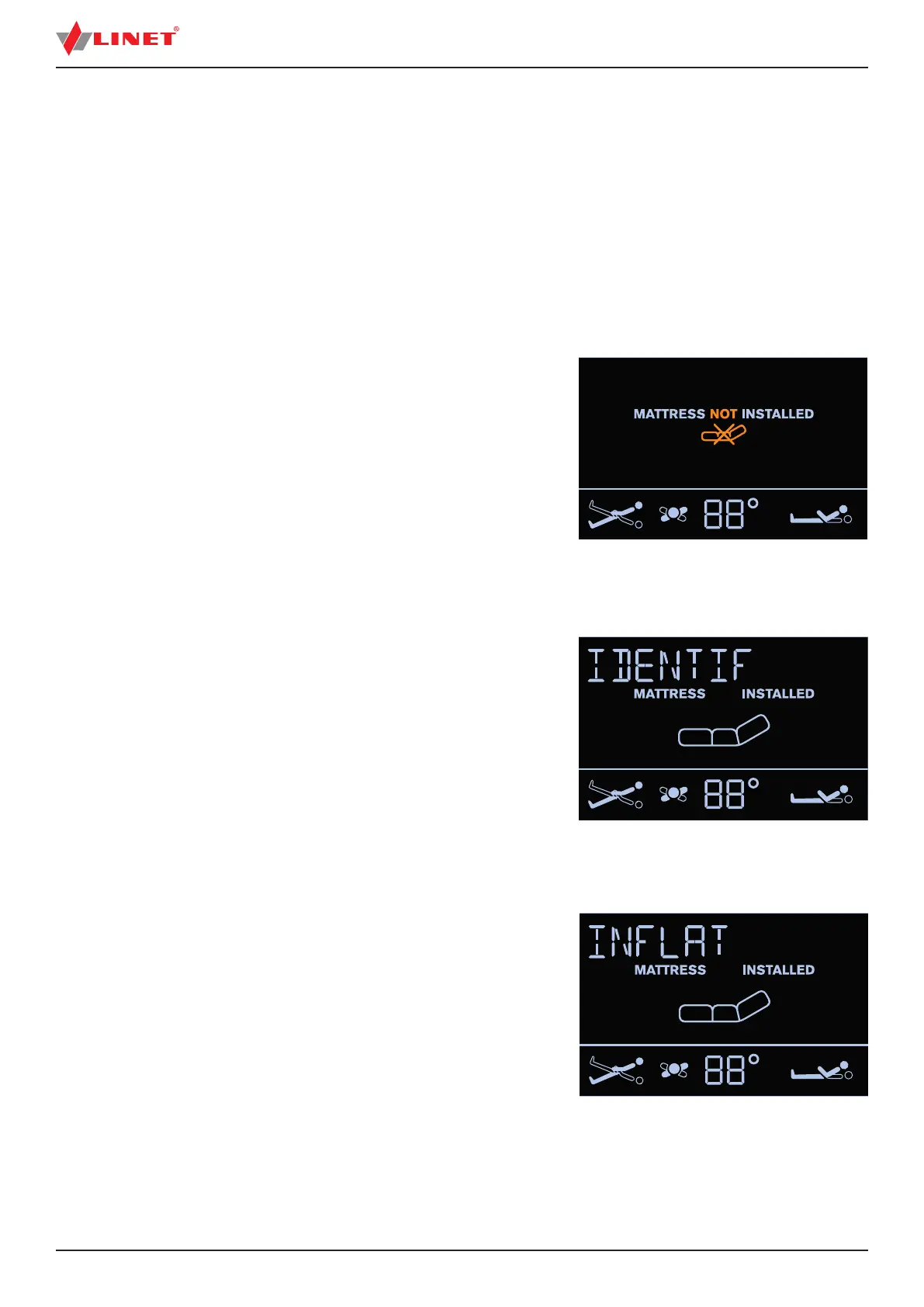

Fig. Mattress Not Installed Screen
Fig. Mattress Identication Screen
Fig. Mattress Ination Screen
