OptiCare for Multicare

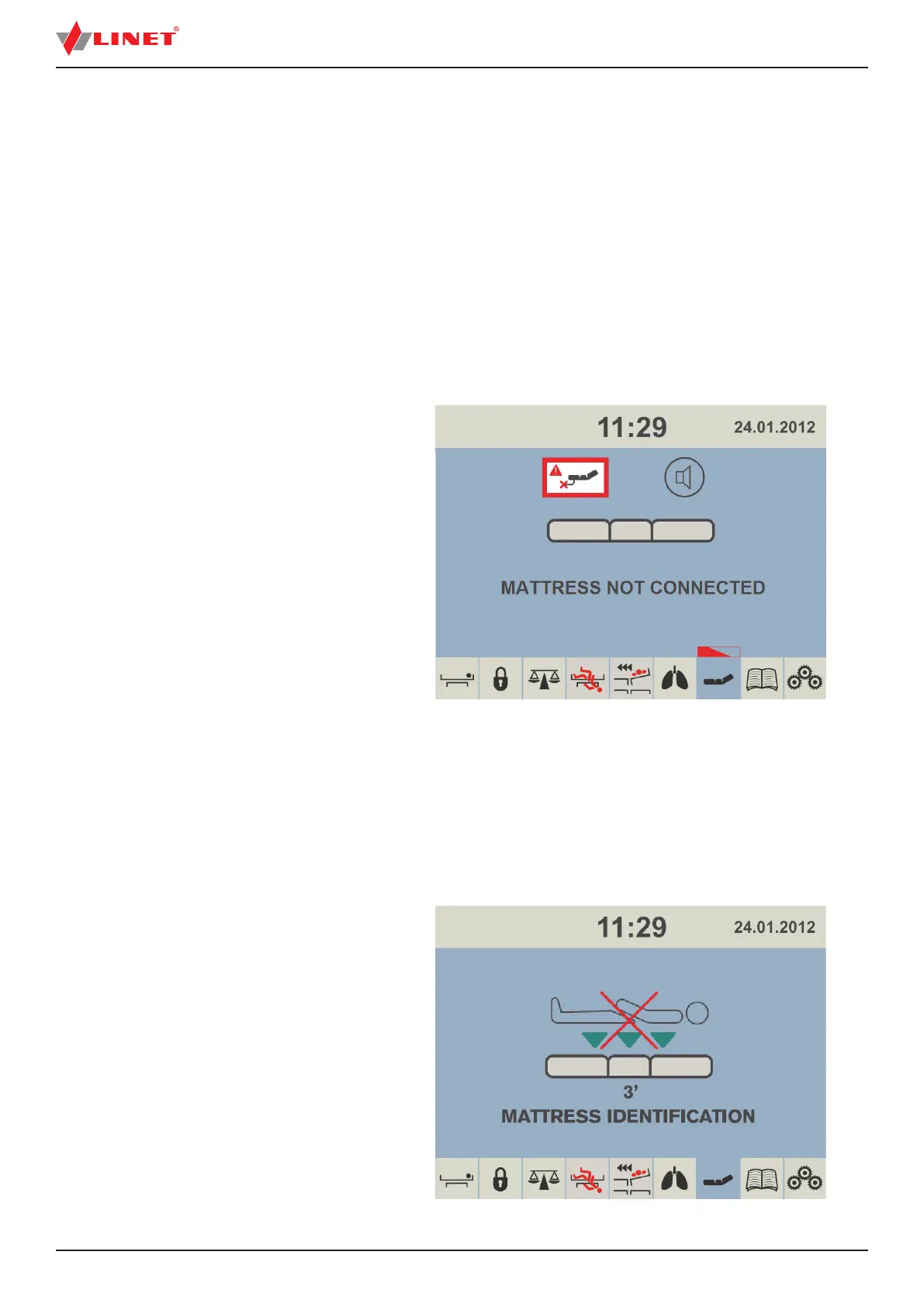

Fig. Mattress Not Connected Screen
Fig. Mattress Identi cation Screen
12.4 OptiCare Mattress Controls (Multicare with OptiCare)
Control and information on status of the OptiCare mattress is by the display and keyboard on the Multiboard.
Patient in bed detection (PIB)
Patient in bed detection system detects when a patient has entered or left the bed. This automatically starts the optimization proces
on patient ingress and puts the mattress into Standby mode on patient egress. During Standby mode mattress areas A and B are
in ated to a static pressure. There is a short stable pressure detection delay before reacting to change in patient PIB status to pre-
vent unnecessary mode changes because patient has changed position.
12.4.1 MATTRESS NOT CONNECTED
When OptiCare compressor is installed on the bed but OptiCare mattress is not connected to the compressor „MATTRESS NOT
CONNECTED“ screen appears.
NOTE: Red strip above the mattress icon is ashing in this screen.
NOTE: If the OptiCare mattress has been
deliberately removed from the bed frame
in order to use an alternative mattress
then you must log out the OptiCare.
To connect OptiCare mattress to the compressor:
► connect each air pipe to the compressor.
12.4.2 MATTRESS IDENTIFICATION
When OptiCare mattress is connected to the compressor and its identi cation starts „Mattress Identi cation“ screen appears.
NOTE: Number above the text „MATTRESS IDENTIFICATION“ indicates identi cation countdown.
To achieve identi cation of connected mattress:
► wait until identi cation countdown disappears.
