Linksys LRT214 User Manual

40
Port Management
Linksys

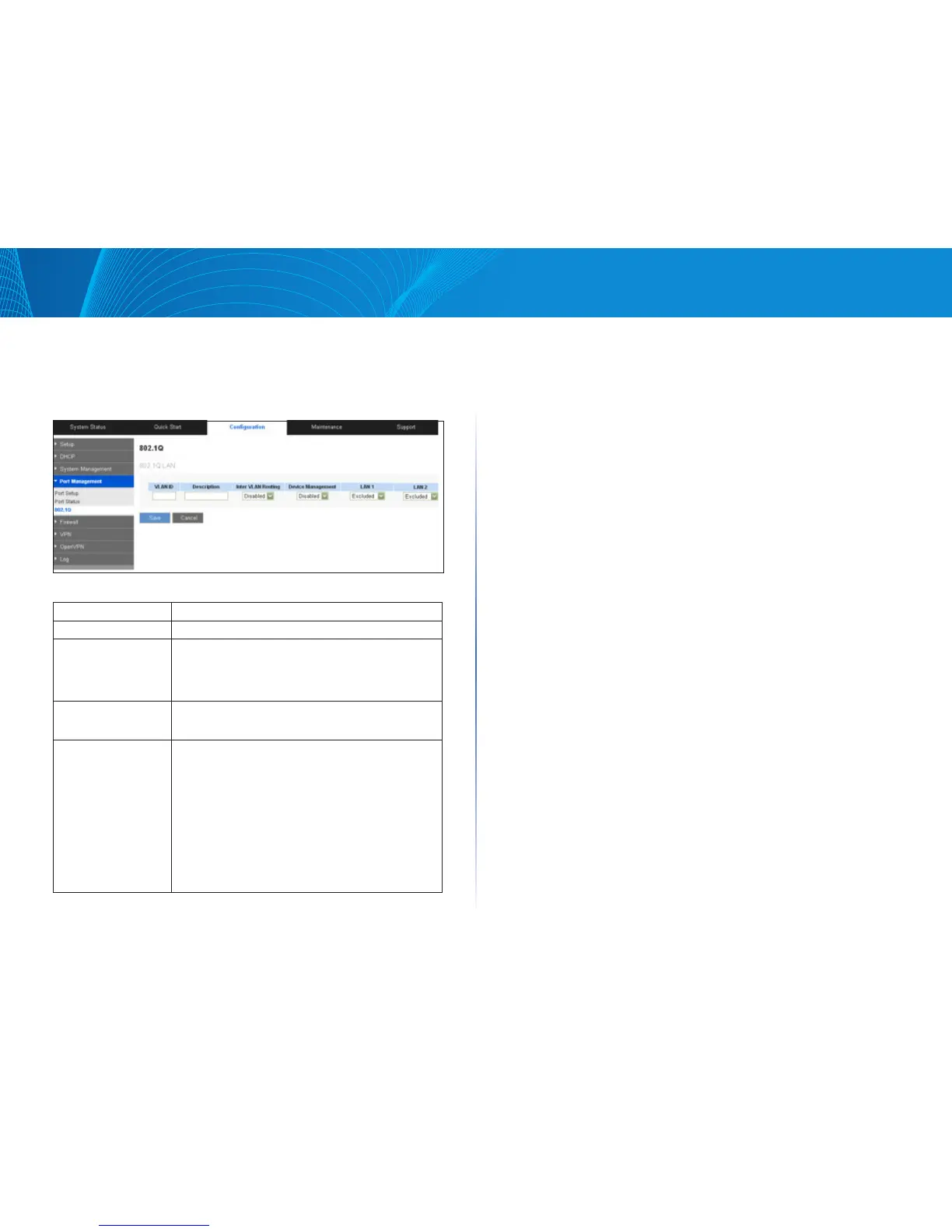

802.1Q LAN Configuration
You can click Edit to change an existing VLAN configuration or click Add to set
up a new set of VLAN.
VLAN ID: Input VID (range:2~4092) of the VLAN.
Description: Give a name to the VLAN.
Inter VLAN Routing: Every set of VLAN has its own DHCP address pool.
Select Enabled so that the VLAN is allowed to
communicate with other sets of VLAN. The default
value is Disabled.
Device
Management:
Select Enabled to allow the VLAN access to the Web
GUI. The default value is Disabled.
LAN1 ~ LAN4: Configure VLAN status of physical LAN ports. There
can only be one untagged VID for a LAN port.
For example, if we configure LAN2 as Untagged
for VID2, LAN2 for VID1 will be changed as Tagged
automatically.
If we configure LAN2 for VID1 as Tagged, LAN2 for
VID2 will be changed as Untagged automatically.
If there is only one VID, changing status to Tagged for
any LAN port is not allowed.

Linksys LRT214 Specifications

General

Color	black/blue, multi
Wi-Fi Mesh System	no
Frequency Band	not applicable
Ethernet Standard	10/100/1000
Gigabit Ethernet Speed	yes
Firewall	nat, spi
Ports	rj-45
LAN Ports	4
Built In Modem	yes

Weight and Dimensions

Height	1.6 inches
Width	7.5 inches
Net Weight	1.6 pounds
