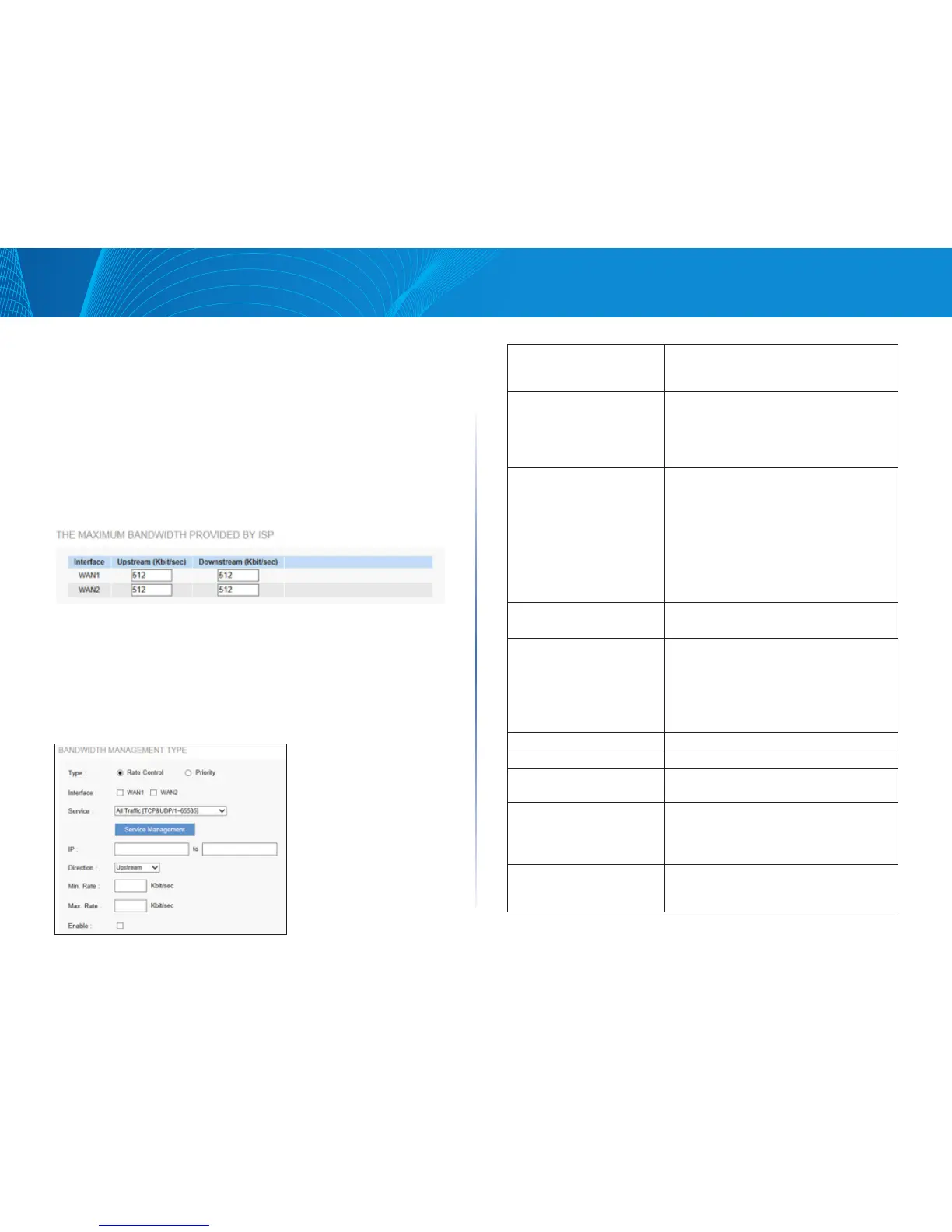

Bandwidth Management
You can configure upstream and downstream bandwidth and set Quality of
Service (QoS) rules in this page.
NOTE Remember to click Save to save your settings before leaving the page.
You can also click Cancel to leave without any change.
The Maximum Bandwidth Provided by ISP
Input the maximum upstream and downstream bandwidth which users applied
for from ISP. The default is 512 kbit/sec.
NOTE The unit of calculation in this example is Kbit. Some software indicates
the downstream/upstream speed with the unit KB. 1KB = 8Kbit.
Bandwidth Management Type
There are two types of QoS: Rate Control and Priority.
• Rate Control: Configure minimum (guaranteed) bandwidth and
maximum (limited) bandwidth for Specified IP address or Service Port.
Interface: Select on which WAN the QoS rule should
be executed. It can be a single selection or
multiple selections.
Service: Select a service to manage. If the bandwidth
for all services of each IP is to be controlled,
select All (TCP&UDP) 1~65535”. You can also
click Service Management to add service
items.
IP Address: Select which user is to be controlled. If only
a single IP is to be restricted, input this IP
address in both fields, such as “192.168.1.100
to 192.168.1.100”. If an IP range is to
be controlled, input the range, such as
“192.168.1.100 ~ 192.168.1.150”. If all Intranet
users that connect with the device are to be
controlled, input “0” in the boxes of IP address.
Direction: Upstream: outbound traffic.
Downstream: inbound traffic.
Min. & Max. Rate: (Kbit/Sec) The minimum bandwidth rule guarantees
minimum available bandwidth.
The maximum bandwidth rule restricts
maximum available bandwidth.
Enable: Click to enable the rule.
Add to list: Add this rule to the list.
Delete: Click to delete an existing entry.
Update: Select the entry that you would like to modify.
Change the setting and click Update. Clicking
Add New deselects the entry and clears the
text fields.
View: Click Refresh to update the display or Close
to return to configuration page.
