System Management
Linksys

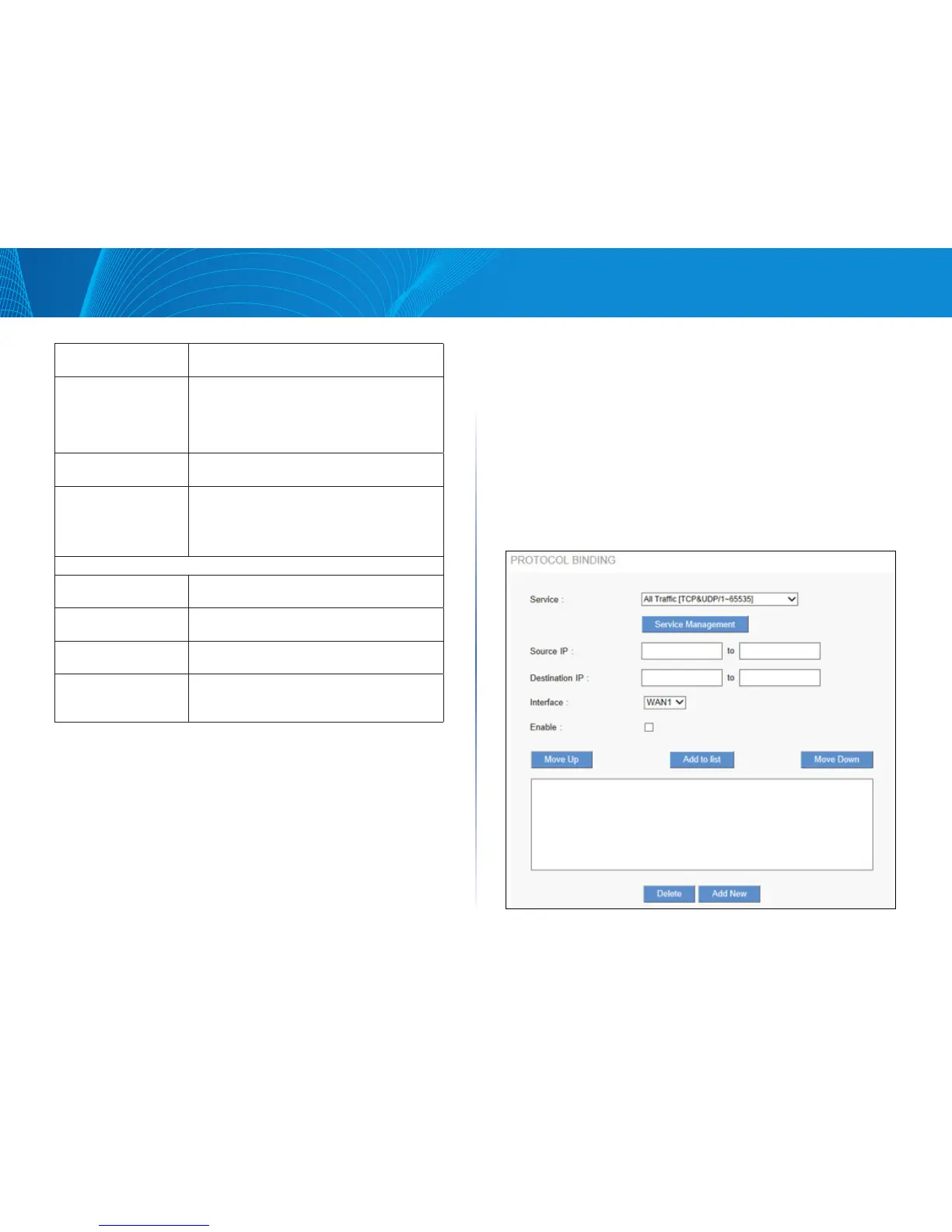

Protocol Binding (Only Dual-WAN Mode supports this
function)
Users can define specific IP addresses or specific application service ports
to go through a user-assigned WAN for external connections. For any other
unassigned IP addresses and services, WAN load balancing will still be carried out.
Note In the load balance mode of Assigned Routing, the first WAN (WAN1)
cannot be assigned. It is to be saved for the IP addresses and the application
Service Ports that are not assigned to WAN2 for external connections. In other
words, the first WAN (WAN1) cannot be configured with the Protocol Binding
rule. This is to avoid a condition where all WANs are assigned to specific Intranet
IP or Service Ports and destination IP, resulting in no more WAN ports available
for other IP addresses and Service Ports.
Enable Network
Service Detection:
Click to enable Network Service Detection.
Retry count: Input the retry times for network service
detection. If there is no feedback from the Internet
in the configured retry times, the router will rule
“External Connection Disconnected.” The default
is five retry times.
Retry Timeout: The default is 30 seconds. After the retry timeout,
external service detection will restart.
When Fail: (1) Prohibit WAN2 from handling traffic for WAN1
when WAN1 connection fails.
(2) Allow WAN2 to accept traffic from WAN2
when WAN1 connection fails.
Detecting Feedback Servers:
Default Gateway: If you check the box, the router will ping the default
gateway of your ISP to check network connectivity.
ISP Host: Router will attempt to ping the specified IP address
to determine whether network service is available.
Remote Host: Router will attempt to ping the specified IP address
to determine whether network service is available.
DNS Lookup Host: Router will attempt to ping the specified host/
domain name to determine whether network
service is available.
If you check multiple boxes, the router will detect internet connectivity if a ping
to any of the IP addresses is successful. If the router can ping none of them, it
will declare that the internet connectivity associated with the given WAN port
is not available. This will trigger the router to redirect all traffic to the WAN port
that has internet connectivity according to NSD.
