LivaNova SCPC - Removing the SCPC System Casing

SCPC System • Replacing components
CP_SEM_60-03-00.002 51

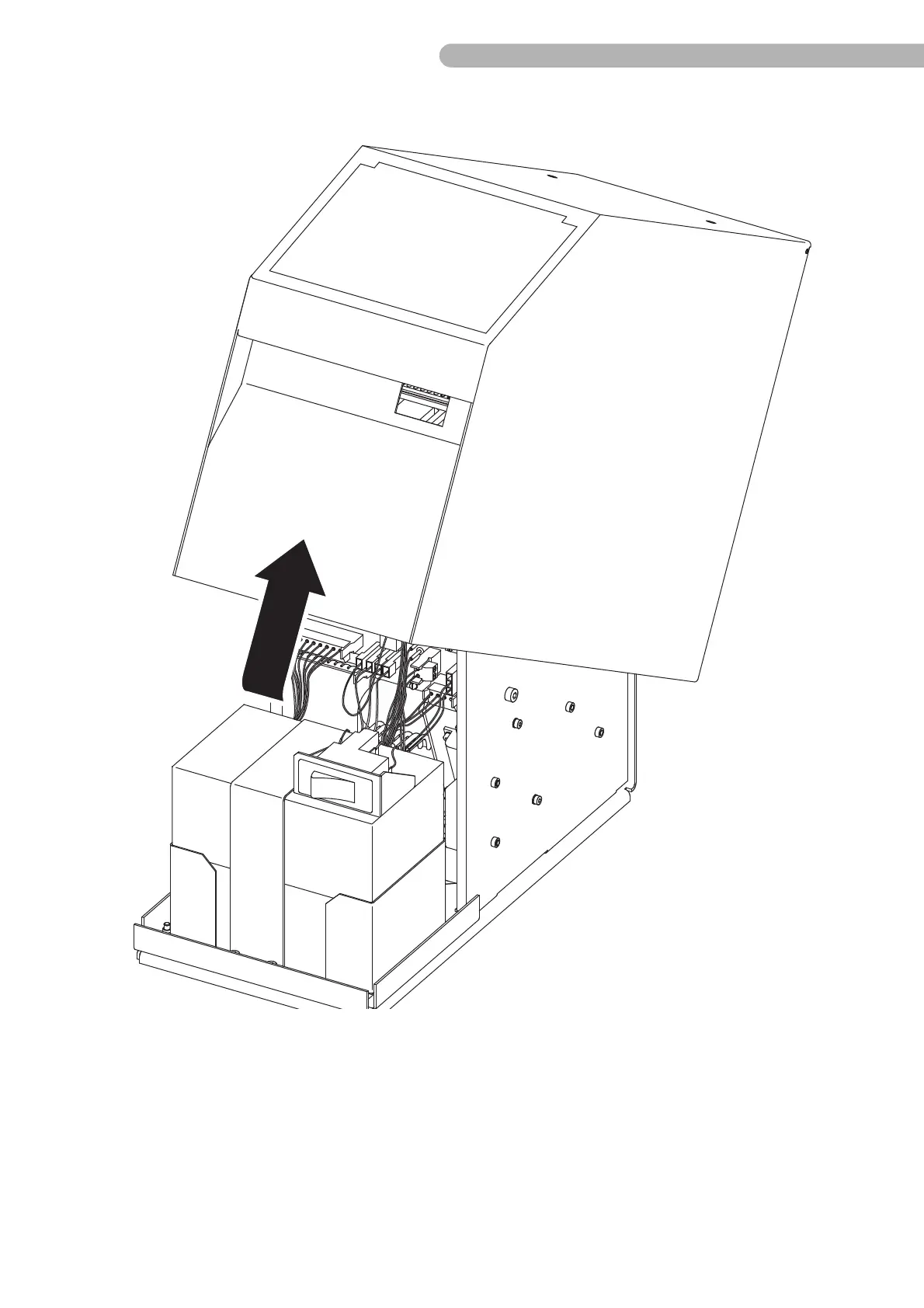

fig. 21: Removing the casing
!
Caution: When the front panel and touch screen are removed and the housing is open there is access
to battery voltage. Remove the bridge between the batteries to reduce the risk of short circuits.
◗ Now carefully lift the upper part of the casing upwards.
