22 CHAPTER 3: SETTING INTO OPERATION
QUICK LOAD SERVO 80 S2
Preparation for mounting
For mounting and installing the bar feed system, it is advisable to contact LNS or one of its agents. The
latter cannot be held responsible for any malfunction resulting from an incorrect installation in which they
did not take part.
Note: If the eyed screws are not mounted, they should be among the parts in the separate package

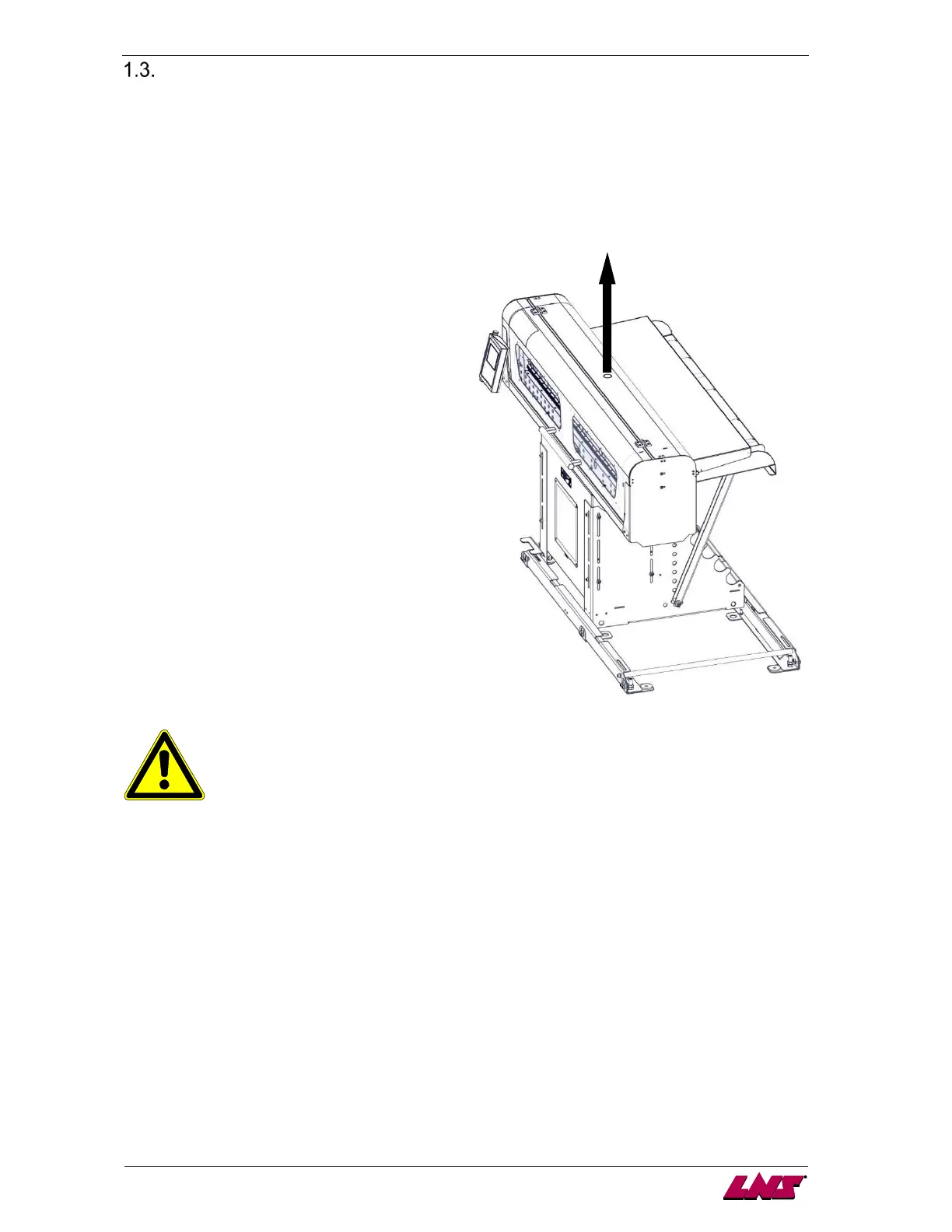

· Screw the lifting tool through the upper hole on the main access cover.
· Introduce a strap into the lifting screw, hook it
to the pulley. Lift the pulley to stretch the strap.
· Lift the bar feed and remove the crate.
· Now the bar feed system can also be moved
with a lift truck. In this case, place the arms of
the lift truck underneath the body of the bar
feed system.
· Move the bar feed system, taking care that it
remains horizontal, and that no one is nearby
or under the suspended load.
Do not knock the bar feed system as you move
it; this may damage it.
· Place the bar feed system behind the lathe, as
close as possible, and in an approximate
alignment with the spindle. For the placement,
the stationary and mobile space requirements
for the lathe and bar feed system should be
taken into account.
The distance between the lathe and the bar feed system should not exceed 20 mm. Should
an obstacle impose a greater distance, contact LNS or their local representative.
The area around the lathe and bar feed system must be cleared to allow for their maintenance and handling.
It should also remain clear after the installation is completed.
