CHAPTER 3: SETTING INTO OPERATION 25
QUICK LOAD SERVO 80 S2

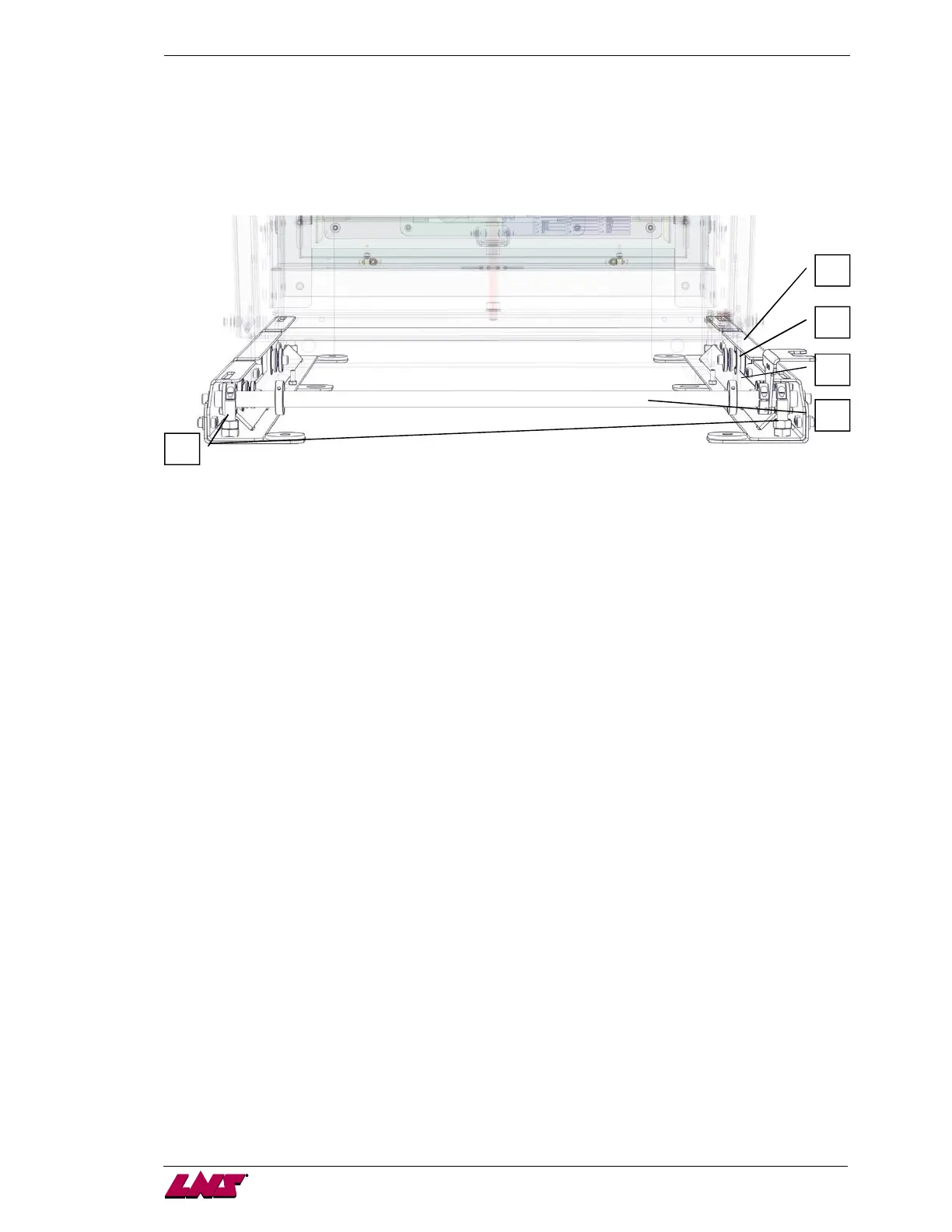

2.1.1. Installing the retraction mechanism longitudinally:
1. Bring the rails on their correct side.
2. Put the sliding wheels (B) in front of the guiding rails (C).
3. Push the rails (A) under the unit.
4. Install the cross girders (D) against the rails (A).
5. Use the levelling screws (E) to level the machine.
6. Tighten the locknuts of the levelling screws (E).
7. Proceed to the alignment as indicated on chapter 3 point 2.2.
B
C
A
D
E
