26 CHAPTER 3: SETTING INTO OPERATION
QUICK LOAD SERVO 80 S2

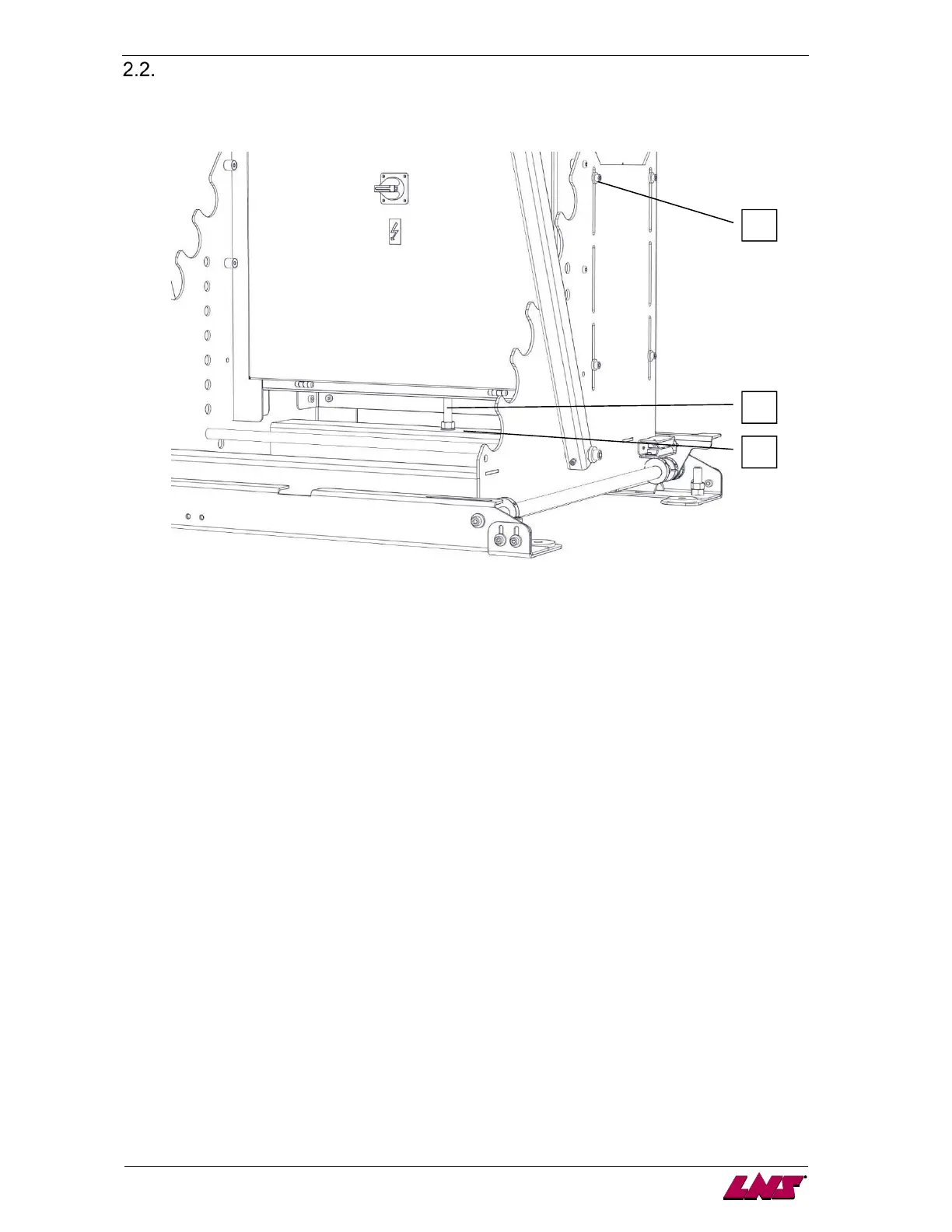

Adjusting the table height
· Check that the central screw (A) rests on the plate (B).
· Carefully loosen the 8 screws (C).
· Adjust the height of the bar feed system by tightening or loosening the central screw (A).
· When the correct height is reached, tighten the screws (C) and proceed with the alignment of the bar
feed system.
C
B
A
