3-12 Chapter 3: Procedures
QUICK SIX

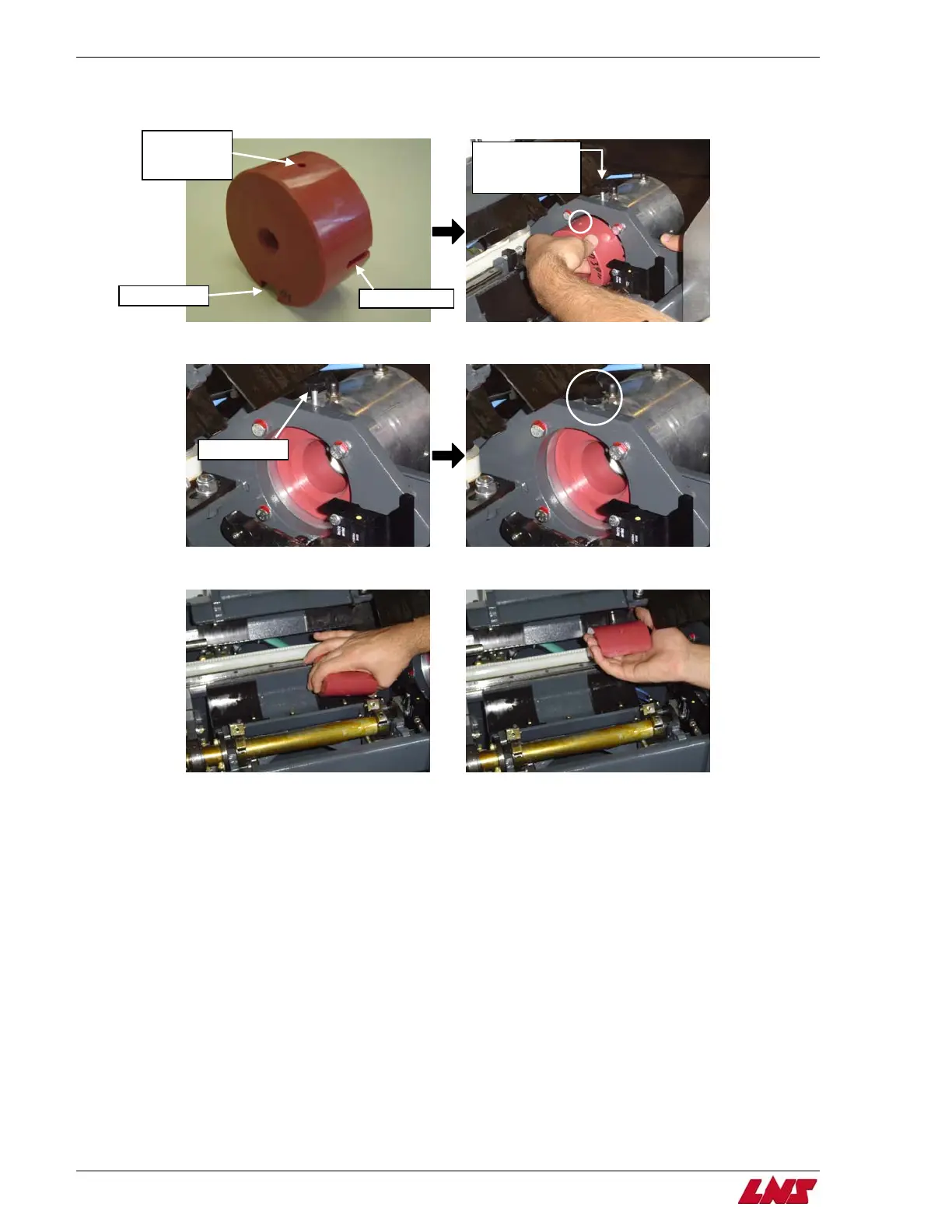

Step 4: Insert the correct size of guiding element into the outboard support with the through - hole up, the slotted key way on the
side, and the drainage slot at the bottom. Make sure that the through -hole on top is vertically aligned with the thumb screw
on top of the outboard support.
Step 5: Tighten the thumb screw on the outboard support once the guiding element is in place.
Thumb screw and
hole should be
lined up
Slotted ke
wa
Through – hole
for hydraulic oil
supply
Drainage slot
Thumb screw
Step 6: Insert the correct size of guiding elements according to bar stock diameter into the bearing blocks.
Procedure complete.
