Chapter 3: Procedures
QUICK SIX
3-17

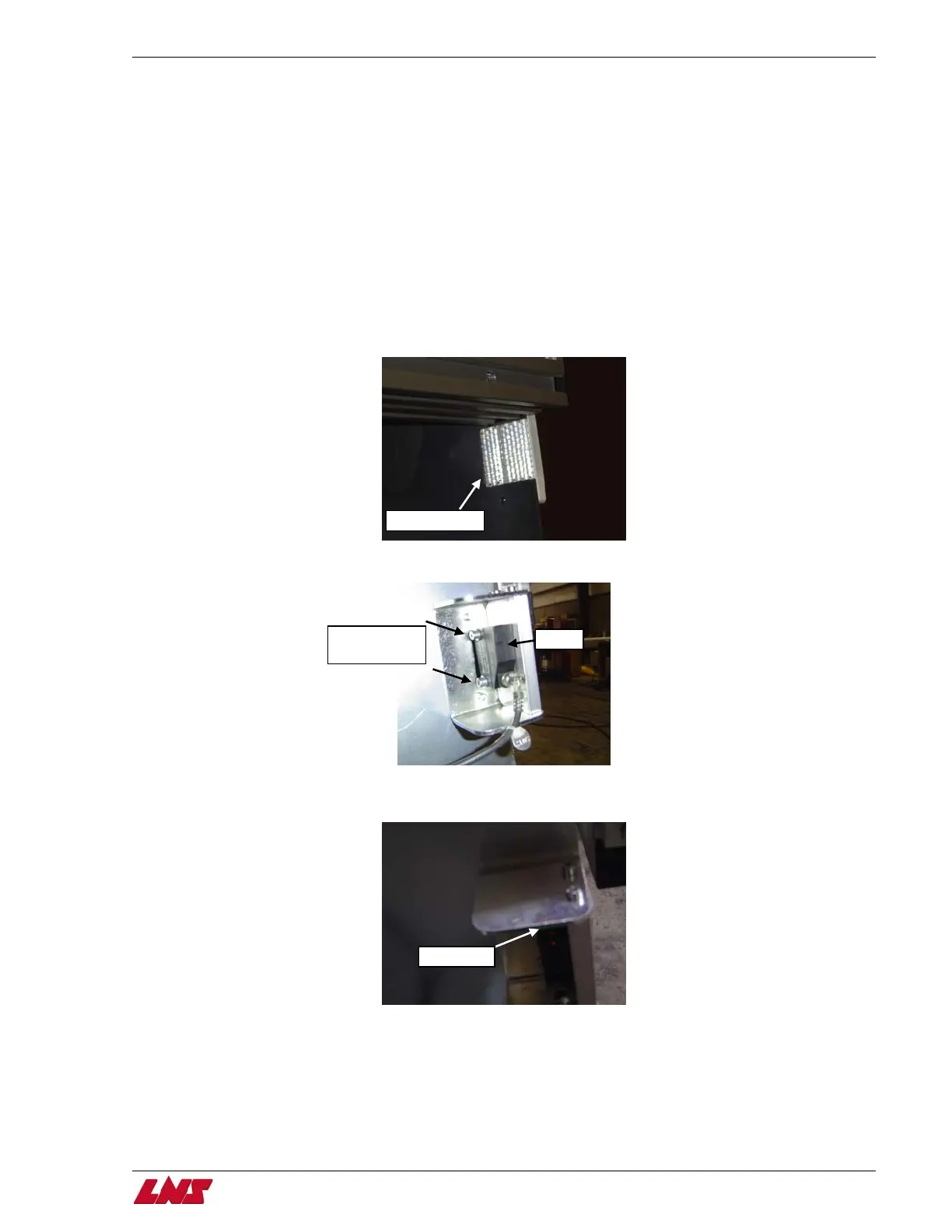

SQ12 Adjustment – Safety Reflector Switch
This procedure is used to adjust the safety reflector switch (SQ12). When performing this procedure, make sure that there is nothing
interfering with the switch.
Tools List:
• 3mm hex key
Procedure
Conditions:
• Main bar feed power on
• Bar feed in STOP mode
NOTE: Make sure that there is nothing interfering with the SQ12 switch. There is a light reflector on the other side of the bar feed that
repels the light beam.
Light reflector
Step 1: Loosen the two cap screws with a 3mm hex key on SQ12.
Loosen both cap
screws
SQ12
Step 2: Adjust the switch up and down until the LED light illuminates. (The LED light is barely visible in the picture below. The LED
light is located on top on the switch below the bracket.)
LED light
