QUICK SIX
Pusher Changeover
This procedure is used to change the pusher. To run 8mm (5/16”) to 20mm (3/4”) bar stock diameter, use the 8mm pusher. To run
21mm (13/16”) to 80mm (3 1/8”) bar stock diameter, use the 15mm pusher.
Tools List:
• 3mm hex key
• 6mm hex key
Procedure
Conditions:
• Main bar feed power on
• Main guiding channels open

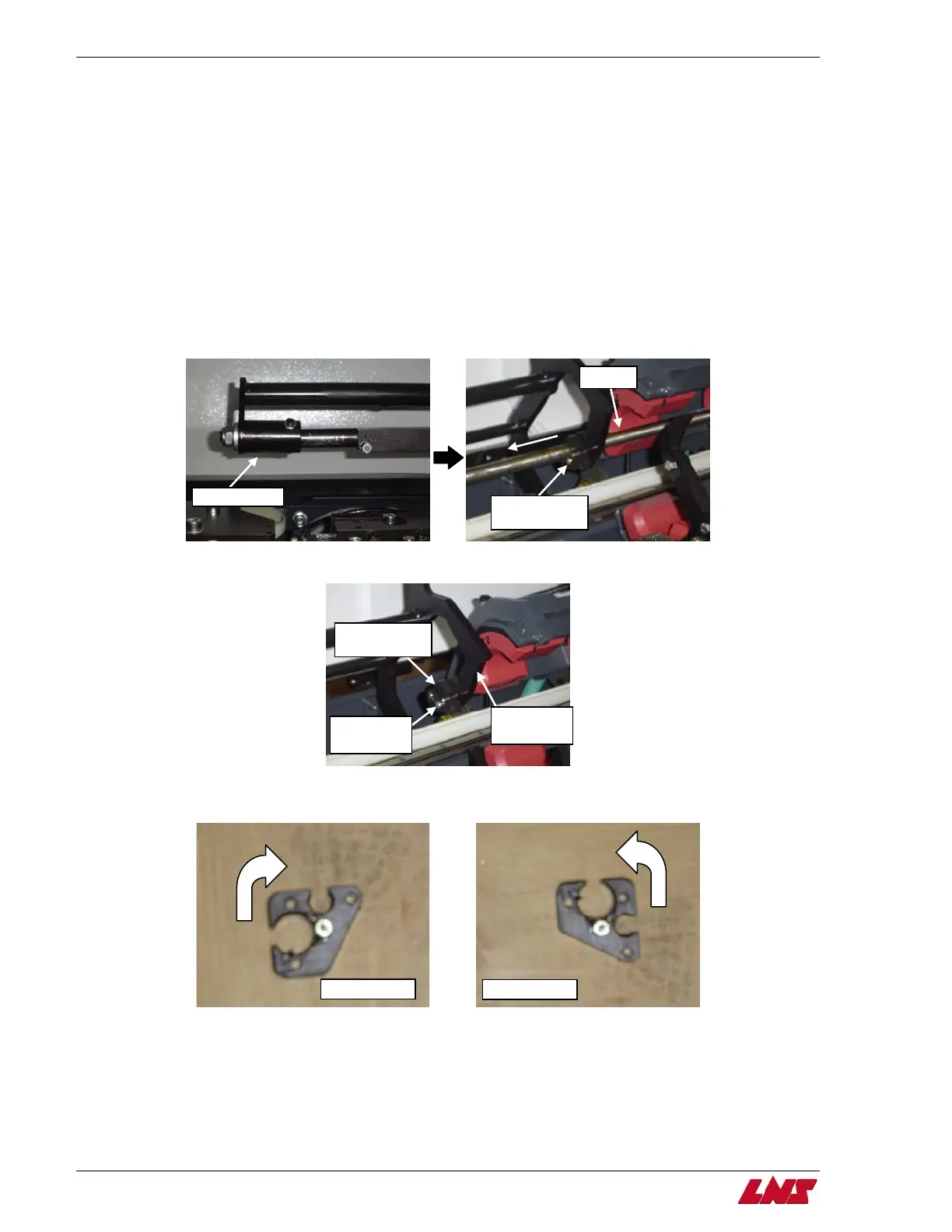

Step 1: Remove the pusher by pulling it out of the rear support and gently sliding it out of the pusher support bushing.
Pusher
Rear su
pp
ort
Pusher support
bushin
g
Step 2: Remove the pusher support bushing by loosening the 3mm bolt.
Pusher support
bushin
g
Pusher
support arm
Loosen the
3mm bolt
Step 3: Turn the pusher support bushing 90° and install it back onto the pusher support arm and tighten the 3mm bolt.
15mm → 8mm
8mm → 15mm
