3-2 Chapter 3: Procedures
QUICK SIX
Belt Tension Adjustment
This procedure is used to adjust the belt tension. After a certain amount of use, the belt may need to be tightened. When adjusting the
belt, make sure that while adjusting the belt that it remains under tension in order not to lose the reference point. If this should happen,
perform the Reference Procedure or call for service assistance.
Tools List:
• 17mm open end wrench
Procedure
Conditions:
• Main guiding channels open
• Main lid cover open
• Grid cover open

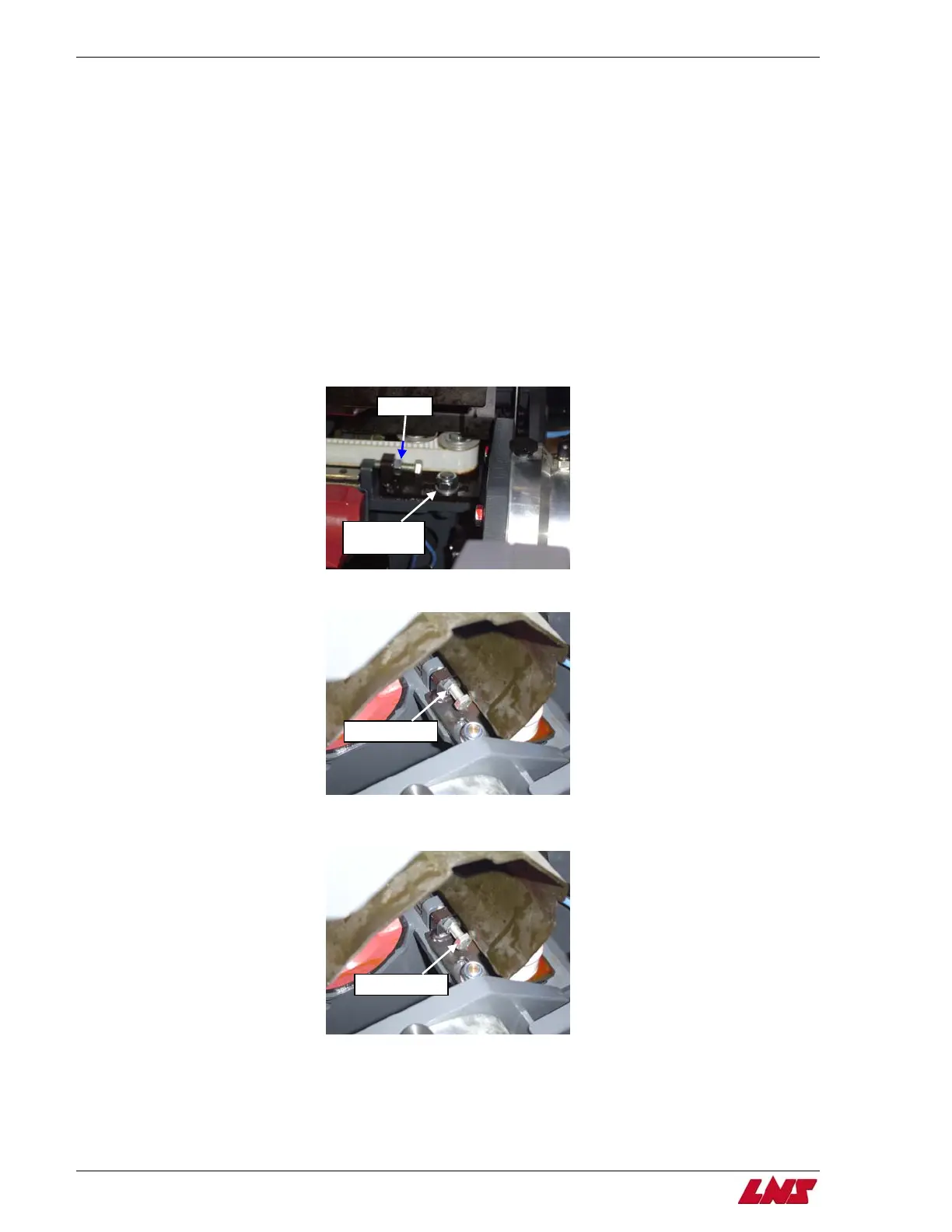

Step 5: Loosen the 17mm fixed hex nut.
Step 6: Loosen the 13mm jam nut.
Step 7: Turn the belt tensioner bolt clockwise to tighten and counter-clockwise to relieve tension. The belt should be tightened so it
does not sag, but it should be set firmly. Be careful not to over-tighten the belt. The belt tension should measure 5Nu.
Loosen fixed
hex nut
Loosen jam nut
Jam nut
Tensioner bolt
To Next Page
