Replacing Guide Elements
The purpose of this procedure is to replace the guiding elements correctly. Use the correct size of guiding elements according to the
diameter of the bar stock.
Tools List:
• Flat plated screw driver
Procedure
Conditions:
• Main guiding channels open
• Main lid cover open
• Grid cover open

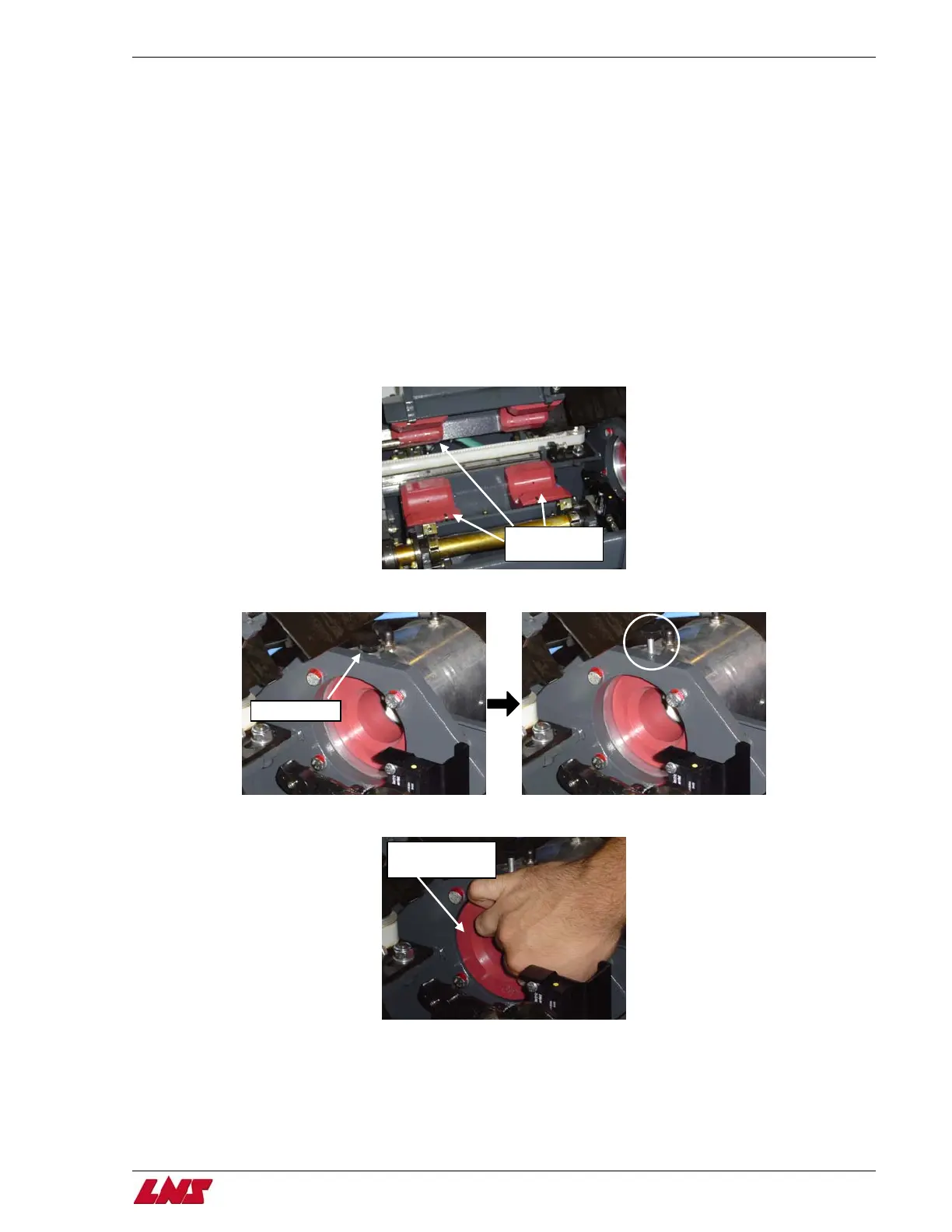

Step 1: Remove the top and bottom guiding elements from the bearing blocks.
Note: The top guiding elements may be easier to pry out using a flat plated screw driver.
Remove guiding
elements
Step 2: Loosen the thumb screw on the outboard support.
Step 3: Remove the front nose guiding element from the inside of the outboard support.
Thumb screw
Remove guiding
element
