Chapter 3: Procedures
QUICK SIX
3-9
Reference Procedure
This procedure is used for resetting the home position of the Quick Six. This parameter allows the user to purge a reference if the bar
feeder loses track of its position. BAR FEEDER LOCATION and ROTATION OF SERVO MOTOR in the BAR FEEDER SETUP
should be set prior to requesting a reference.
Procedure
Conditions:
• Main bar feed power on
• Air pressure set at 5 bar (75psi)
• Main guiding channels open
• No bar stock in the channel
• Bar feed in STOP mode

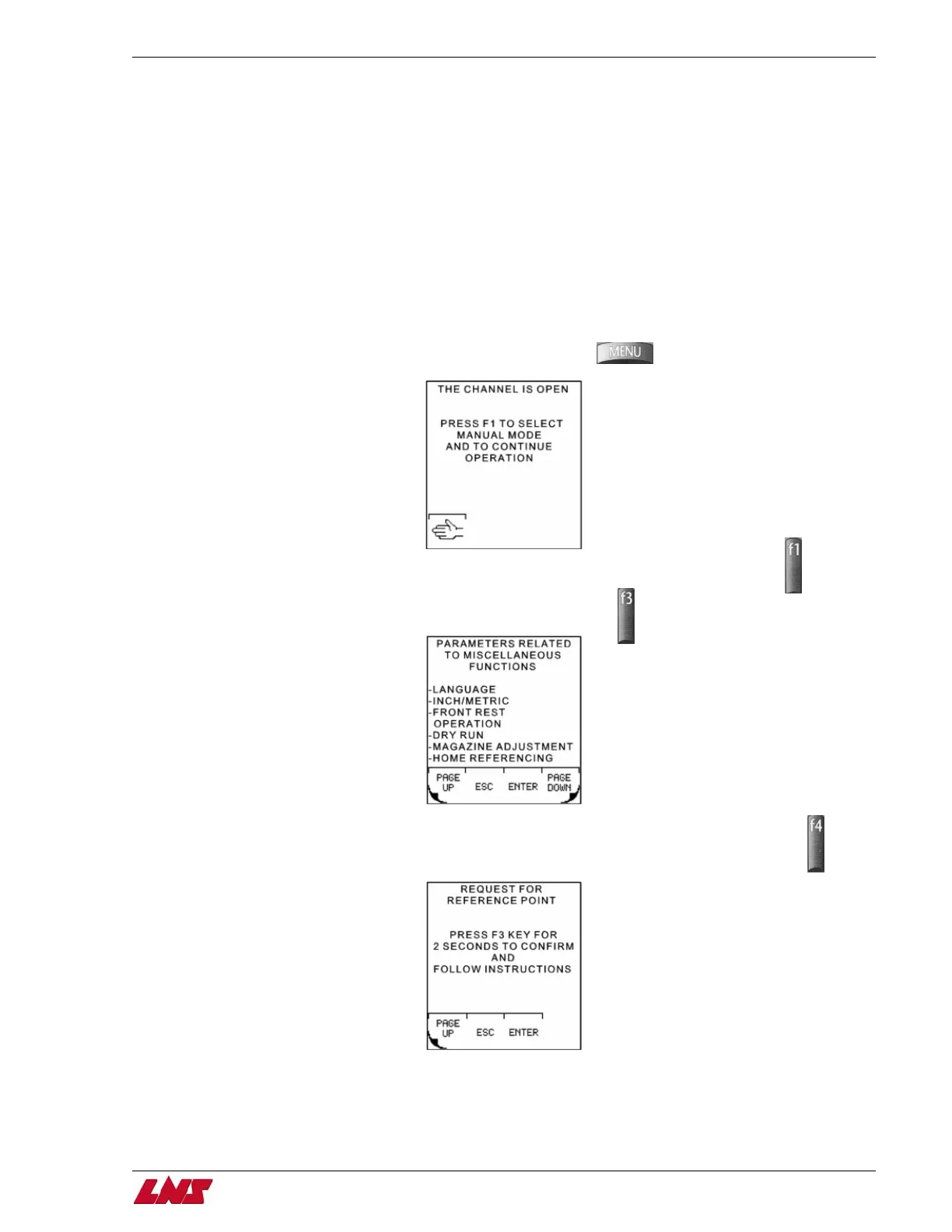

Step 1: At the HOME PAGE, press the MENU key on the remote control station.
Step 2: Press the F4 (PAGE DOWN) key on the remote control station until Parameters Related to Miscellaneous
Functions appears.
Step 3: Press the F3 (ENTER) key on the remote control station to open this menu.
Step 4: Press the F4 (PAGE DOWN) key on the remote control station until the “Request for Reference Point Settings”
option appears.
