3-8 Chapter 3: Procedures
QUICK SIX

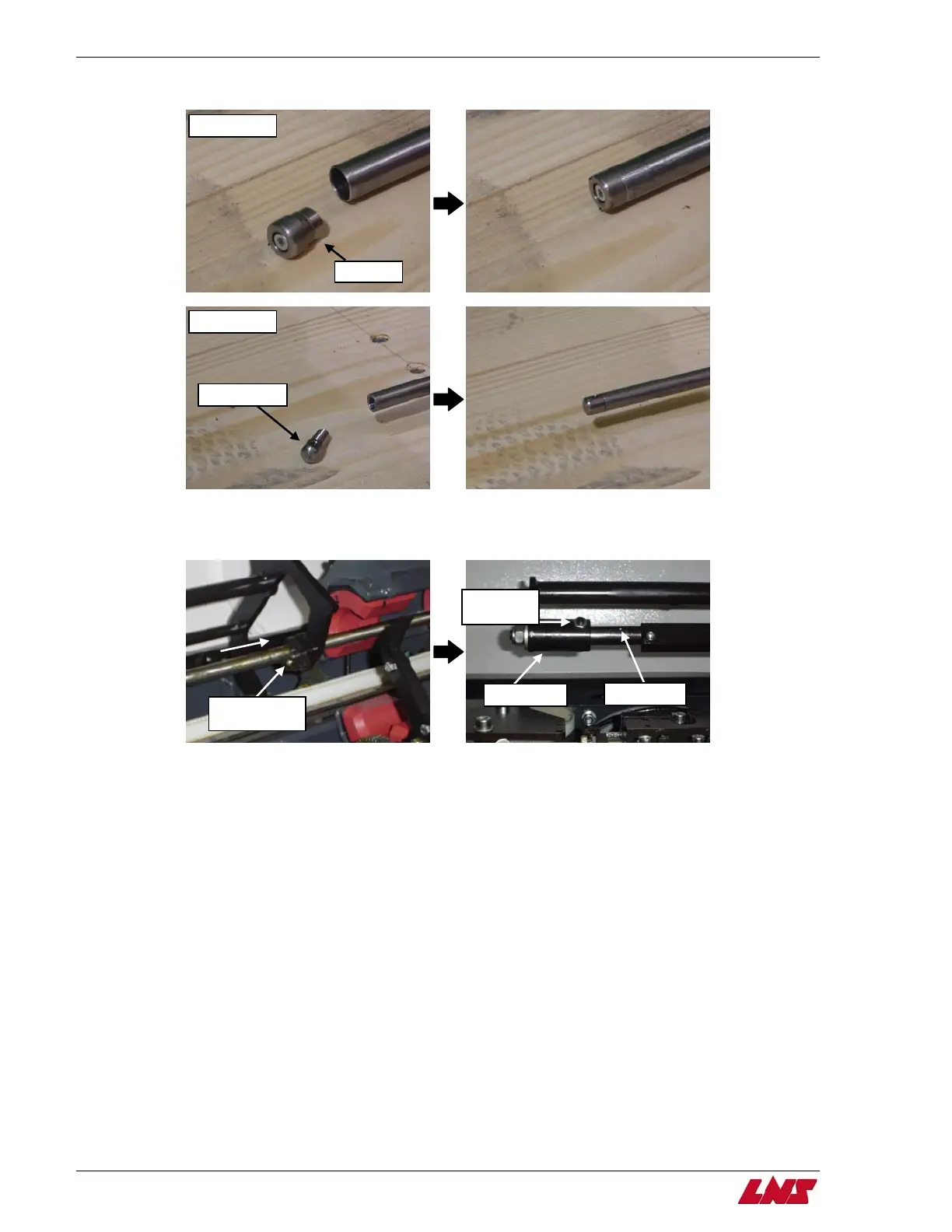

Step 8: Insert the tips back on the pushers.
15mm pusher
Install tip
8mm pusher
Install tip
Step 9: Gently slide the pusher through the pusher support bushing and insert the pusher connector into the rear support. When
inserting the pusher connector into the support, make sure that the countersink on the pusher connector is lined up with the
ball detent set screw on the rear support.
Ball detent
set screw
Rear support
Pusher support
bushin
Countersink
Procedure complete.
