48
ZENIT
YARN STRUCTURE

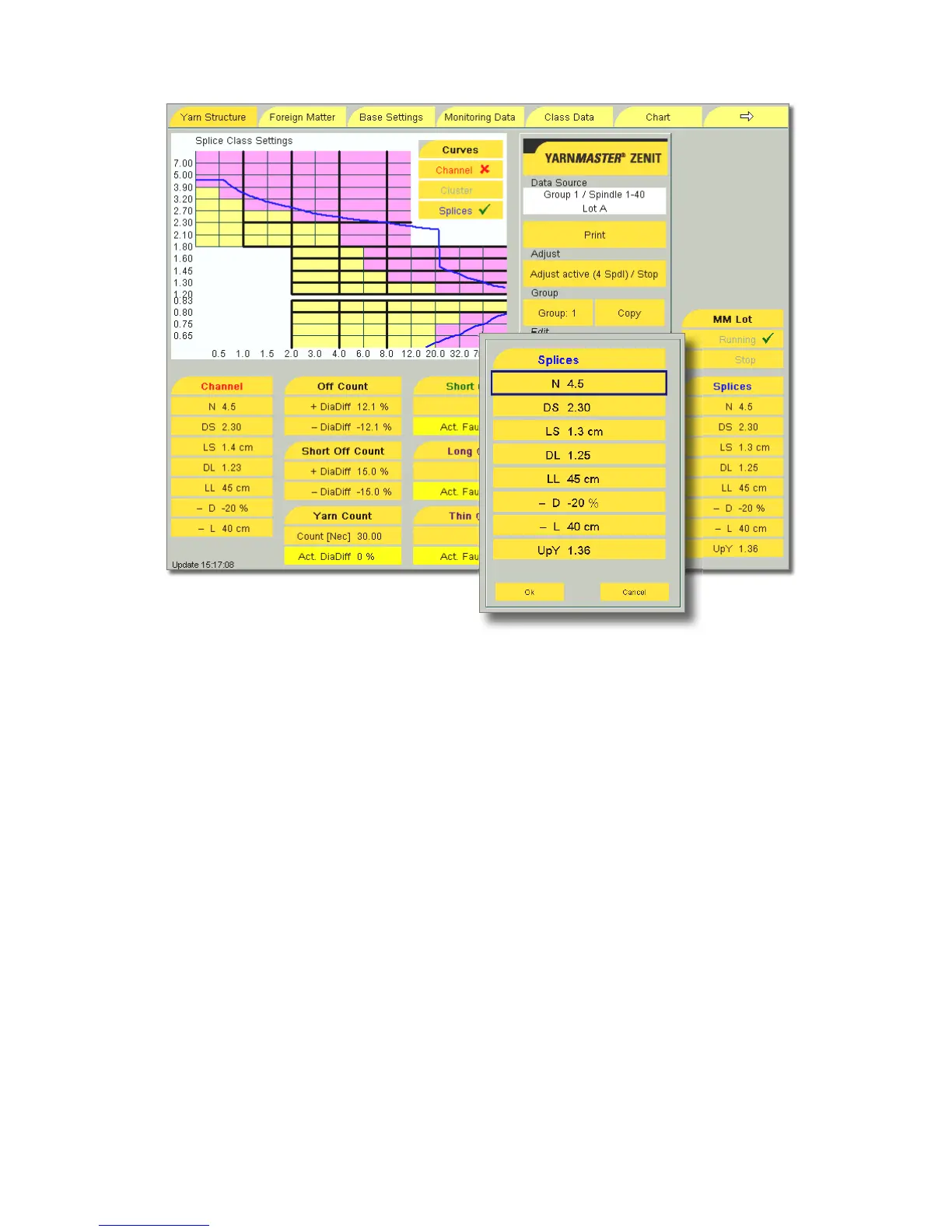

Splice
The values set here are active during the first 25 cm, i. e. in
the range where the splice runs through the sensing head.
The splice check length is automatically set to 25 cm. It can
be set in the range 0–120 cm as required. (See Configuration
menu.)
The splice check can be switched on and off in the Base Set-
tings menu.
UpY (Static Upper Yarn Detection)
In order to reliably detect a double-yarn of the cone, UpY must
not be set higher than 1.36 (36% diameter increase). This
setting should be checked and perhaps modified at yarn ma-
terial change.
Coarse Yarn Limitation
See page 42.
