ZENIT
55
FOREIGN MATTER

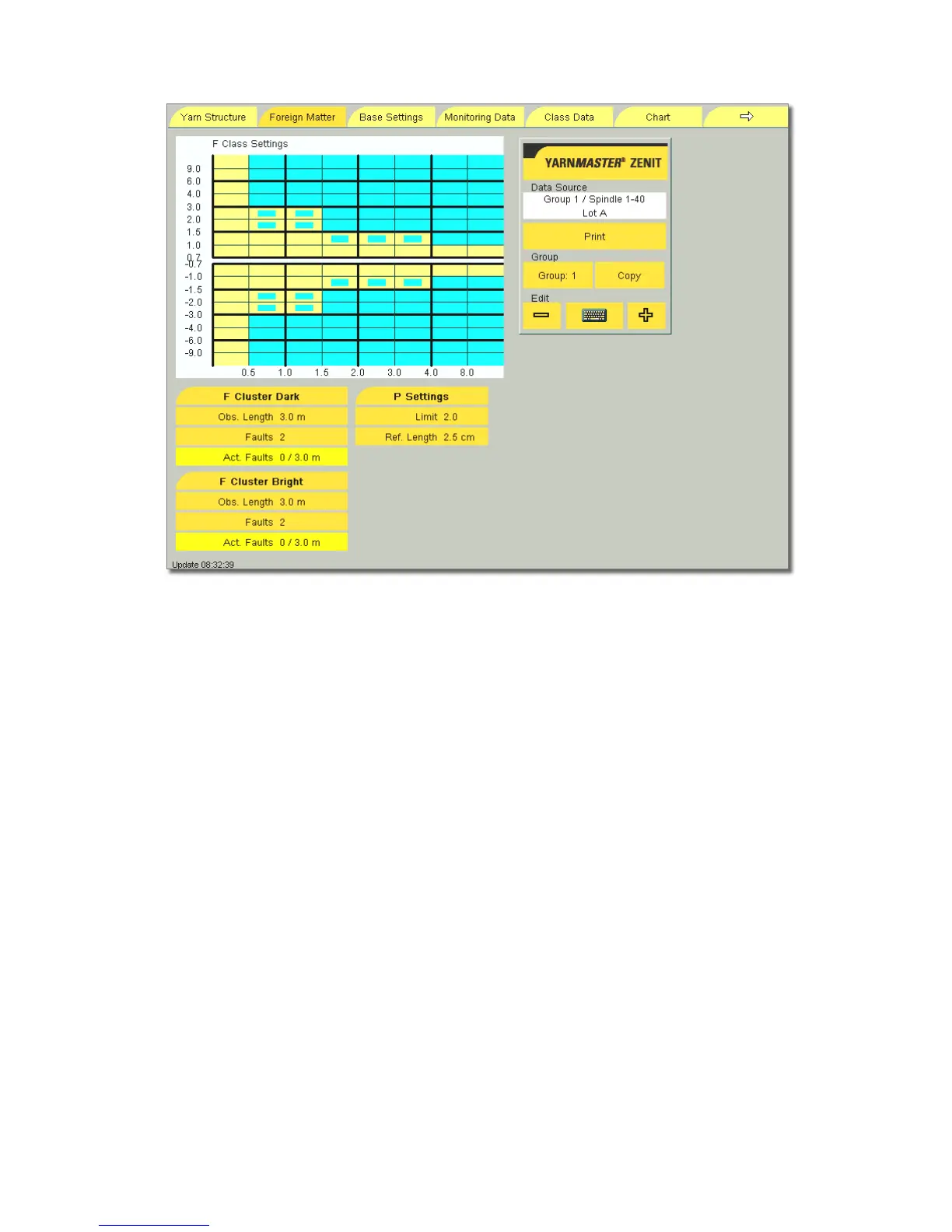

P Settings
With the TK YM ZENIT FP sensing head, it is possible to de-
tect synthetic foreign matter, e. g. polypropylene, polyamide
(nylon).
!
To ensure the function of the P Sensor, the yarn to be
wound must not be wet.
Note : Existing YarnMaster Zenit F equipment can be retrofit-
ted by mounting the P sensor on the sensing head.
Limit
The limit (0.5-9.9) determines the sensitivity of P Clearing.
The setting must be adapted according to type and charac-
teristics of the yarn to be processed.
!
During the splice check, the P Sensor is switched
to“insensitive”.
Ref. Length
TK FP C 0.5 – 4.0 cm
TK FP C P2 1.0– 8.0 cm
The reference length is used to set the fault length of the for-
eign matter to be detected.
Setting examples (Guide values)
TK FP C
Insensitive setting Limit: 3.0 Ref. Length: 2.5
Sensitive setting Limit: 2.0 Ref. Length: 2.0
TK FP C P2
Insensitive setting Limit: 8.0 Ref. Length: 2.0
Sensitive setting Limit: 4.0 Ref. Length: 2.0
