Loepfe YarnMaster Zenit - Sensing Head Display (7-Segment Display); Mounting of P-Sensors

ZENIT
77
SERVICE FUNCTIONS
CLEARER COMPONENTS AND FUNCTION

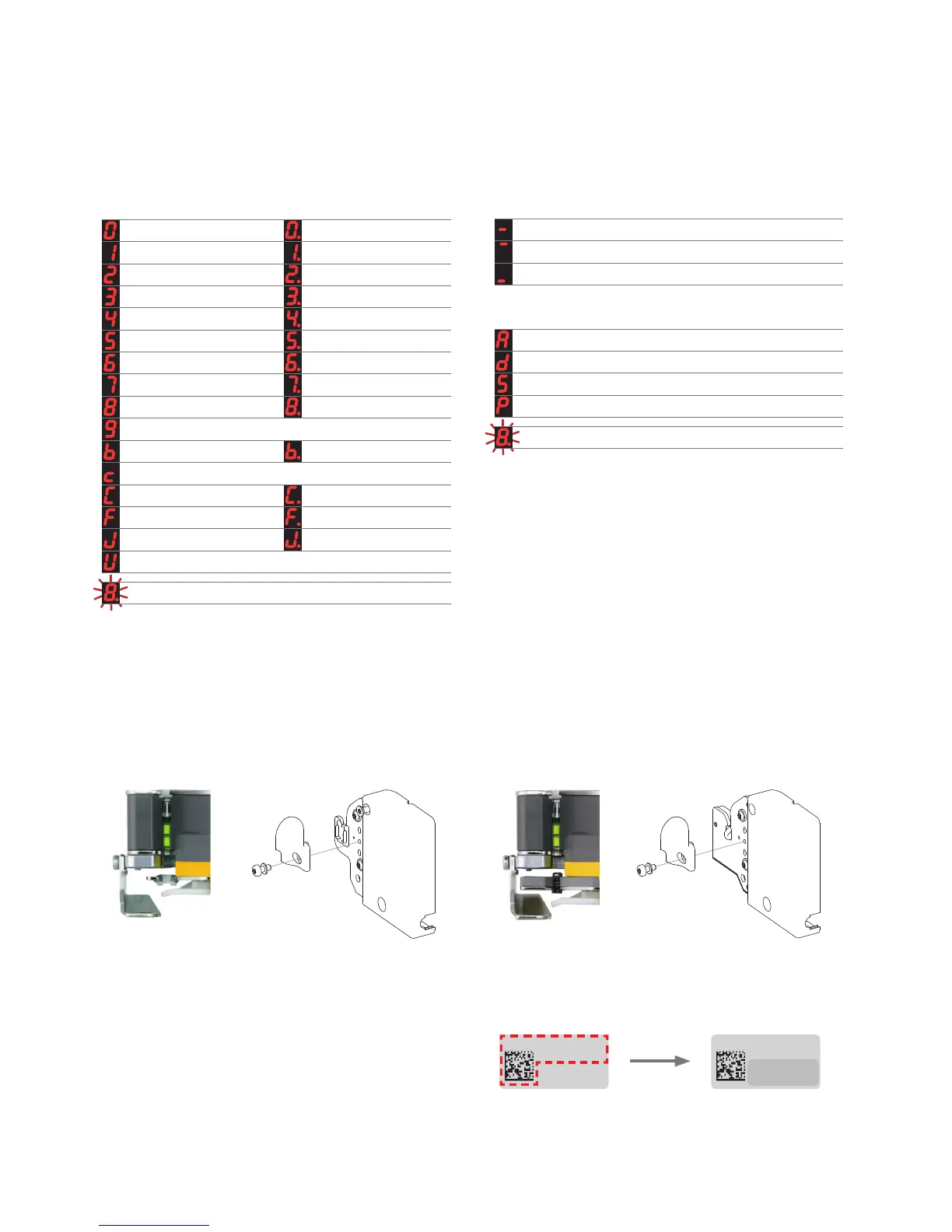

Mounting of P-Sensors
Existing YarnMaster Zenit F equipment can be retrofitted by
mounting the P-Sensor onto the sensing head.
With P-SensorWithout P-Sensor
Sensing Head Display (7-Segment Display)
.
•
Replace cover with yarn guide plate
by cover with P sensor.
•
New article number After retrofitting to P, the supplied
label must be stuck over the article number.
MASTERS IN TEXTILE QUALITY CONTROL
MASTERS IN TEXTILE QUALITY CONTROL
System Additional
Nep (Channel) Nep (Class)
Short (Channel) Short (Class)
Long (Channel) Long (Class)
Thin (Channel) Thin (Class)
Short Count plus Short Count minus
OffCount plus OffCount minus
SFI/D plus SFI/D minus
F (Foreign matter) dark F bright
P (Synthetics)
Bunch DBunch
VCV plus
Cluster short Cluster long or thin
F Cluster dark F Cluster bright
Joint (Splice) S or N Joint (Splice) L or T
Upper Yarn
flashing light indicates ALARM CUT TYPE
Sensing head YarnMaster ZENIT
Cut type
045200/003e
Tastkopf alle Sprachen 93x137.indd 1 6.10.2009 10:21:21 Uhr
MASTERS IN TEXTILE QUALITY CONTROL
MASTERS IN TEXTILE QUALITY CONTROL
Yarn runs - Diameter difference < +/- 5%
Yarn runs - Diameter difference > + 5%
Yarn runs - Diameter difference > - 5%
Adjust is running
Doffing (cone change)
Start signal standby (during power on)
Parameter standby (during StartUp)
alternating light indicates TECHNICAL ALARM
User defined Display
See “Display TK” at central unit.
Initial Setting
All display information on this code table correspond to initial manufacturing settings
only (default values are marked with an asterisk
*
)
System Info
Spindle
Tastkopf alle Sprachen 93x137.indd 2 6.10.2009 10:21:21 Uhr
TK YM ZENIT F C SOP
130156 0011 0410
4021.4677.27
045601.030
TK YM ZENIT F C SOP
130156 0011 0410
4021.4677.27
045601.030
4021.4677.29
+P 045602.020
Caution: Do not attach labels to the marked area!
