Loepfe YarnMaster Zenit - F Clearing Data; Splice Classification Data

62
ZENIT
CLASS DATA
F Clearing Data
YarnMaster Zenit F classifies all yarn faults in every group and
for every spindle.
No clearing data are displayed in class BS1. This is due to the
high sensitivity of this class.

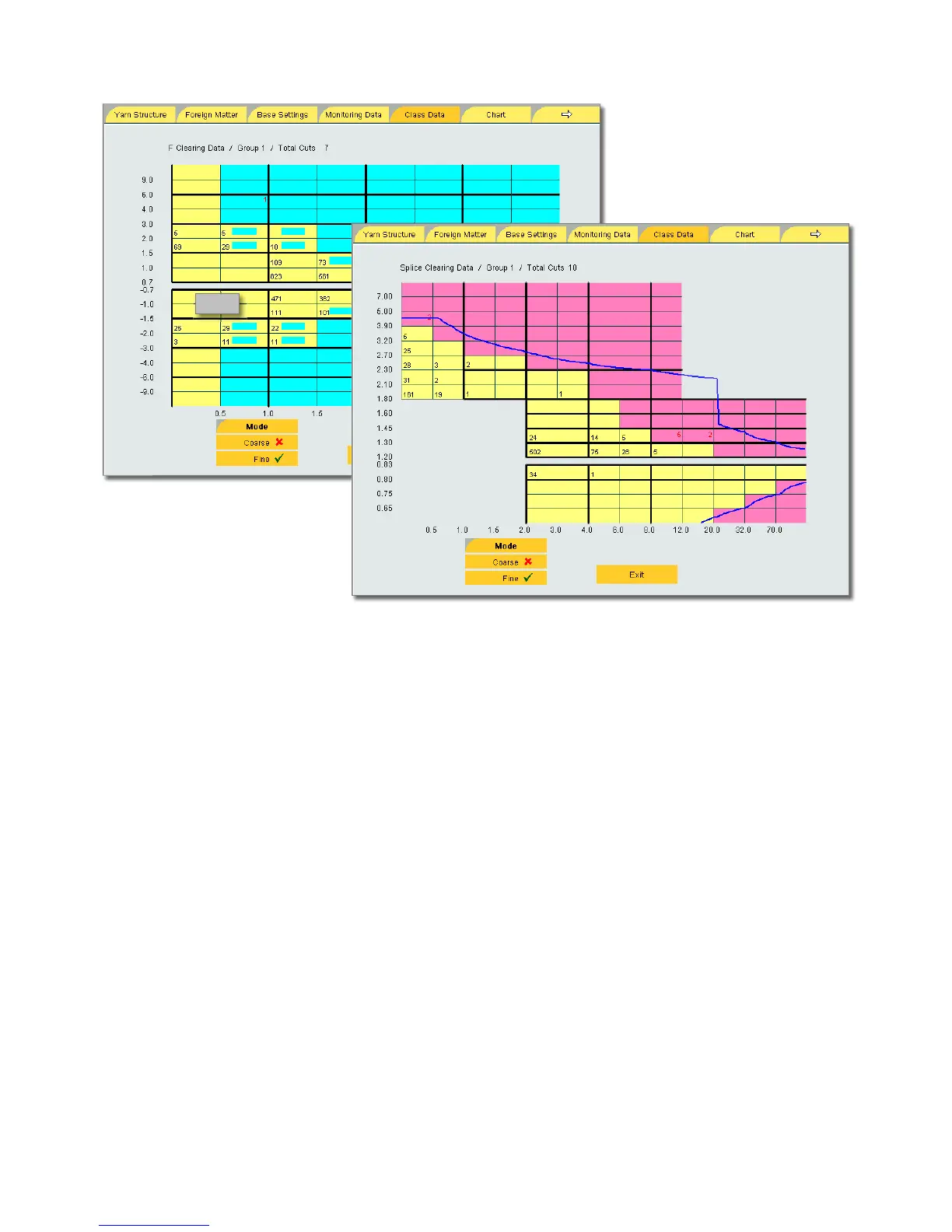

Splice Classification Data
The classification data are acquired in a special coarse clas-
sification raster optimized for splices.
For the first 0 – 120 cm in which the splice runs through the
sensing head (splice check length), the splices are displayed
in the respective position.
The setting of the splice check length can be changed as re-
quired in the Configuration menu.
BS1
