Front Panel

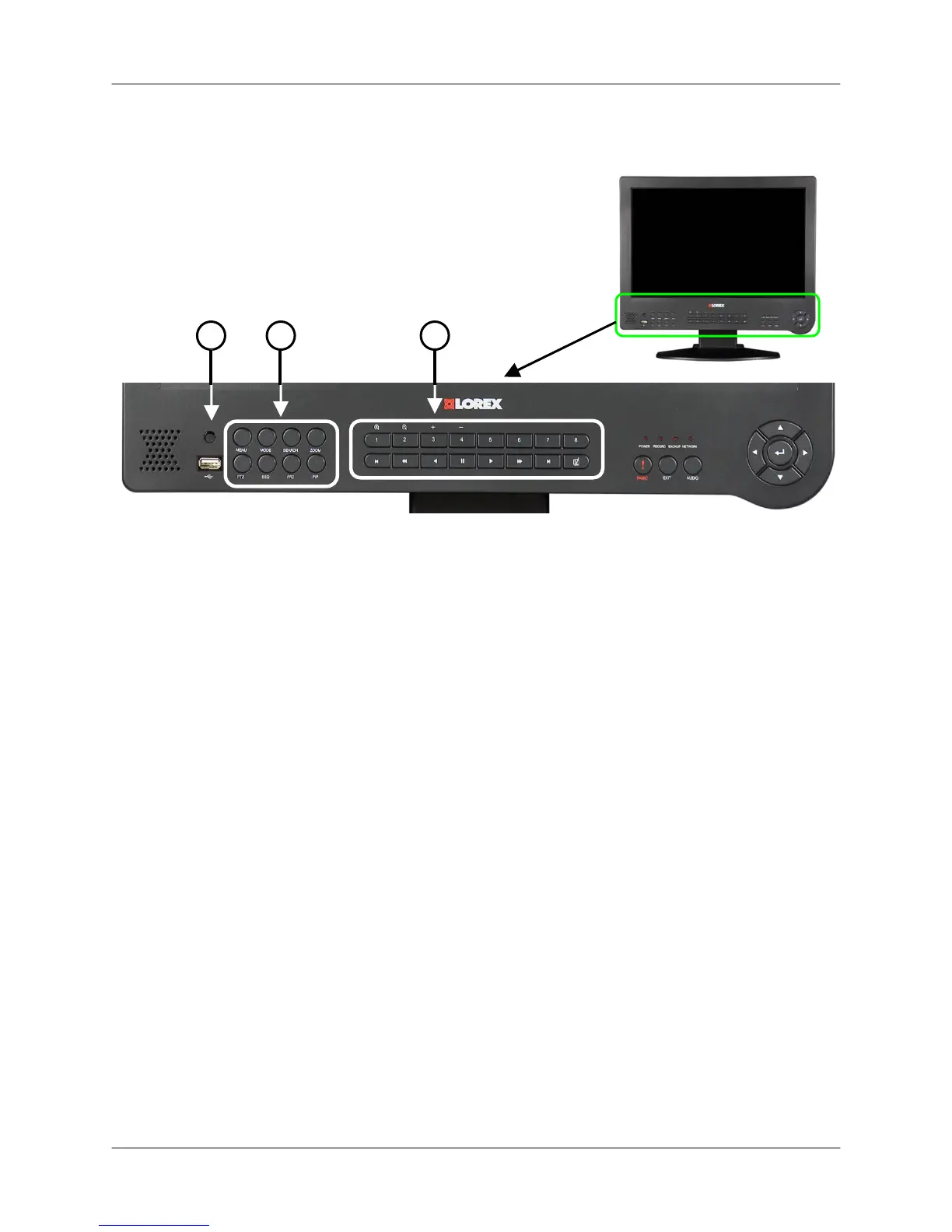

1. IR Sensor: Receives the infrared signal from the remote control.
2. Function Buttons: The left set of function buttons consist of the following:
• Menu: Press to enter the System Main Menu; press and hold to power off the
monitor.
• Mode: Switch between screen displays – full-screen, quad, and split-screen view.
• Search: Search for recorded video on the HDD.
• Zoom: Zoom in/out of an image using digital zoom.
• PTZ: Open the control menu for Pan, Tilt, Zoom – a PTZ camera (not included)
must be connected to the system to make use of the PTZ menu.
• SEQ: Activate sequence function in any display mode.
• FRZ: Freeze live image.
• PIP: Picture-in-Picture mode.
3. Numeric Keypad and Playback Buttons*:
• 1~8: Press to view each channel of the system in full-screen mode.
• 1+: In PTZ Mode: zoom in.
• 2-: In PTZ Mode: zoom out.
• 3+: In PTZ Mode, channel up.
• 4-: In PTZ Mode, channel down.
4
8-channel model shown
2 3 1
*Only on L19WD800. 16-button numeric keypad found on L19WD1600.
