Using the System
42

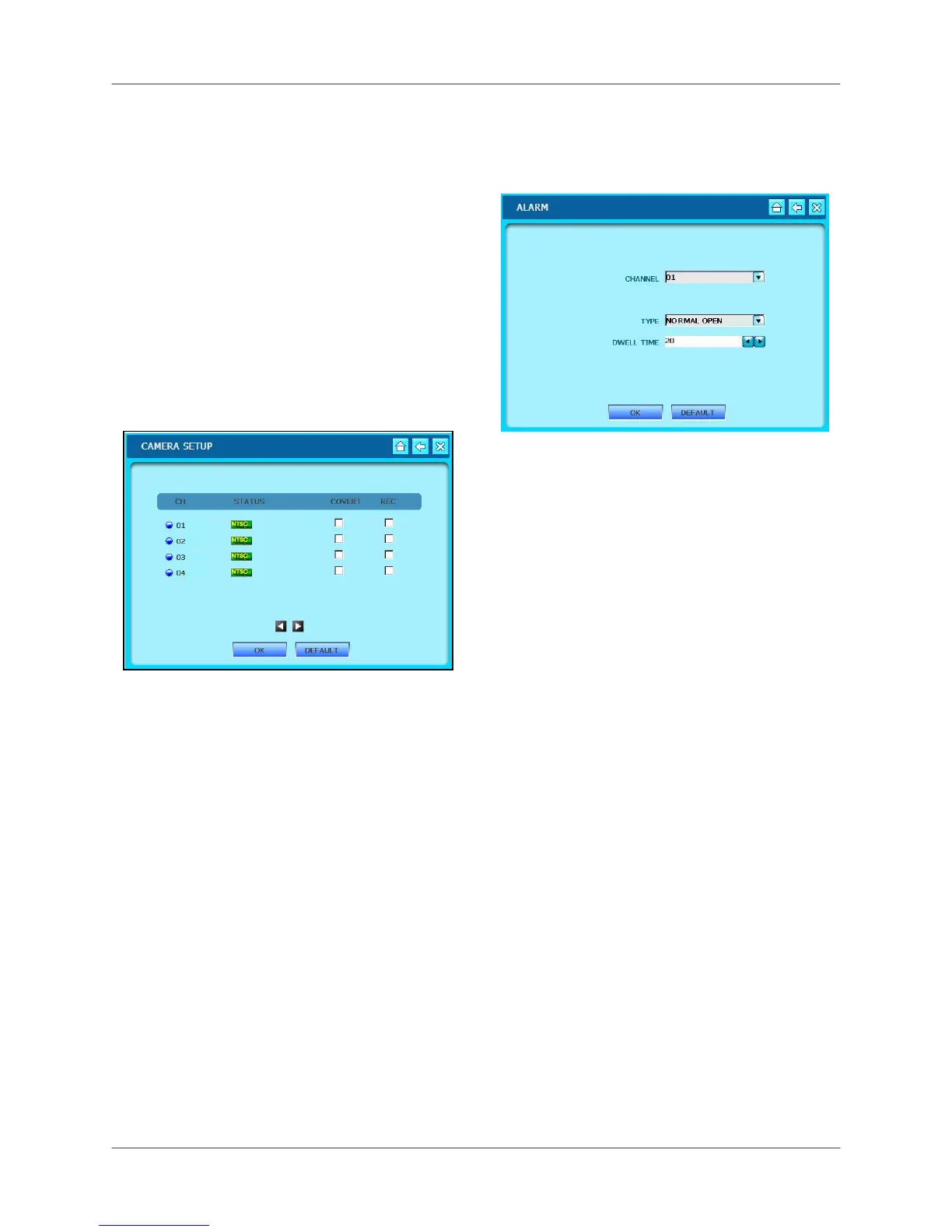

CAMERA SETUP
View the type of cameras (NTSC/PAL) or if
there is no camera connected (icon of a
grey camera).
Disable Record if you want to use a
camera only for observation.
Covert turns the onscreen display of the
camera ON/OFF. Covert cameras continue
to record, though the image is not
displayed onscreen. Use this feature if the
Monitor is located in a public area and a
camera should not be displayed (e.g. a
camera in a cash-count room or above a
cash register).
To set Covert and Record:
Mouse:
1. Check the boxes in the Covert or
Record columns to enable these
functions on cameras 1-4.
2. Click ◄► at the bottom of the
window to cycle between groups of
cameras.
Remote Control:
1. Press ◄► to select boxes in the
Covert and Record columns.
2. Press OK to check the box.
3. Press ◄► to select the arrows at
the bottom of the screen and press
OK to cycle between groups of
cameras.
Click OK to save your settings, or click
DEFAULT to restore factory defaults.
ALARM
Configure settings for an external Alarm
Sensor.
To configure Alarm settings:
Mouse:
1. Click the Channel drop-down menu to
select a channel to display the Alarm
notification.
2. Click the Type drop-down menu to
select either NORMAL OPEN,
NORMAL CLOSED, or OFF.
3. Click ◄► to set the DWELL TIME (in
seconds) for the alarm notification. The
higher the dwell time, the longer the
alarm notification remains on the
selected alarm channel.
Remote Control:
1. Press ◄► to select the CHANNEL
drop-down menu and press ▲▼ to
select a specific channel for alarm
notification.
2. Press ◄► to select the Type drop-
down menu and press ▲▼ to select
either NORMAL-OPEN, NORMAL-
CLOSED, or OFF.
3. Press ◄► to select the DWELL TIME
text field and press ▲▼ to increase or
decrease the Dwell Time.
Click OK to save your settings, or click
DEFAULT to restore factory defaults.
