22 The GS550 System

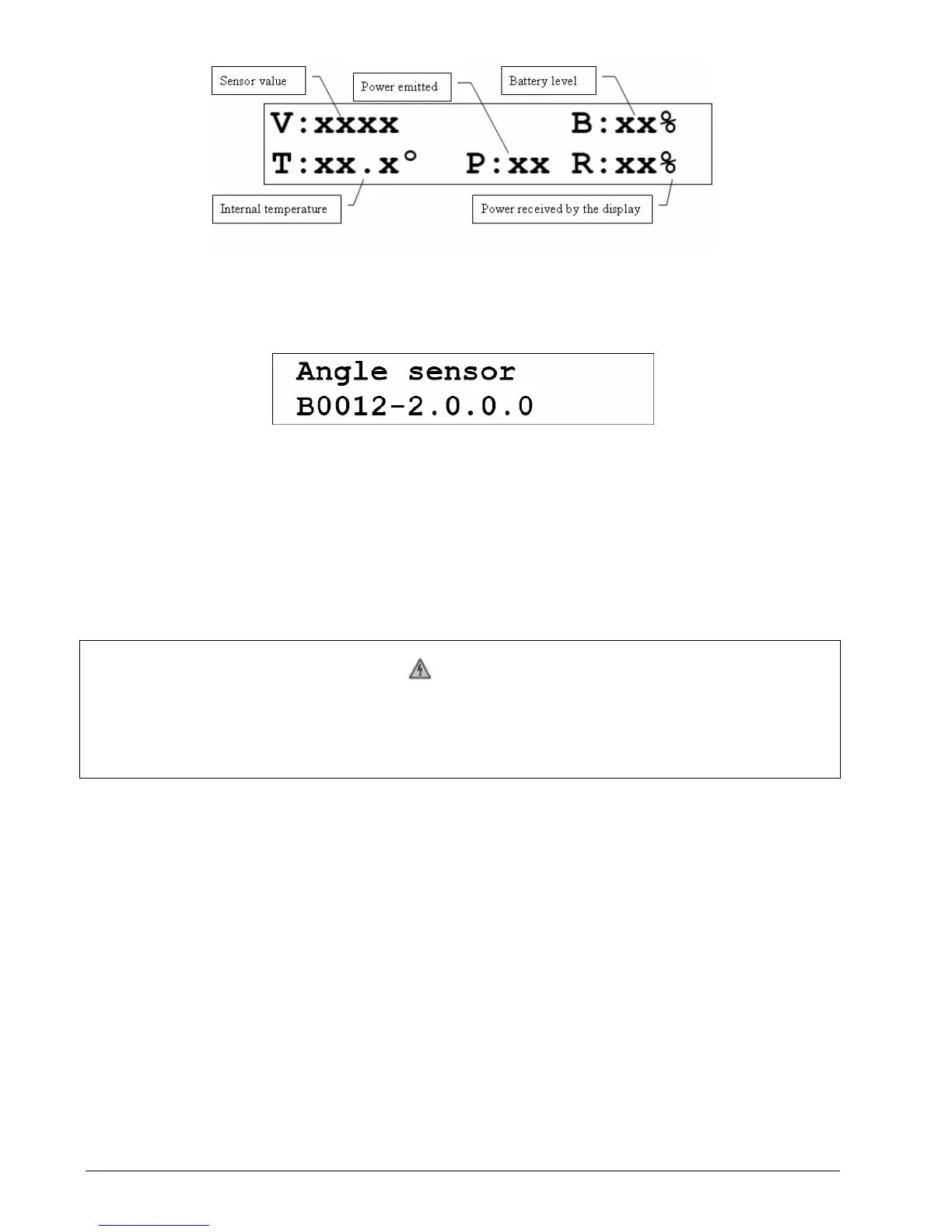

Figure 8 Sensor Diagnostic Data
4. Press Enter to get the sensor firmware product and version numbers (see Figure 9).
Figure 9 Sensor Firmware Product And Version Numbers
5. Press Exit five times to return to the operation display.
2.5.2 Radio Network Diagnostic
1. Press Menu and Back.
2. Press Enter, Next, and then Enter to go to menu 5B1) Radio network background noise.
Warning!
The "list of last 32 sensors received" includes all functioning GS series sensors within
range. Programming a GS550 display for sensors from a different system will disable that
system and render indication by both systems inaccurate.
3. Press Next to go to menu 5B2) List last 32 sensors received.
a. Press Enter to access 5B21), the list of the last 32 sensors received. Sensors are
shown with their radio id number and the sensor type.
b. Use Up and Down to scroll through the list.
c. Press Exit to return to menu 5B2)
4. Press Next to go to menu 5B3) Search for sensors.
a. Press Enter to launch a sensor search. After searching, the display automatically re-
verts to 5B21), the list of the last 32 sensors received (see step 3.a).
5. Press Next to go to menu 5B4) Bit error rate communication test. This test should only be
conducted by LSI technical service personnel.
6. Press Exit three times to return to the operation display.
2.5.3 Lockout Diagnostic
1. Press Menu and Back.
