LSI GS550 Master User Manual

42 The GS550 System
5. Verify the rope payout indicated matches the actual length of wire rope paid out. If not then
follow Rope Payout Calibration Procedure № 2.
2.10.3 Rope Payout Calibration Procedure № 2: Correct with the GS550
If rope payout indicated does not match actual rope payout, and if it is not possible to easily correct
by following Rope Payout Calibration Procedure № 1, then follow this procedure. This procedure
requires hoisting up to fully reel in the wire rope, and then hoisting down to pay out a known length
of wire rope. For accurate calibration the “known length” paid out must be accurately measured.
1. Press Menu, and then Next three times to go to menu 4) Installation (see Figure 22).

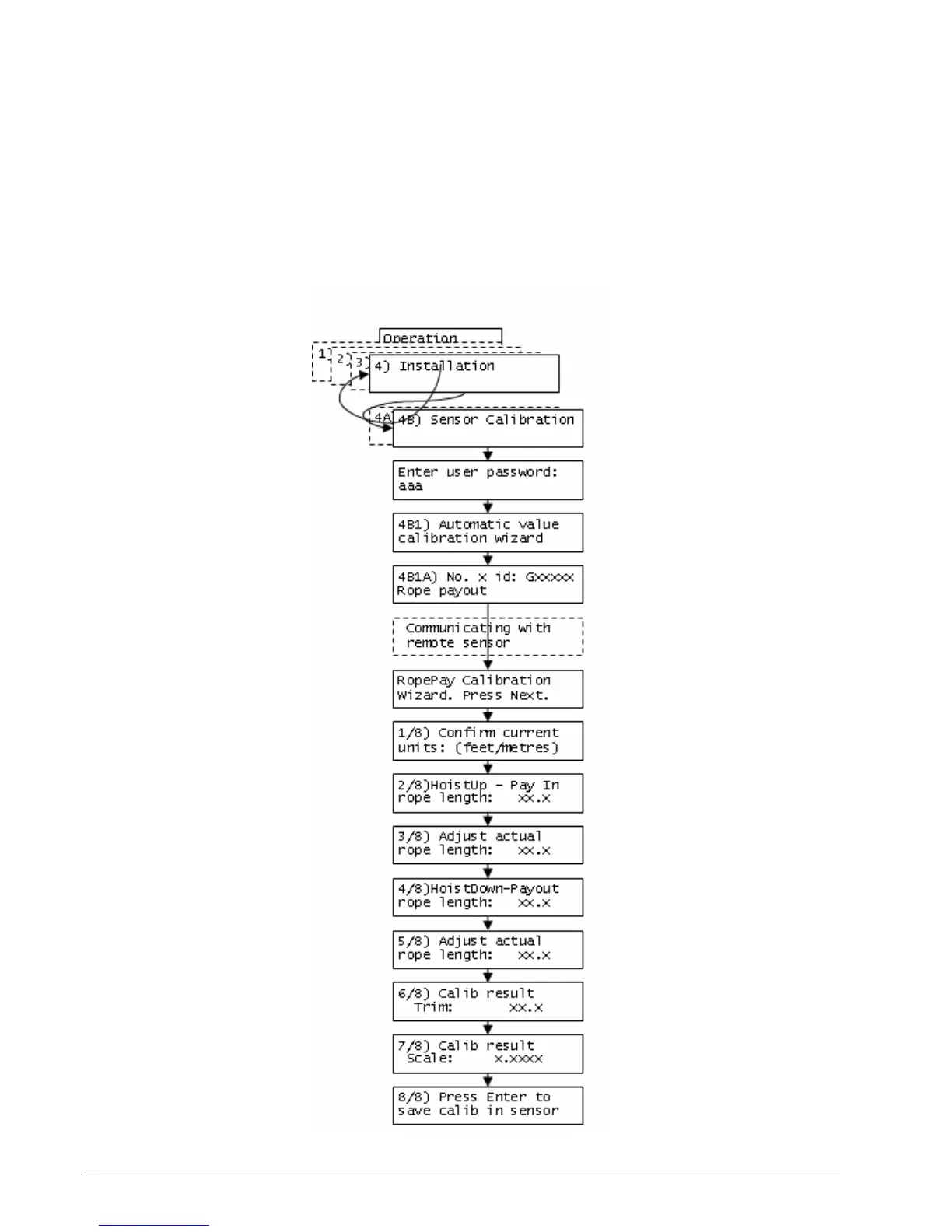

Figure 22 Rope Payout Calibration
