LSI GS550 Master User Manual

2. Operation 25
Figure 10 Angle Calibration Procedure N
o
2
2.5.9 Boom Length Calibration Procedure № 1: Mechanical Set-Up

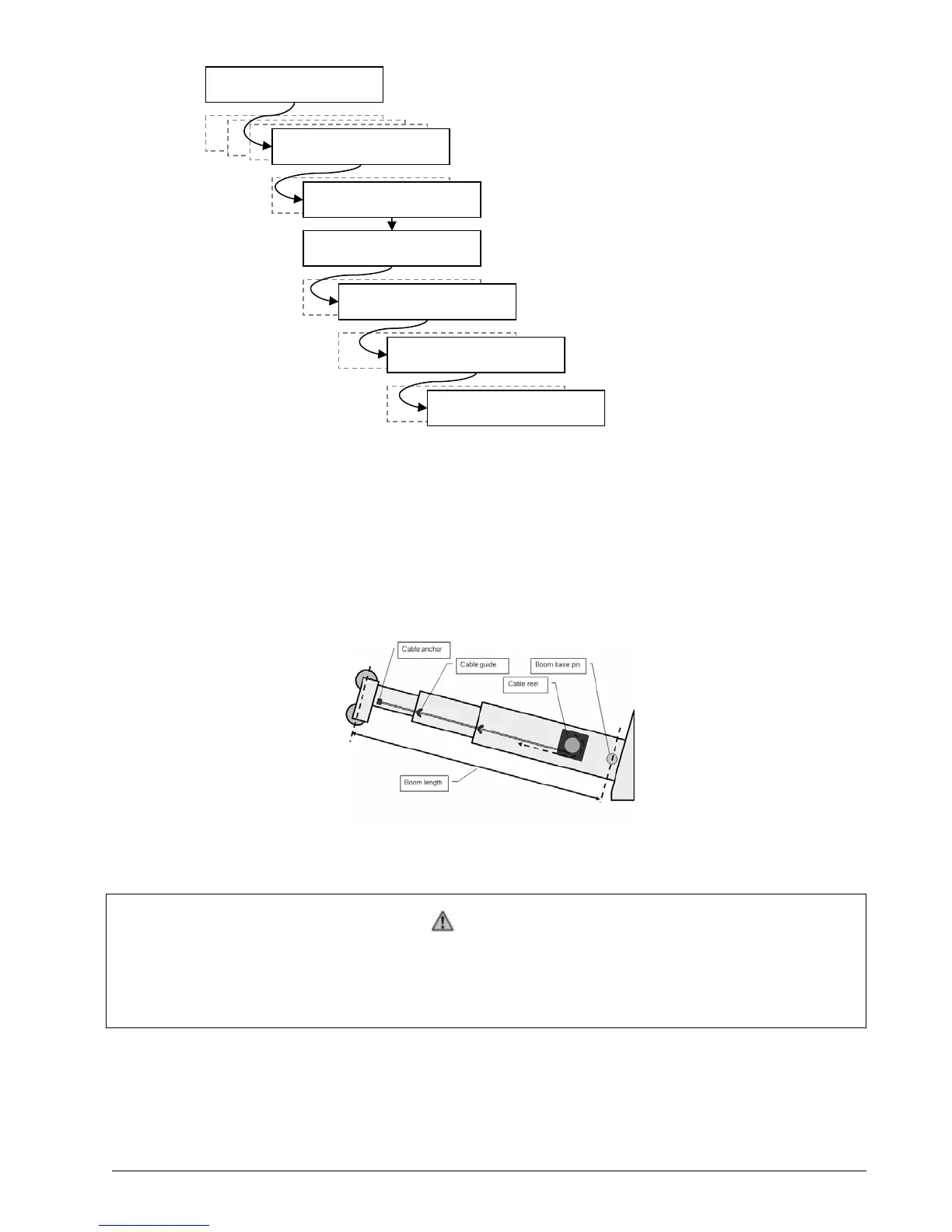

Figure 11 shows the actual boom length.
Figure 11 Actual Boom Length
Important!
Monitor length sensor cable length remaining as the boom is extended for the first time
with the installed cable reel. This generally requires a second person (in addition to the
operator).
1. Fully retract the boom
2. Adjust the loose wire rope at the boom tip so that the displayed boom length matches the
actual boom length.
3. Fully extend the boom
4B2A) No. x id: Gxxxxx
Load sensor
Heartbeat 60
Up/Down, Enter->Save
Trim: 0.0
Up/Down, Enter->Save
4A) Sensor List
1) Parts of Line
Operation Display
2) Crane Rigging
3) Display Settings
4) Installation
4B) Sensor Calibration
Enter user password:
aaa
4B1) Automatic value
calibration wizard
4B2) Manual parameter
calibration
4B2A) No. x id: Gxxxxx
Angle sensor
