3. Portable Download Tool 55
3.3 Trouble Shooting PDA Communication Issues
Copy to a PDA when using several PDAs with the same PC
1. Transfer a firmware to a PDA
a. In the Explorer window, right-click the file. Then, select “Send To”… and “PDA Quick
Install” (see Figure 32).
b. Or… double-click the firmware received in an email.

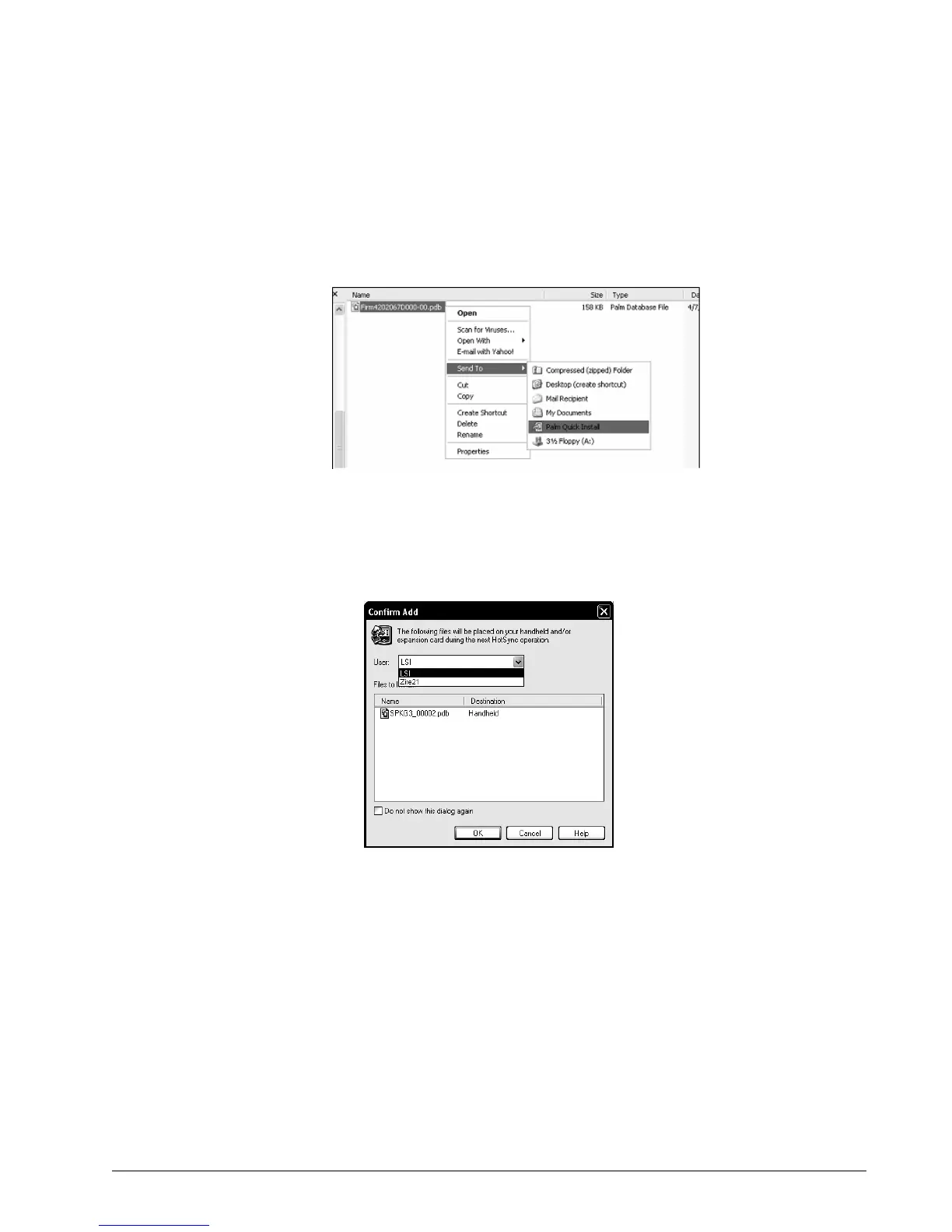

Figure 32 Send To Menu
2. Usually a window will pop up to confirm the addition of this file to the list of files to be trans-
ferred to a PDA. Verify the “User” in this window. Two or more “users” may be configured to the
PC (see Figure 33).
Figure 33 Two User Name Example On The Same PC
Verify PDA memory.
1. Power up the PDA. With the plastic pen, press on the Home icon on the lower left side of the
screen to see the time of day on the upper left.
2. Press on the time of day, a menu should pop up, press on <Info…> in this menu. A page will
show how much free memory is available on the PDA.
Example: 1.1M means 1.1 megabytes, equates to 1100 kb (kilobytes). Each GS550 firm-
ware uses more than 140 kb of memory. If there is not enough memory left, verify if some
applications or data logger files could be removed.
Note: A firmware with crane capacity charts may require more memory.
