Recipe management

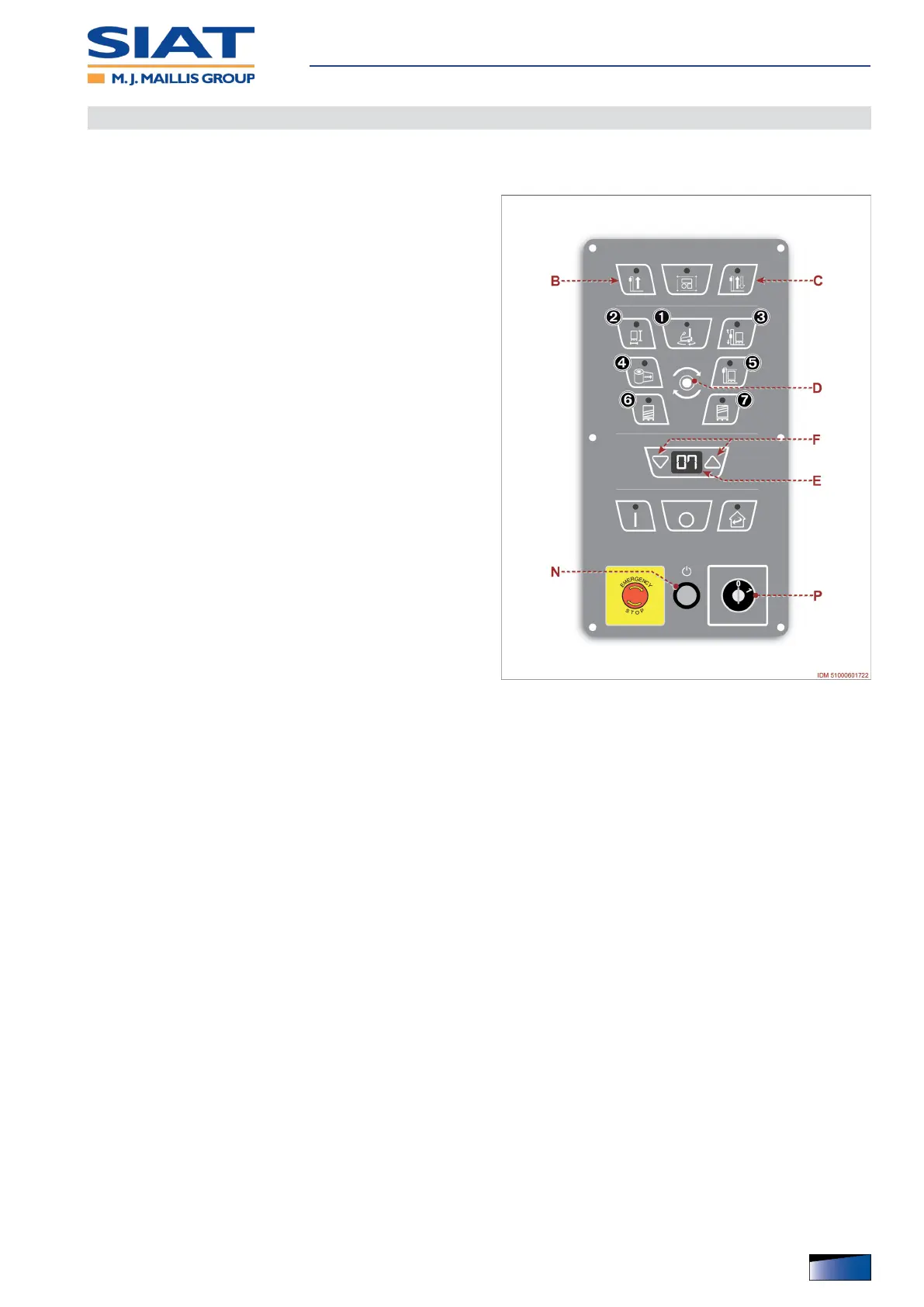

The gure shows the points of intervention and the description shows the proce-
dures to be adopted.
– The described procedures refer to how to modify and/
or activate a recipe.
▀
Modifying a recipe
1. Rotate selector P to position “1” (ON) in order to acti-
vate the battery power supply.
– The pilot light of button N turns on.
2. Press the push-button N.
– The pilot light of button N turns off.
– The number of the last used recipe appears on display
E.
3. Select the wrapping of interest by means of one of but-
tons B-C.
4. Keep button D pressed (about 5 seconds) in order to
enable programming.
5. Press one of buttons F to select the number of the rec-
ipe to be modied.
6. Set up all parameters of recipe one at a time.
7. Press control D repeatedly and release it when the
LED corresponding to the desired icon turns on.
– The value of the selected parameter appears on dis-
play E.
8. Press one of buttons F to modify the value.
– With the parameter Ê selected: the number shown refers to a value scale from 0 to
10.
– With parameter Ë selected: the displayed value refers to the diameter or height of the
load to be wrapped.
- Diameter of the load to be wrapped: from 0,8 to 0,9 metre
- Height of the load to be wrapped: from 0,6 to 2,6 metre
– With parameters Ì selected: the number shown refers to a value scale from 0 to 9.
– With parameters Í selected: the number shown refers to a value scale from 0 to 99.
– With the parameter Î selected: the number shown refers to the time expressed in
seconds (from 0 to 9.9).
– With the parameters Ï - Ð selected: the number shown refers to the number of rev-
olutions to be performed for the reinforcing wrappings (from 0 to 10).
