Reel holding carriages
66
IDM 510-006-5
English language Operation and maintenance manual
Reel holding carriage (FM)
▀

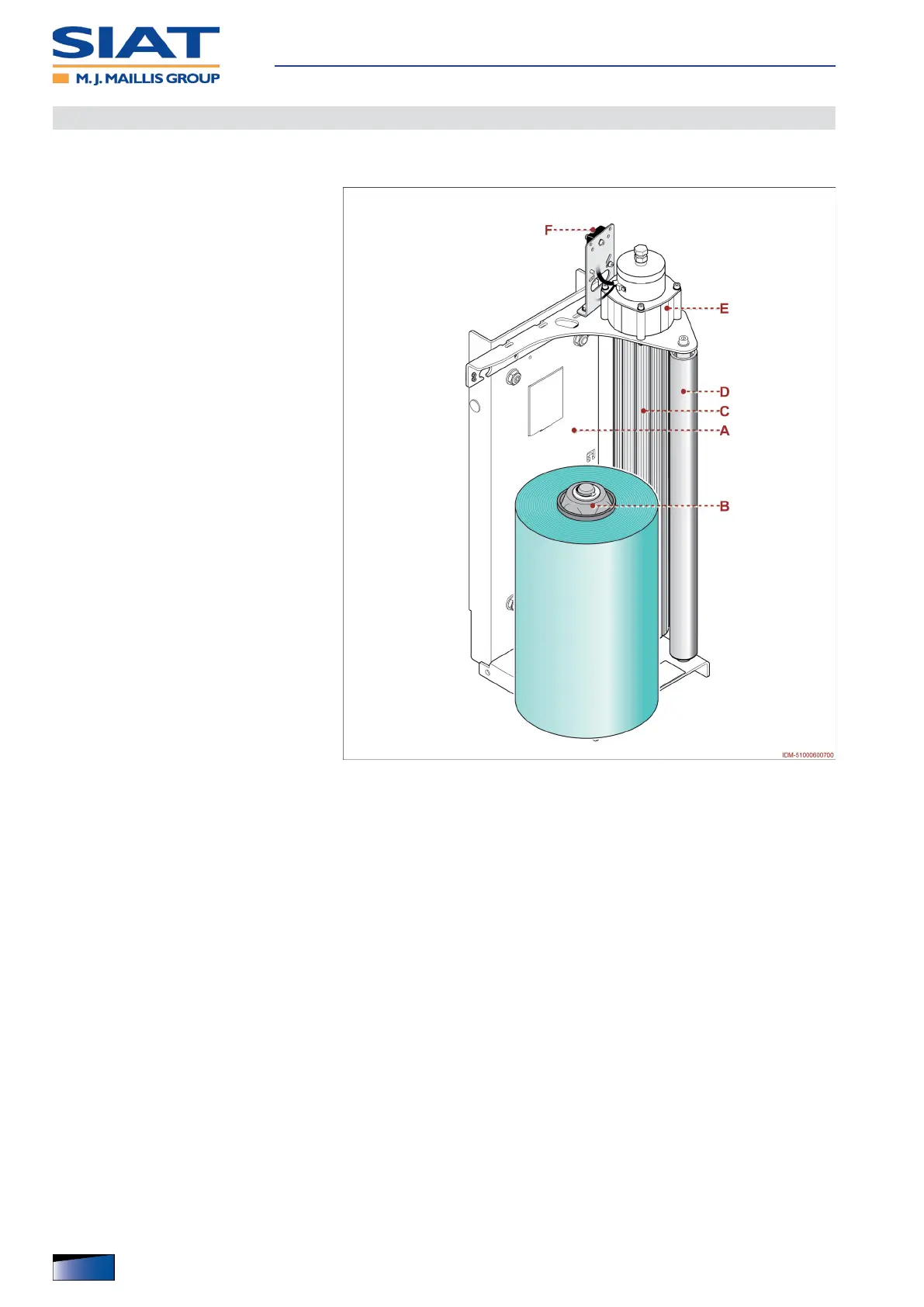

Main components
A) Structure: it is equipped with wheels
for vertical shifting of carriage on col-
umn.
– In the structure a fall arrest system is
installed, which stops the carriage in
case of lifting belt failure.
B) Reel holder: it is equipped with
braking system to avoid reel unwind-
ing.
C) Roller: designed to tension the lm.
– Roller is coated with inserts in order
to ensure lm pulling during wrap-
ping.
D) Roller (idle)
E) Electromechanical brake: device
that adjusts the tension of the lm.
F) Photocell: it detects the presence
and the height of the load to be
wrapped in order to stop the upward
movement of reel holding carriage.
– On request, a “black” version of the
photocell can be supplied, specical-
ly designed to detect wrapped items
or products with a prevalence of dark
surfaces.
