Reel holding carriages
English languageOperation and maintenance manual
▀
Adjustment of brake
– The operation must be carried out by the maintenance technician or by person-
nel with suitable competences, skills and knowledge.
– Make sure to full the required requirements in order to work under safe condi-
tions.
– This service should be carried out with the reel holding carriage lowered and the
machine safely at a stop.

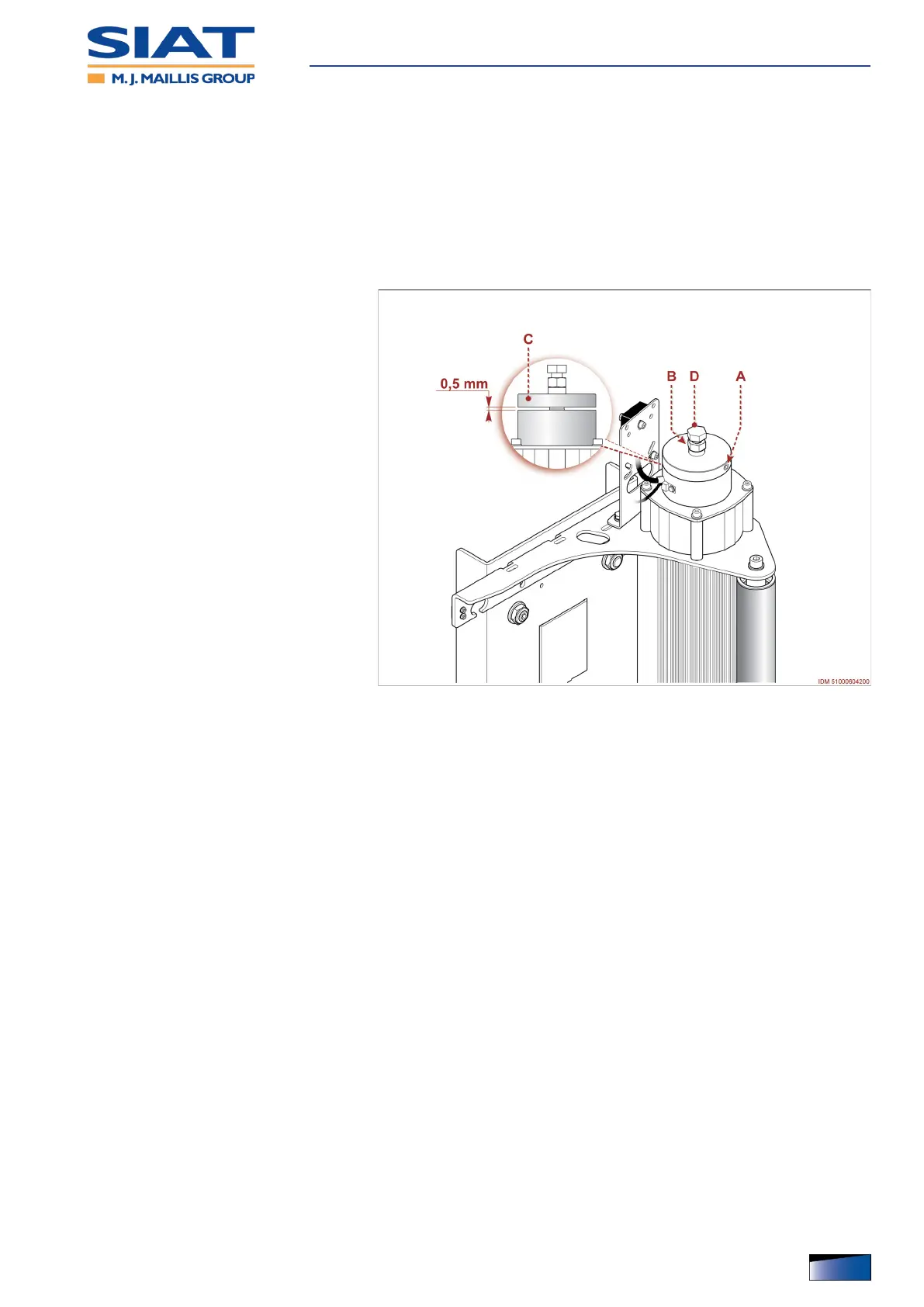

1. Loosen the screw A.
2. Loosen the lock nut B.
3. Insert thickness gauge (thickness0,5
mm) under disc C.
4. Keep disc C in proper position and
regulate screw D to adjust brake.
– Clockwise: the distance gets higher.
– Counter clockwise: distance gets
shorter.
5. Tighten lock nut B.
6. Tighten the screw A.
– At the end of operations, check
that there are no tools or other
material near the moving parts or
in dangerous areas.
