75
IDM 510-006-5
Reel holding carriages
English languageOperation and maintenance manual

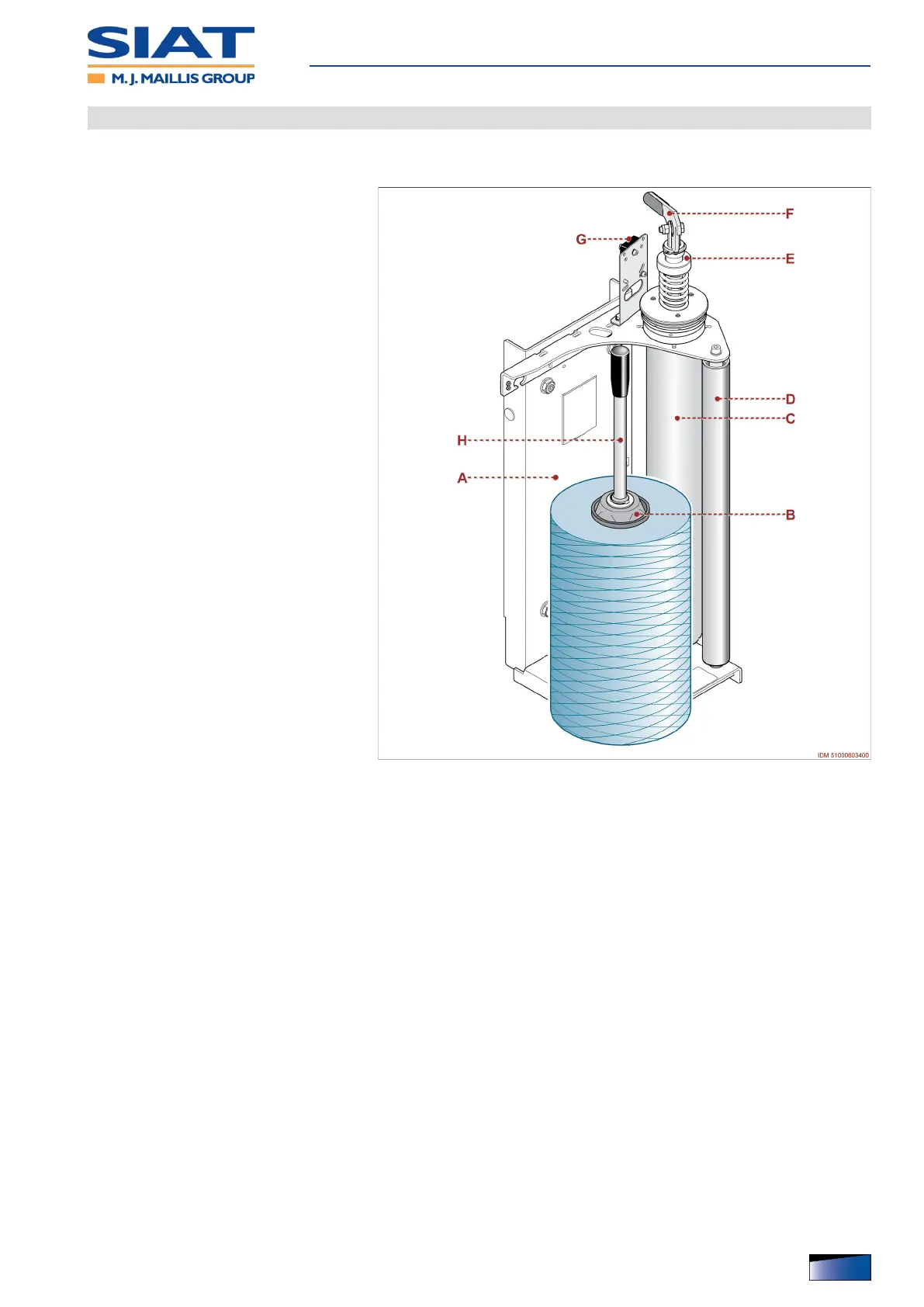

Net-type reel holder carriage
▀
Main components
A) Structure: it is equipped with wheels
for vertical shifting of carriage on col-
umn.
– In the structure a fall arrest system is
installed, which stops the carriage in
case of lifting belt failure.
B) Reel holder: it is equipped with
braking system to avoid reel unwind-
ing.
C) Roller: it tightens the net.
D) Roller (idle)
E) Ring: this device is used to adjust
the tightening of net.
F) Lever: device used to disengage the
roller C.
G) Photocell: it detects the presence
and the height of the load to be
wrapped in order to stop the upward
movement of reel holding carriage.
– On request, a “black” version of the
photocell can be supplied, specical-
ly designed to detect wrapped items
or products with a prevalence of dark
surfaces.
H) Lever: control to be rotated to adjust
the braking degree.
– Clockwise: the value increases.
– Anti-clockwise: the value decreases.
