IDM 510-006-5
Reel holding carriages
English languageOperation and maintenance manual
▀
Cleaning and replacement of brake disc
– The operation must be carried out by the maintenance technician or by person-
nel with suitable competences, skills and knowledge.
– Make sure to full the required requirements in order to work under safe condi-
tions.
– This service should be carried out with the reel holding carriage lowered and the
machine safely at a stop.

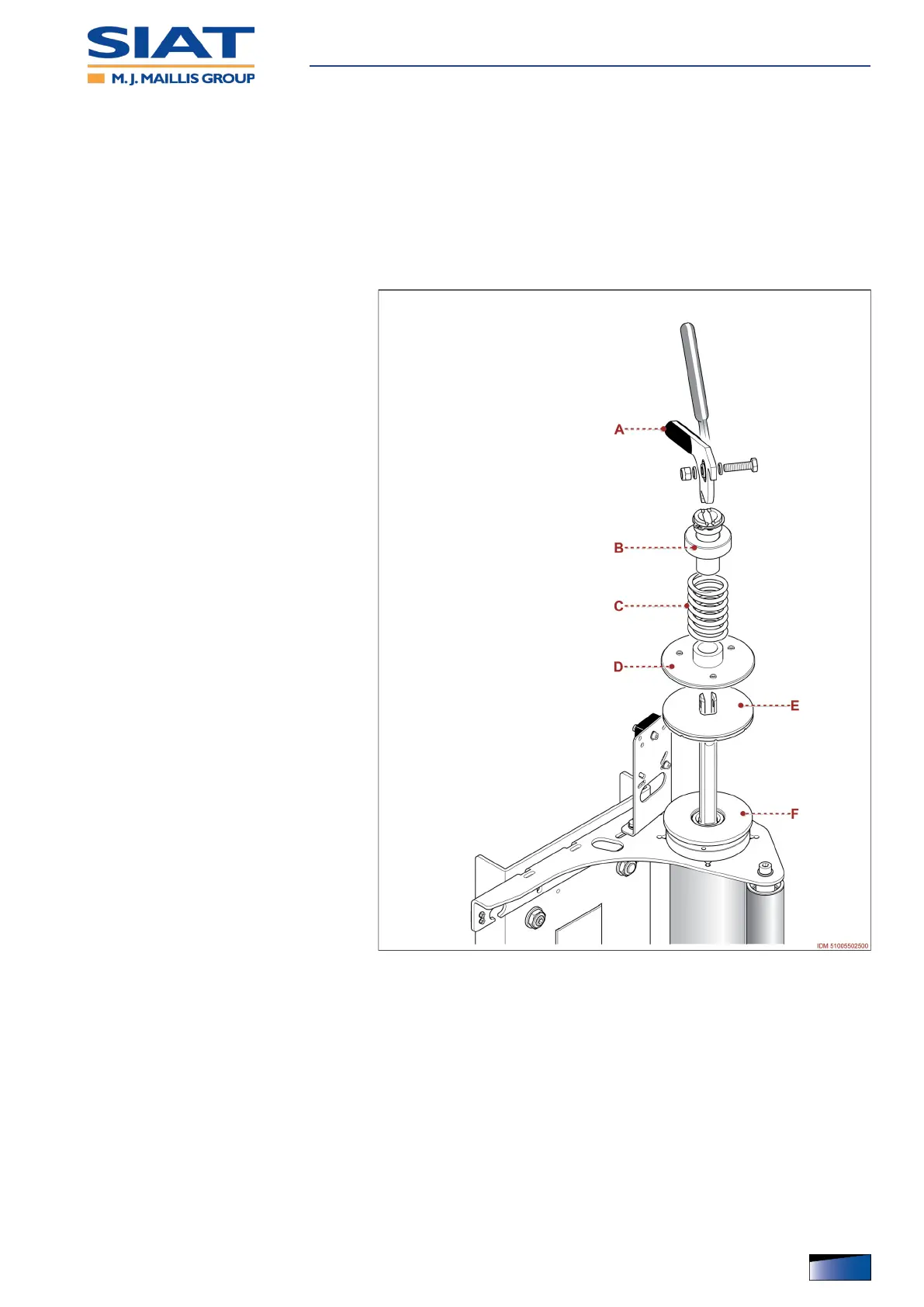

1. Lift the lever A to its vertical position.
2. Remove the fastening elements and
remove the lever.
3. Remove in a sequence the compo-
nents B-C-D-E.
4. Clean the contact surfaces of the
brake discs E-F.
5. Check the wear level of the friction
material of the disc E.
– In the case of excessive wear, re-
place the component.
6. Install the disc E with the friction ma-
terial facing downwards.
7. Install in a sequence the compo-
nents D-C-B.
8. Engage the lever A in a vertical posi-
tion and insert the fastening ele-
ments.
9. Lower the lever to its horizontal posi-
tion.
– At the end of operations, check
that there are no tools or other
material near the moving parts or
in dangerous areas.
