Maintenance
56
IDM 510-006-5
English language Operation and maintenance manual
How to adjust the feeler
Before commissioning, check that roller feeler is next to the upper surface of the
pallet.
– If the pallet is smaller than the load to be wrapped, roller feeler C must be positioned
on the lowest side of the load.
The support area must be sufciently regular to allow roller feeler to rotate proper-
ly.
– The solution is valid also for the double wheel feeler.

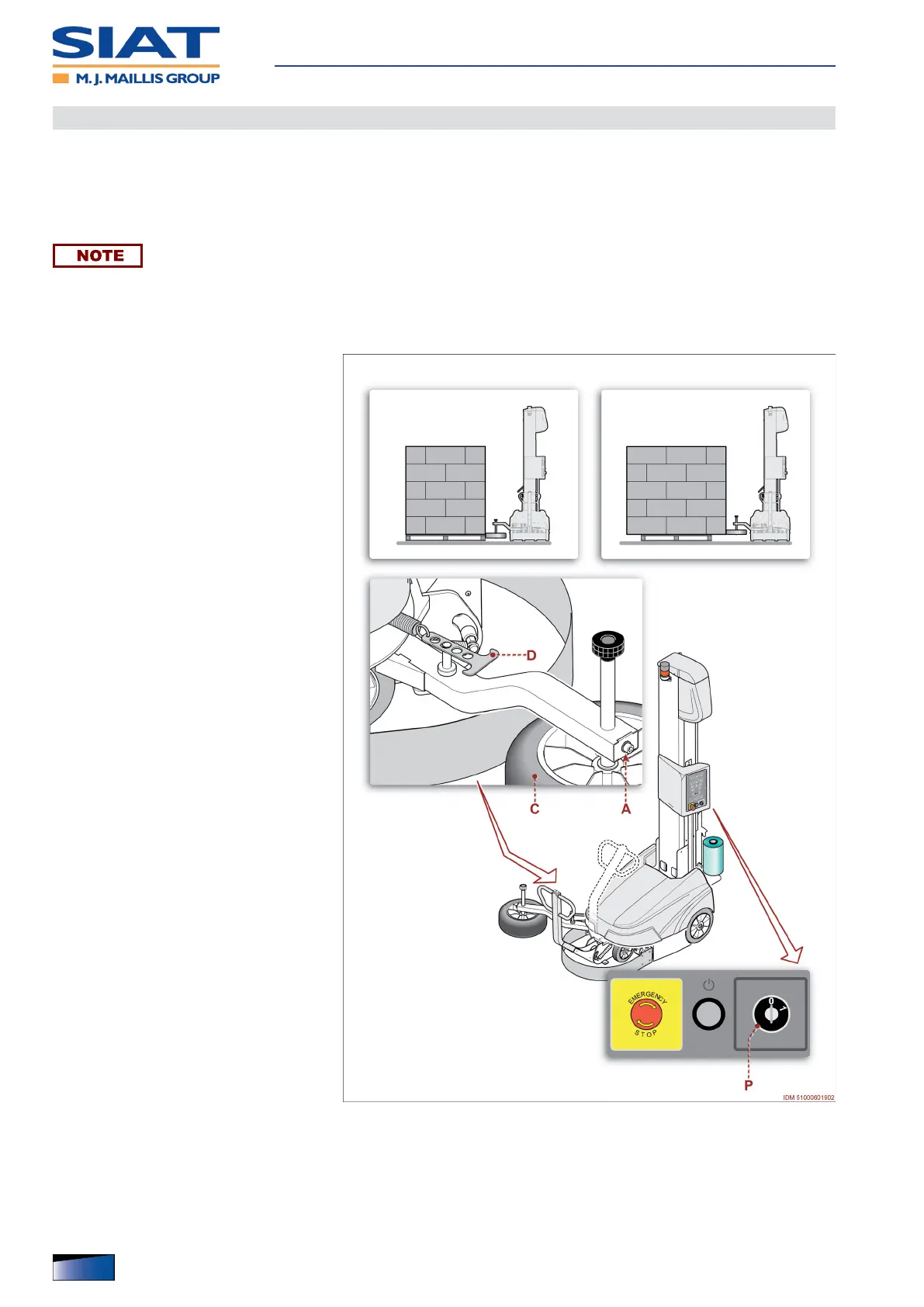

– The gure shows the points of inter-
vention and the description shows
the procedures to be adopted.
1. Move the machine to match the load
to be wrapped.
2. Rotate selector P to position “1”
(ON) in order to activate the battery
power supply.
– The power supply of batteries is de-
activated.
3. Loosen the screw A, take the wheel
C to the desired height, and then
tighten the screw.
4. Regulate the pressure of wheel C on
the pallet by means of tie rod D, ac-
cording to the wrapping speed and
the load dimensions.
5. Perform a practical test to check
whether the operation is correct and,
if necessary, repeat it.
