Daily check of the safety bumper
The check is necessary to verify the efciency of the safety system and to maintain
a suitable efcacy level to prevent unexpected risks.
Important
The check must be carried out with the machine connected to the power supply, but
NOT MOVING.

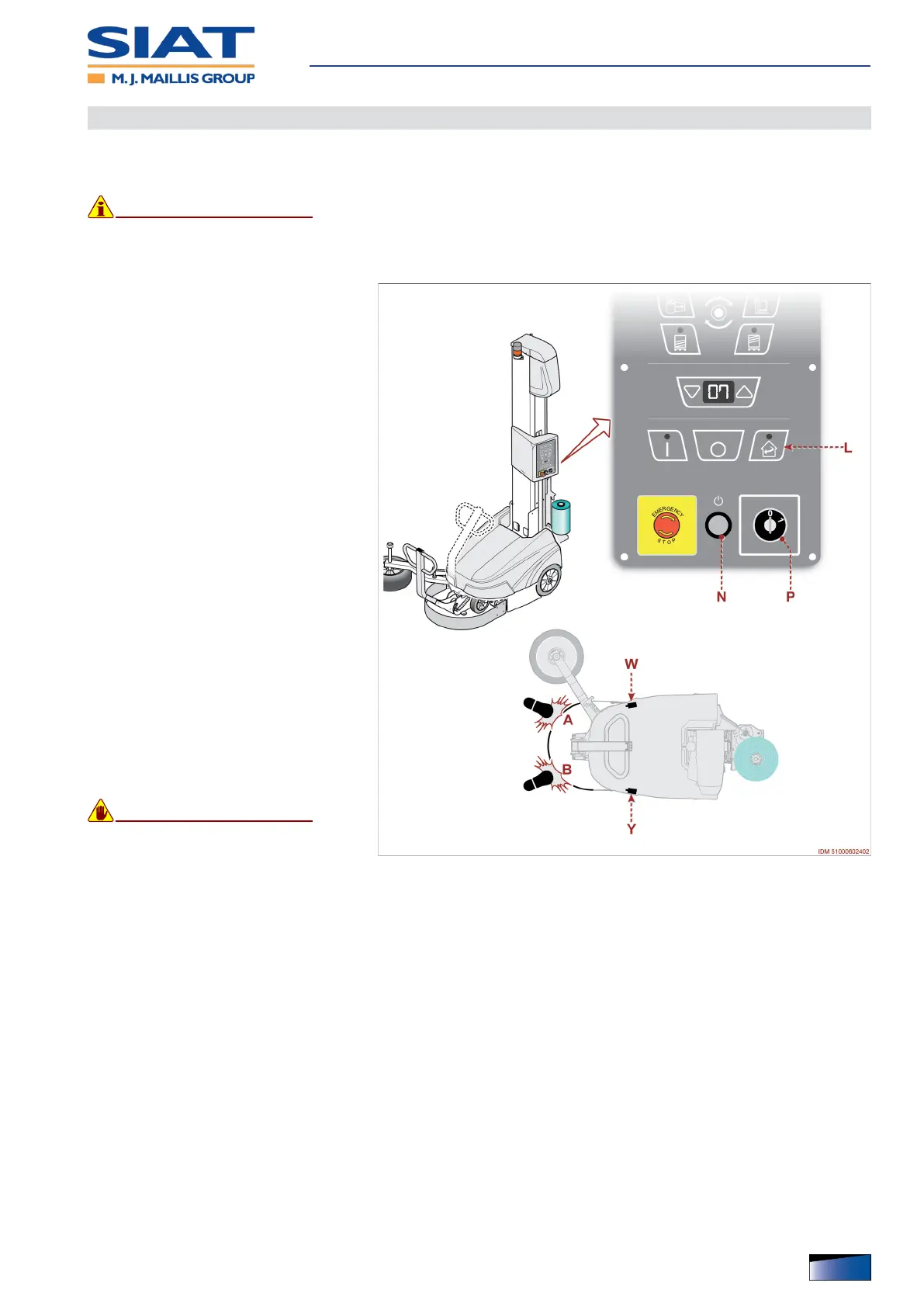

– The gure shows the points of inter-
vention and the description shows
the procedures to be adopted.
1. Rotate selector P to position “1”
(ON) in order to activate the battery
power supply.
2. Press the push-button N.
3. Exercise a strong pressure onto
point A and check whether the pilot
light of button N is on.
– Microswitch W is damaged if the pilot
light of button N stays off.
4. Press the Reset key L.
5. Exercise a strong pressure onto
point B and check whether the pilot
light of button N is on.
– Microswitch Y is damaged if the pilot
light of button N stays off.
6. Press the Reset key L.
7. Replace the components, if dam-
aged.
en
on
Warning
DO NOT keep using the machine if
you have not solved the detected de-
fects and avoid the risk of faults or
unpredictable incidents.
– If the problem persists, please contact the Manufacturer’s Technical Service.
