Maintenance
58
IDM 510-006-5
English language Operation and maintenance manual
Replacing the lifting belt of the carriage
The operation must be carried out by the maintenance technician or by personnel
with suitable competences, skills and knowledge.
Make sure to full the required requirements in order to work under safe condi-
tions.

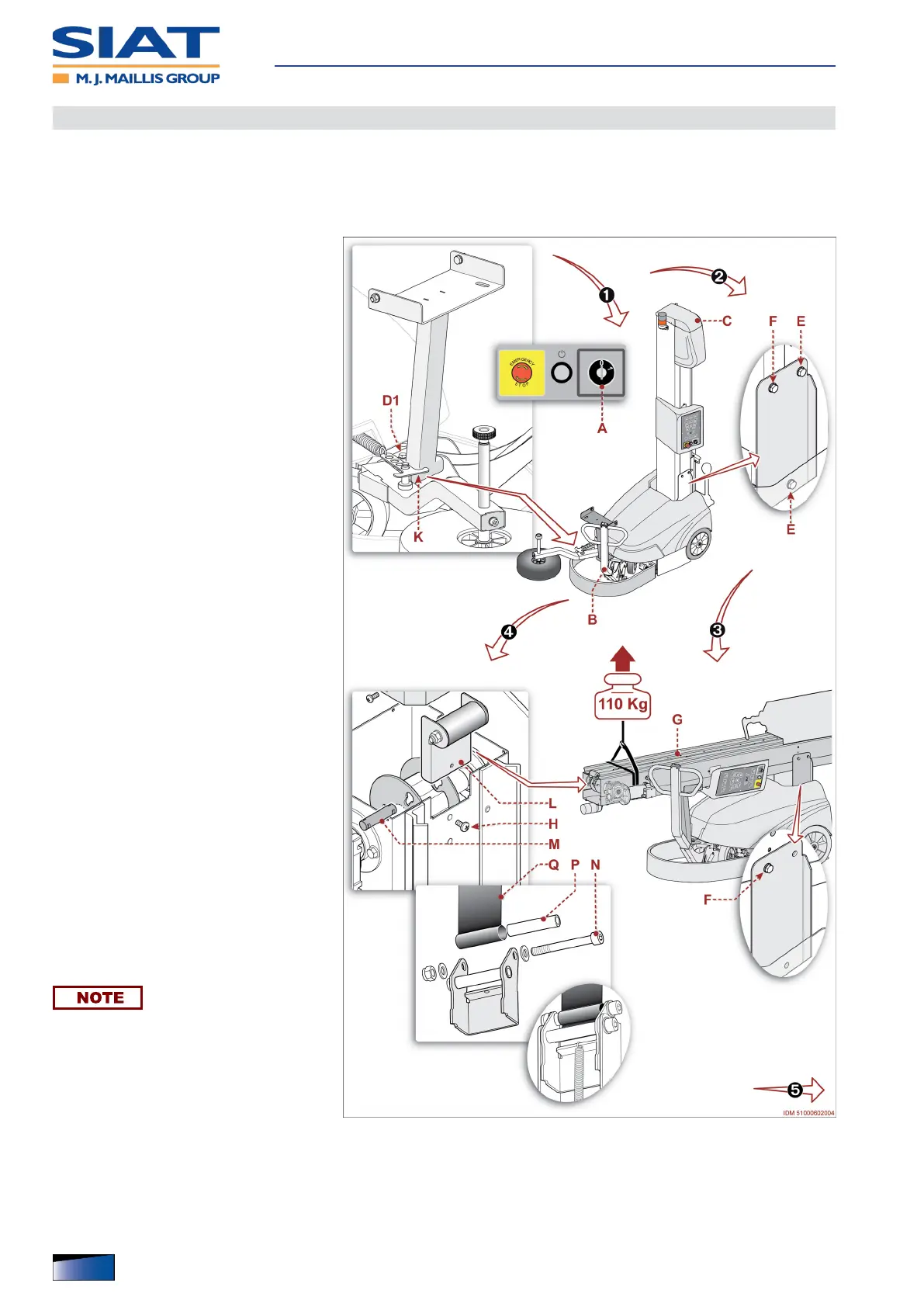

– The gure shows the points of in-
tervention and the description
shows the procedures to be
adopted.
1. Turn the selector A on position “O”
(OFF).
– The power supply of batteries is de-
activated.
2. Remove reel.
3. Unhook tie rod K.
4. Completely rotate handlebar B.
5. Remove the fastening elements and
remove the component C.
6. Install support D and x it with screw
D1.
7. Attach the column G to a lifting de-
vice.
8. Loosen screws E on both sides.
9. Slightly loosen screws F on both
sides.
10. Bring the column to a horizontal po-
sition.
11. Tighten the screws F on both sides.
12. Remove the lifting device.
13. Remove the fastening elements H
and remove the component L.
14. Slip out pin M.
15. Partially remove the reel holder car-
riage to reach the fastening elements
N.
Remove the cable bracket if neces-
sary.
16. Remove the fasteners N.
17. Remove the bushing P and remove
the damaged belt Q.
18. Insert the bushing P in the new belt.
19. Secure the end of the belt (with bushing) by means of the fastening elements N.
20. Remount the reel holder carriage.
