73
IDM 510-006-5
Reel holding carriages
English languageOperation and maintenance manual
▀
Replacement of pre-stretch kit
– The operation must be carried out by the maintenance technician or by person-
nel with suitable competences, skills and knowledge.
– Make sure to full the required requirements in order to work under safe condi-
tions.
– This service should be carried out with the reel holding carriage lowered and the
machine safely at a stop.
At delivery, machine pre-stretch corresponds to 240%.
To set pre-stretch to 200 %, replace the gears as indicated.

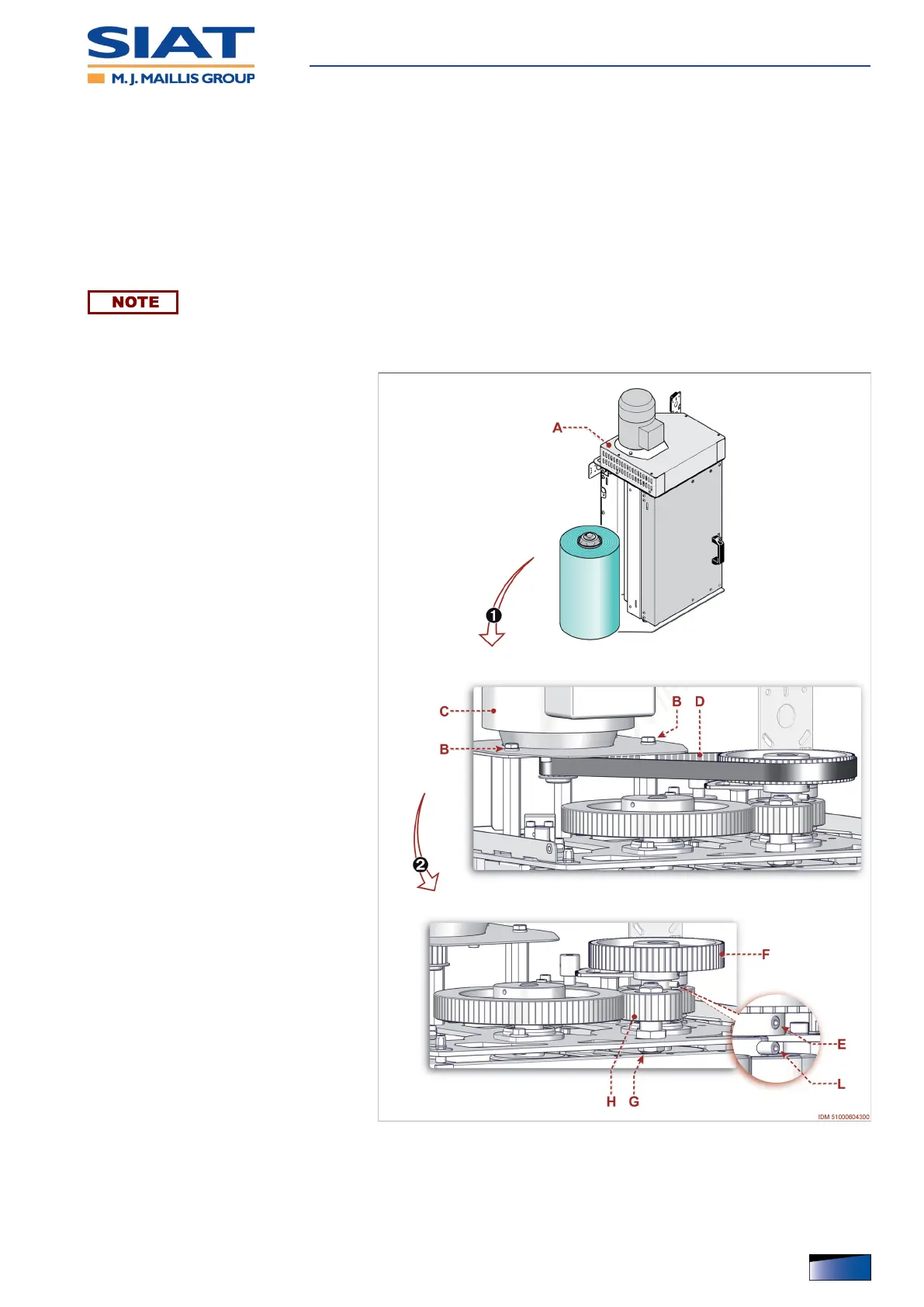

1. Disassemble the guard A.
2. Loosen screws B and move motor C
in order to completely loosen belt D.
3. Remove the belt D.
4. Loosen screw E and remove gear F.
5. Loosen nut G and loosen gear H.
