Reel holding carriages
74
IDM 510-006-5
English language Operation and maintenance manual

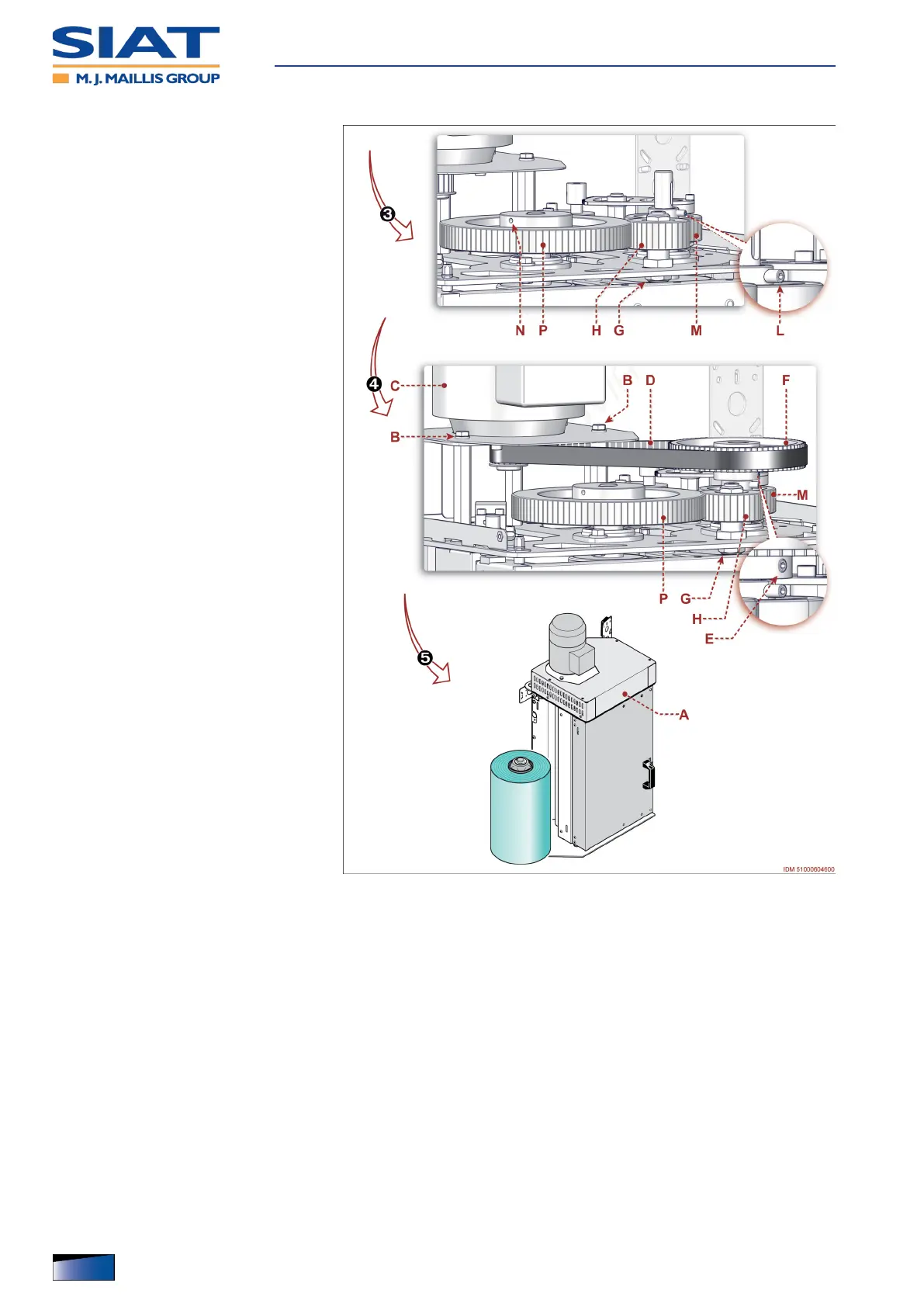

6. Loosen screw L and remove gear M.
7. Loosen screw N and remove gear P.
8. Install new gear M and tighten screw
L.
9. Install new gear P and tighten screw
N.
10. Insert the pin of gear H into one of
the holes in order to combine it prop-
erly with gears M-P.
11. Lock gear in proper position by
means of nut G.
12. Install gear F again and tighten
screw E.
13. Install belt D.
14. Shift electric motor C and simultane-
ously tighten screws B to adjust the
tension of belt D.
15. Reassemble the guard A.
– At the end of operations, check
that there are no tools or other
material near the moving parts or
in dangerous areas.
