Reel holding carriages
70
IDM 510-006-5
English language Operation and maintenance manual
Replacing the outer surface of roller
The operation must be carried out by the maintenance technician or by person-
nel with suitable competences, skills and knowledge.
Make sure to full the required requirements in order to work under safe condi-
tions.
This service should be carried out with the reel holding carriage lowered and the
machine safely at a stop.

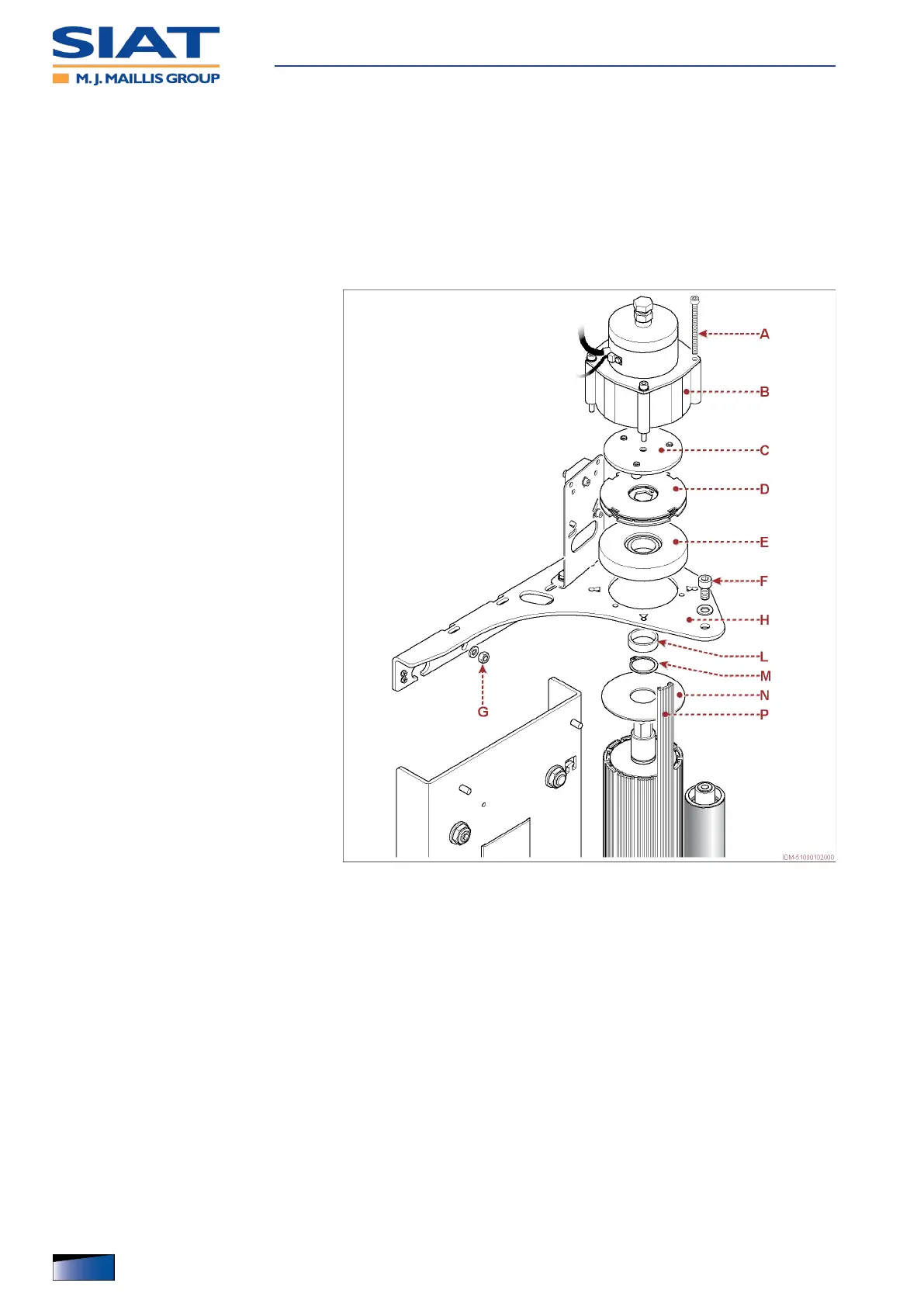

1. Loosen the screws A.
2. Disassemble the brake assembly B.
3. Remove in a sequence the compo-
nents C-D-E.
4. Unscrew screw F.
5. Unscrew the nuts G.
6. Remove the plate H.
7. Extract spacer L.
8. Remove stop ring M.
9. Remove the component N.
10. Remove all the external cylinder sur-
face inserts P, one at a time.
11. Thoroughly clean the grooves of the
roller.
12. Insert in a sequence, one at a time,
all the new external cylinder surface
inserts.
13. Install component N.
14. Reinstall the retainer ring M.
15. Install the spacer L.
16. Fit back the plate H and x it with the
nuts G without tightening.
17. Insert screw F and tighten it.
18. Adjust the position of the plate H and
tighten the nuts G.
19. Install in a sequence the components E-D-C.
20. Install the brake assembly B and x it with the screws A.
At the end of operations, check that there are no tools or other material near the
moving parts or in dangerous areas.
