Use and functioning
42
IDM 510-006-5
English language Operation and maintenance manual
Disassembly and reassembly of battery panel
This operation allows easy access to internal areas where the battery is installed.
– The operation must be carried out by the maintenance technician or by person-
nel with suitable competences, skills and knowledge.
– Make sure to full the required requirements in order to work under safe condi-
tions.

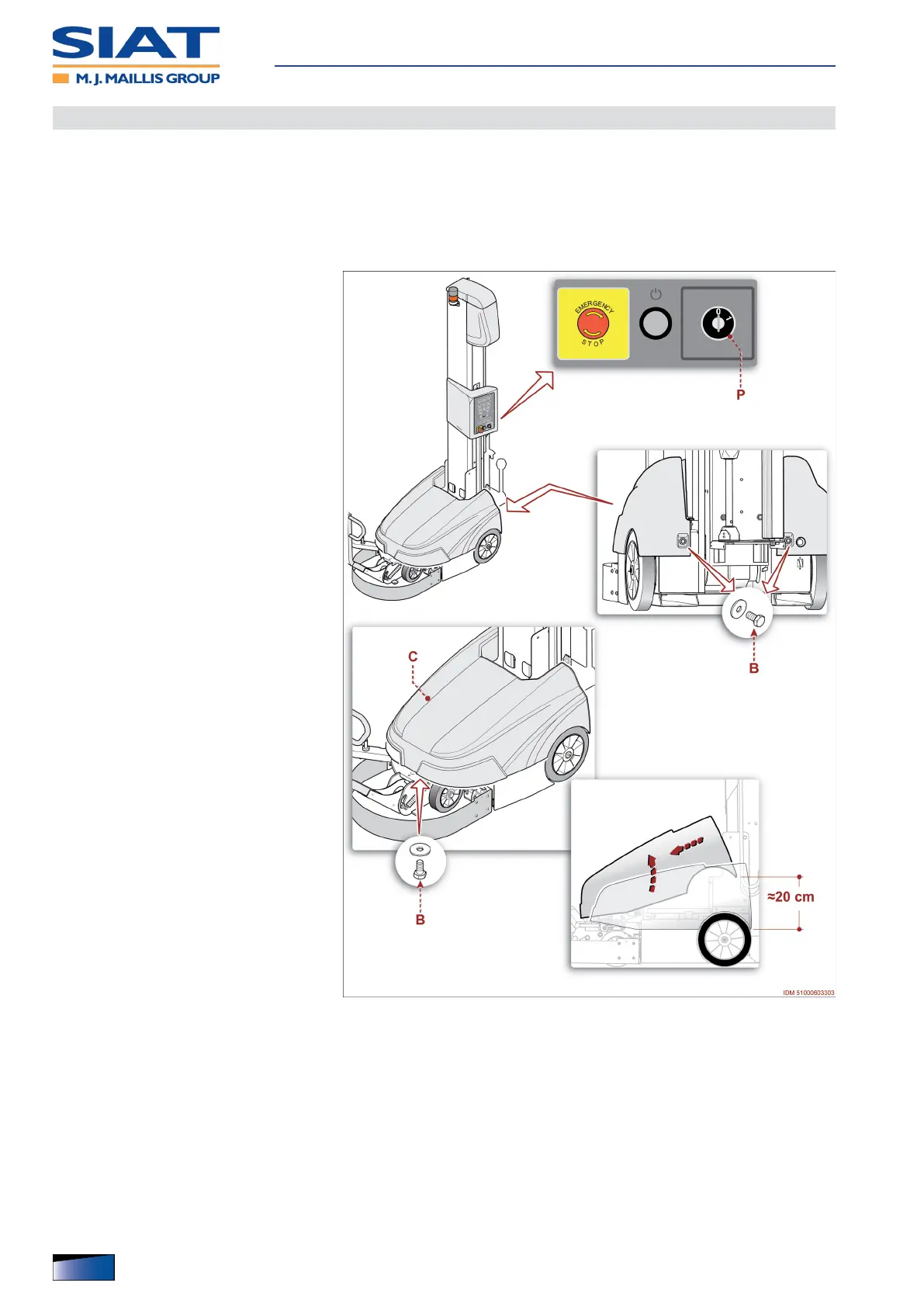

– The gure shows the points of in-
tervention and the description
shows the procedures to be
adopted.
1. Turn the selector P on position “O”
(OFF).
– The power supply of batteries is de-
activated.
2. Loosen screws B and remove them.
3. Slightly lift the rear side of panel C
and extract it forward to remove it.
▀
Assembly of battery panel
– Connect the front side of panel C to
the machine and lower it to starting
position.
– Introduce and tighten the screws B.
4. Rotate selector P to position “1”
(ON) in order to activate the battery
power supply.
