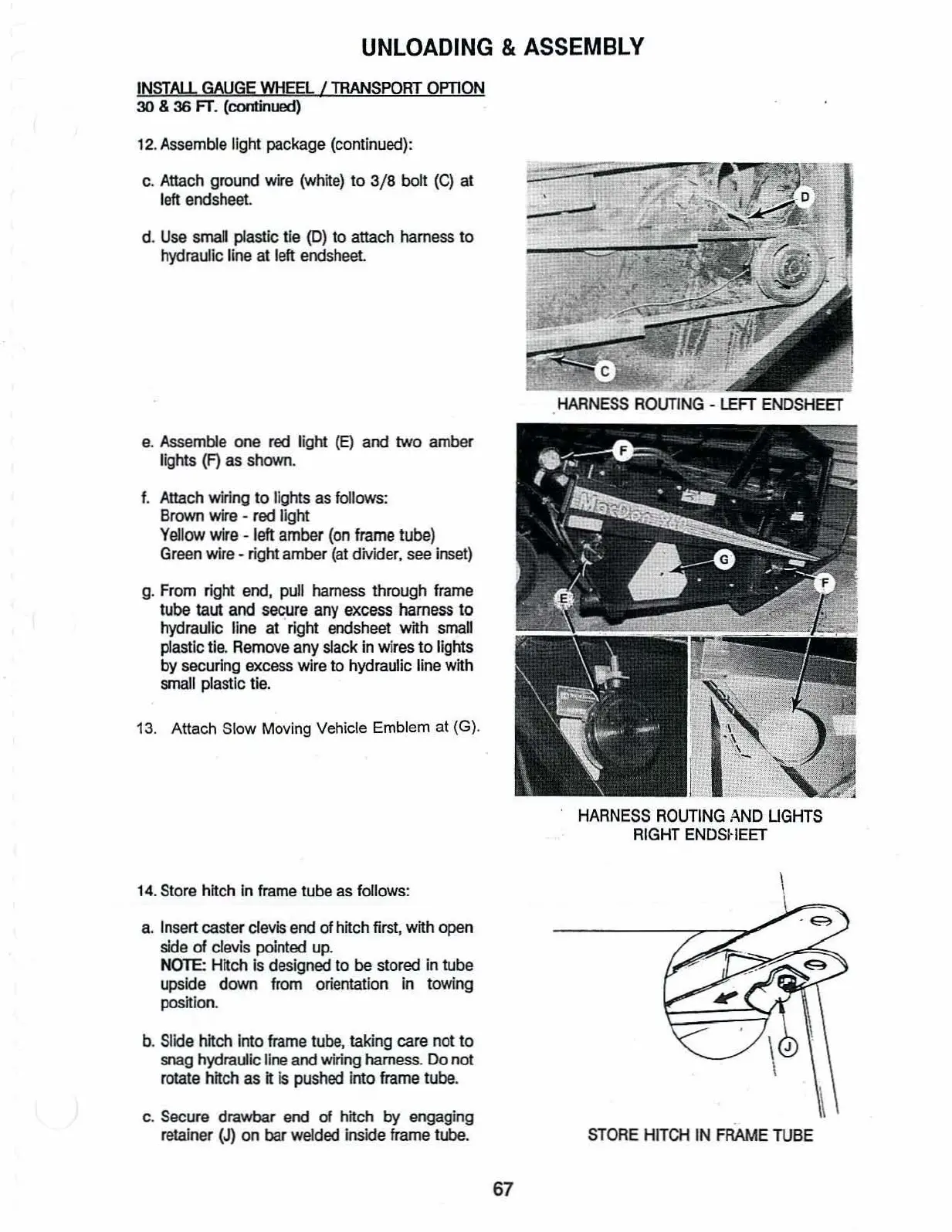

UNLOADING
&
ASSEMBLY
INSTAll.
GAUGE
WHEEL
I
TRANSPORT
OP1l0N
30
&
36
FT.
(continued)
12.
Assemble
light
package
(continued):
c.
Attach ground wire (wMe)
10
3/8
boll
(C)
al
t:t::'
~:=:::-~:::~~rf,r1~~~
left
endsheet
d. Use small plastic tie (0)
to
attach harness to
hydraulic line at left endsheet
e.
Assemble one
red
light
(E)
and two amber
lights
(F)
as shown.
f.
Attach wiring
to
lights
as
follows:
Brown
wire·
red light
Y8110w
wire
-left
amber (on frame lube)
Green
wire - right amber
(at
divider.
see
inset)
g. From right end, pull harness through frame
tube
taut
and
secure
any
excess
harness
to
hydraulic line
at·
right endsheet with
sman
plastic
tie.
Remove
any
slack
in
wires to lights
by
securing
excess
wire
10
hydraulic
line
with
small
plastIc
tie.
13.
Attach Slow Moving Vehicle Emblem at (G).
HARNESS
ROUTING
AND
UGHTS
RIGHT
ENDSHEET
14.
Store
hitch
In
frame
tube
as
follows:
a.
Insert
caster
clevis
end
of
hitch first, with
open
side
of
clevis
pointed
up.
NOlE: Hitch
Is
designed
to
be stored in tube
upside
down 'rom orientation
in
towing
position.
b.
Slide hitch into frame tube. taking care not
to
snag hydraulic line and wiring harness. Do not
rotate hitch as
it
is pushed into frame tube.
c.
Secure drawbar end
of
hitch
by
engaging
retainer
(J)
on bar welded inside frame tube.
67
STORE
HITCH
IN
FRAME
TUBE
