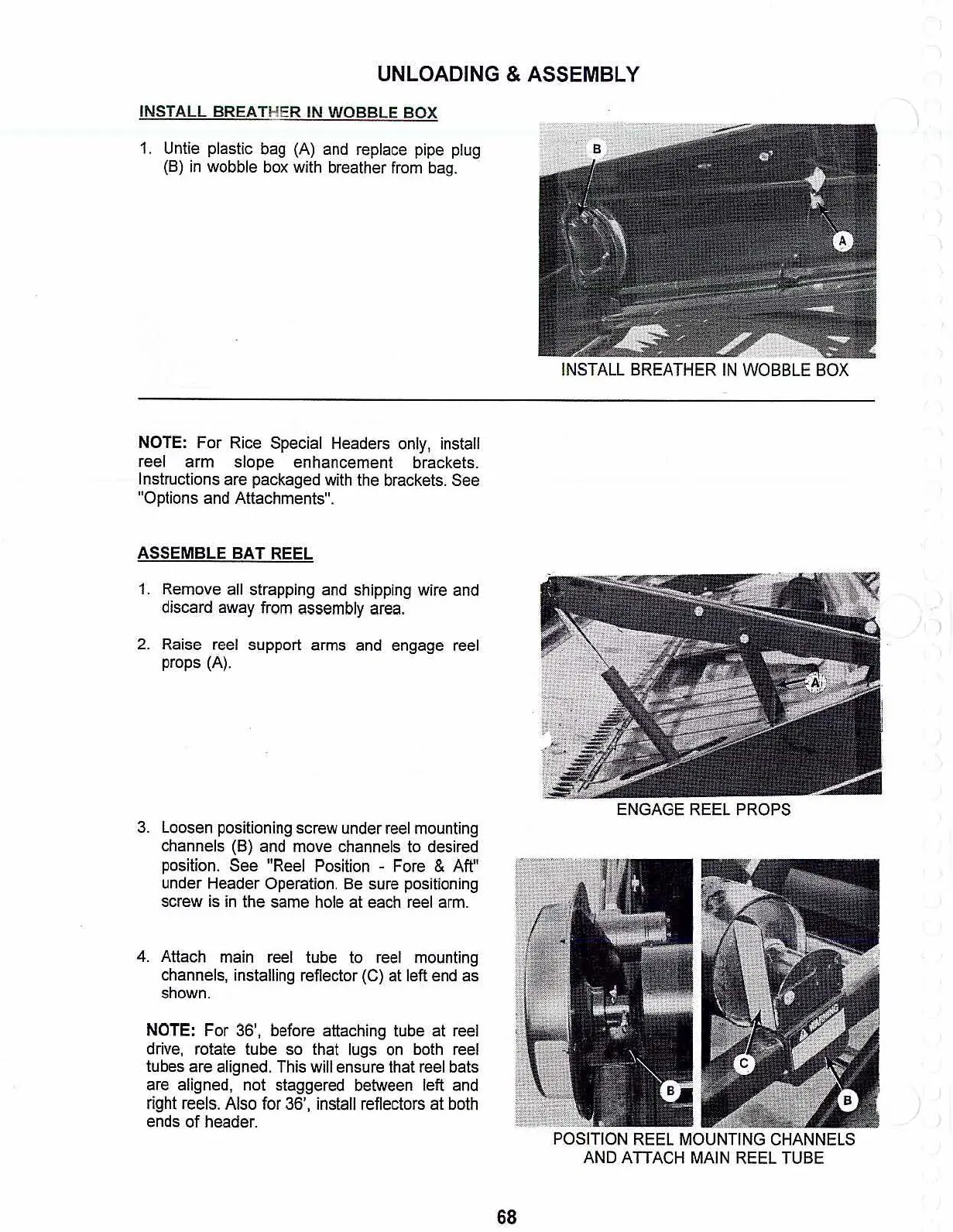

UNLOADING & ASSEMBLY
INSTALL
BREATHER
IN
WOBBLE
BOX
1.
Untie
plastic
bag
(A)
and
replace
pipe plug
(8)
in
wobble box with breather from bag.
INSTALL BREATHER IN
WOBBLE
BOX
NOTE:
For
Rice
Special Headers
only,
install
reel arm slope enhancement brackets.
Instructions are packaged with the brackets. See
"Options and Attachments",
ASSEMBLE
BAT
REEL
1.
Remove all strapping and shipping wire and
discard away from assembly area.
2.
Raise reel support arms
and
engage
reel
props (A).
ENGAGE REEL PROPS
3.
Loosen positioning screw under reel mounting
channels (B) and move channels to desired
position.
See
"Reel Position - Fore & Aft"
under Header Operation. Be sure positioning
screw is in the same hole
at
each reel arm.
4.
Attach
main
reel
tube
to
reel
mounting
channels, installing reflector (C) at left end as
shown.
NOTE:
For
36', before attaching tube at reel
drive, rotate tube so that lugs on both reel
tubes are
aligned. This witt ensure that reel bats
are aligned, not staggered between left and
right reels. Also
for
36', install reflectors
at
both
ends
of
header.
POSITION REEL MOUNTING CHANNELS
AND ATTACH MAIN REEL
TUBE
68
To Next Page
