HOISTS 18000 SERIVCE/MAINTENANCE MANUAL
5-2
Published 12-05-17, Control # 035-23
6. Set Dimension B (View B):
a. Loosen jam nut (5).
b. Turn adjusting screw (6) IN until Dimension B is
obtained between pawl (1) and ratchet tooth (2).
c. Securely tighten jam nut (5) to lock adjusting screw.
7. Operate pawl (1) to make sure that internal limit
switches stop actuator motor when actuator (3) is fully
extended and fully retracted and that pawl (1) fully
engages and disengages ratchet tooth (2).
CAUTION
Flying Part Hazard!
Actuator must be free to fully extend and retract. Motor
will overheat and be ruined if actuator stroke is restricted
in either direction.
Item Description
1Pawl
2 Ratchet Tooth
3Actuator
4 Electrical Cord
5Jam Nut
6 Adjusting Screw
7 Leaf Spring
8Actuator Pin
9 Lug
10 Bracket
11 Bracket Nuts
Dimension A Dimension B
1-9/16 in 40 mm 21/32 in 17 mm

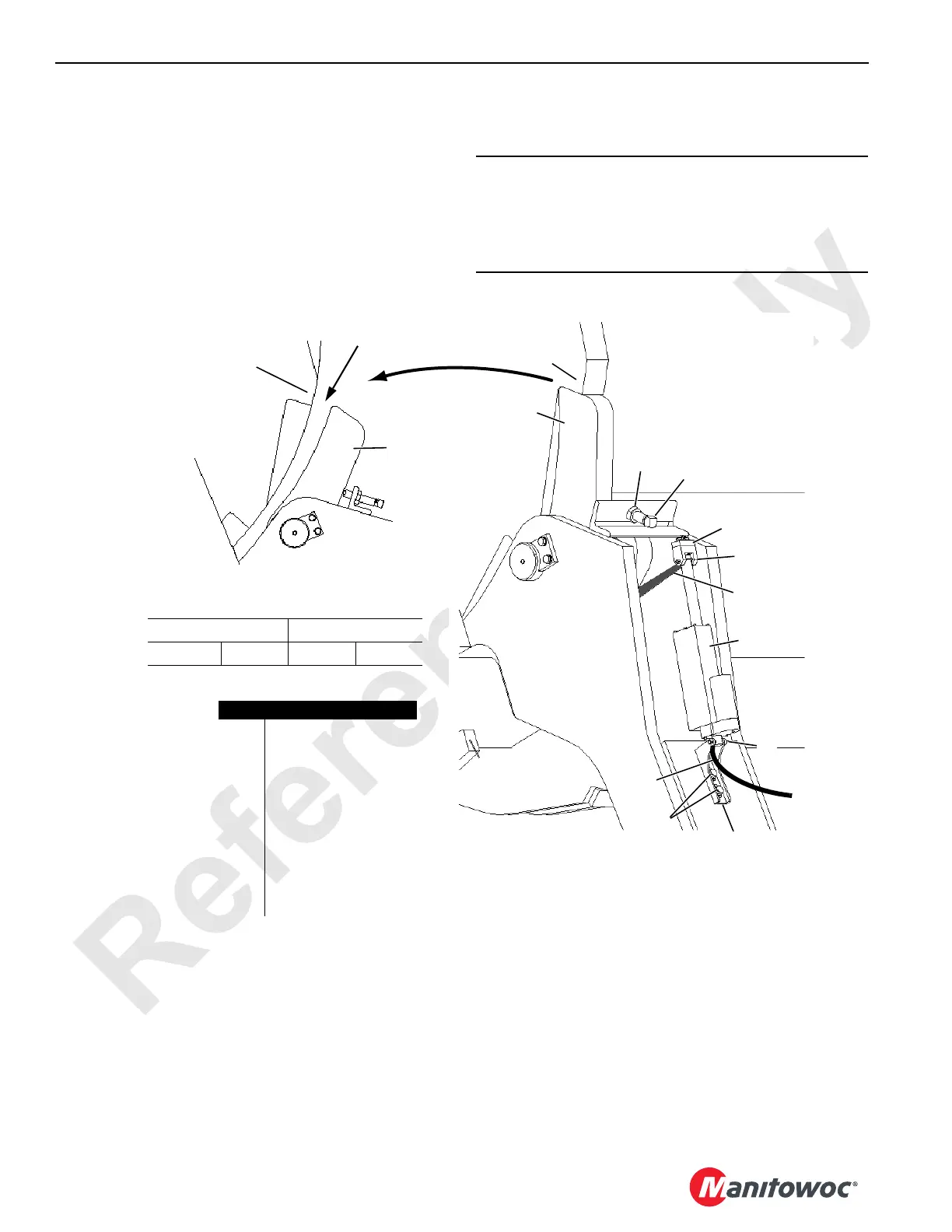

FIGURE 5-1
8
11
10
3
6
5
8
9
1
2
7
Measure Dimensions
A and B Here
2
View B
1
View A
4
18CSM5-102
18CSM5-100
