stretch slightly, adjust themselves, and distribute the
sealing pressure evenly. To complete a tight seal, apply
pressure by hand at outer rim of filters, not the flexible
center. Avoid pushing center of urethane end cap. No
cover pressure is required to hold the seal. Again, do
not use service cover to push filter into place.
9. Check connections for tight fit:
Make sure that all clamps, bolts, and connections in
entire air intake system are tight. Check for holes in
piping, and repair if needed.
14
3
Access Through Door
in Left Enclosure
Service
Indicator
4
5
15
9
1
2
OR
6
8
7
10
12
11
13
A02258

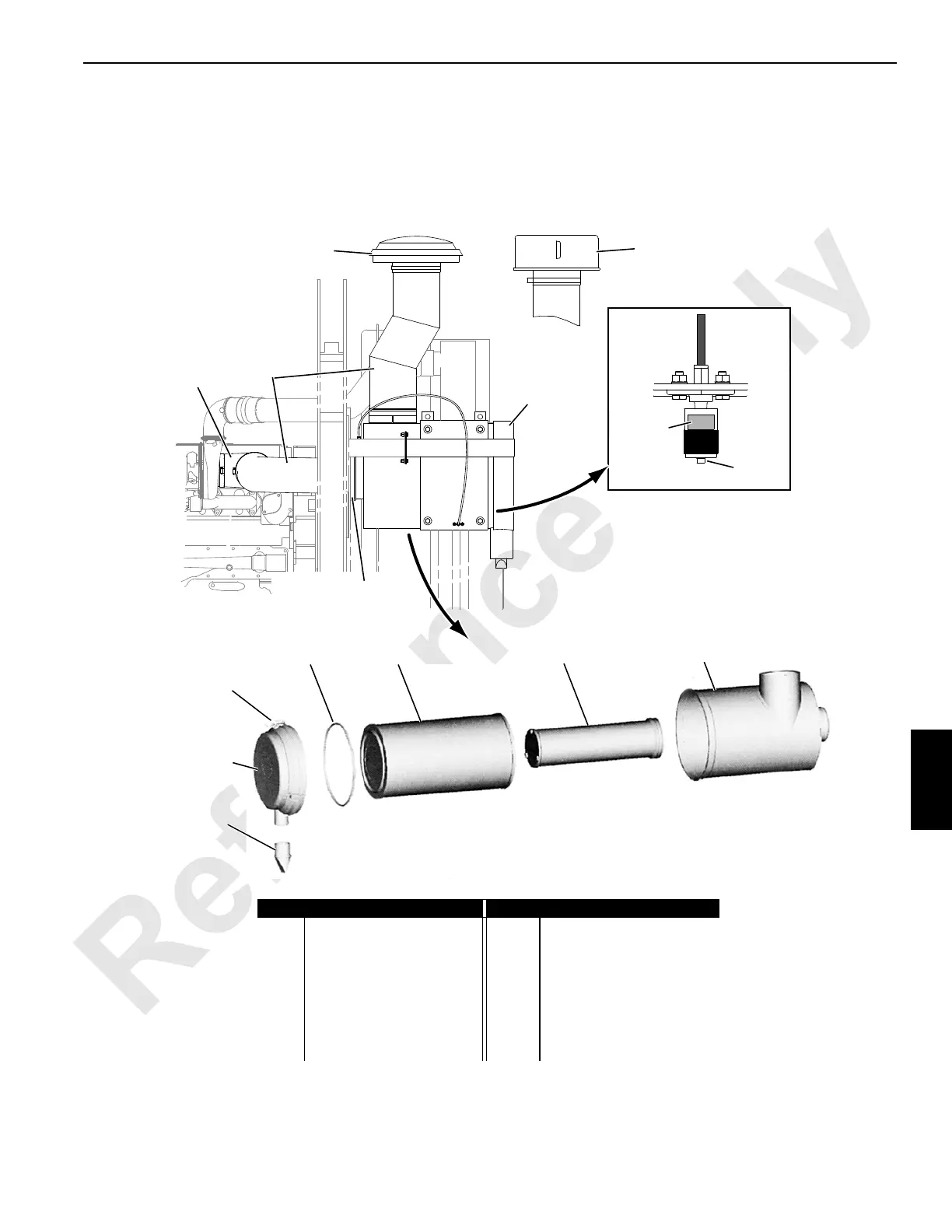

Item Description Item Description
1 Standard Inlet Cap 9 Rubber Reducer with Clamps
2 Pre-Cleaner Inlet Cap 10 Cover Seal
3 Housing 11 Clamp
4 Window 12 Service Cover
5 Reset Button 13 Evacuator™ Valve
6 Housing 14 Rubber Elbow with Clamps
7 Safety Filter 15 Tube
8 Primary Filter
FIGURE 7-6
18CSM7-101
