INTRODUCTION 18000 SERIVCE/MAINTENANCE MANUAL
1-56
Published 12-05-17, Control # 035-23
SUCTION
MANIFOLD
MAIN HOIST 2
DOWN
UP
340 PSI
(23 BAR)
B
A
PRESSURE
SENDER
SUCTION
MANIFOLD
DOWN
UP
340 PSI
(23 BAR)
B
A
PUMP 2/5
MAIN HOIST 2
PUMP 2
MAKE-UP CHARGE PRESSURE
VALVE
DIVERTER
MAKE-UP CHARGE PRESSURE
.060.060
HS-11
DRUM
BRAKE
TO MAIN HOIST 2
RIGHT SIDE MOTOR
DRUM 5
MAST HOIST
A
B
HIGH-PRESSURE
LOW-PRESSURE
SIDE
SIDE
TO MAIN HOIST 2
LEFT SIDE MOTOR
HS-12
HS-13
LOW PRESSURE
ACCESSORY SUPPLY
HS-14
X

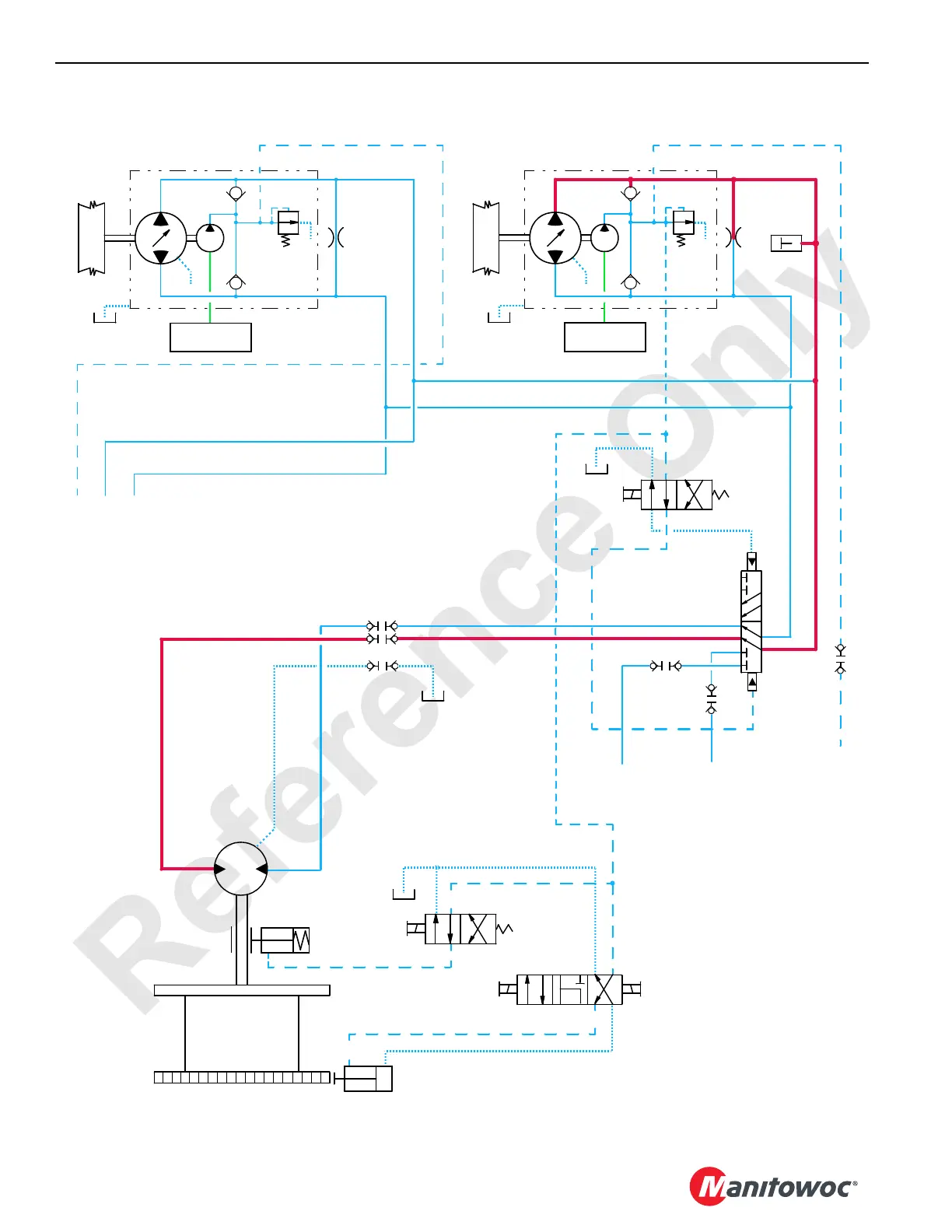

FIGURE 1-35
18CSM1-133
