OPERATING PROCEDURES GRT655/655L OPERATOR MANUAL
4-94 Published 3-23-2020, Control # 654-04
prevent raising and lowering the boom, extending the boom,
or raising the main or auxiliary (optional) hoist ropes.

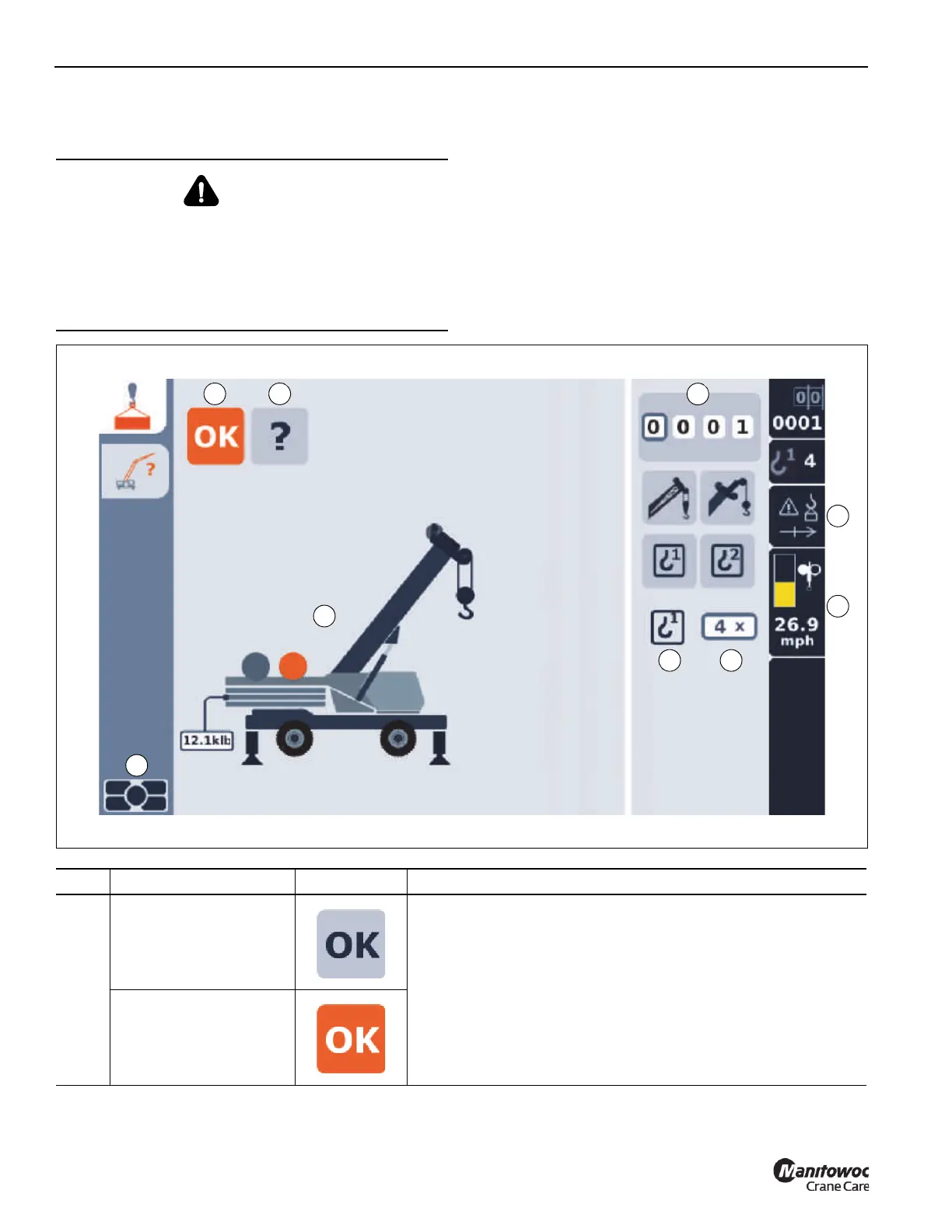

The RCL Setup Screen (Figure 4-68) appears on the RDM
when the ignition key is set to the On position. The operator
can either input a code number from the Load Chart or use
the setup wizard.
Program the RCL by doing one of the following:
• Entering a Code Number Manually, page 4-96
• Using the Setup Wizard, page 4-98
DANGER
Electronic equipment on this crane is intended as an aid
to the operator. Under no condition should it be relied on
to replace the use of Load Charts and operating
instructions.
Sole reliance on these electronic aids in place of good
operating practices can cause an accident.
Item Description Graphic Explanation
1
OK icon - not selected
Icon used to accept the current programmed RCL crane
configuration or load chart code number.
OK icon - selected
FIGURE 4-68
1 2
4
7
8
6
5
9
3
9219
