Manitowoc MLC300 - Page 151

Manitowoc Published 11-20-19, Control # 234-19 4-5
MLC300 OPERATOR MANUAL SETUP AND INSTALLATION
3
1
4

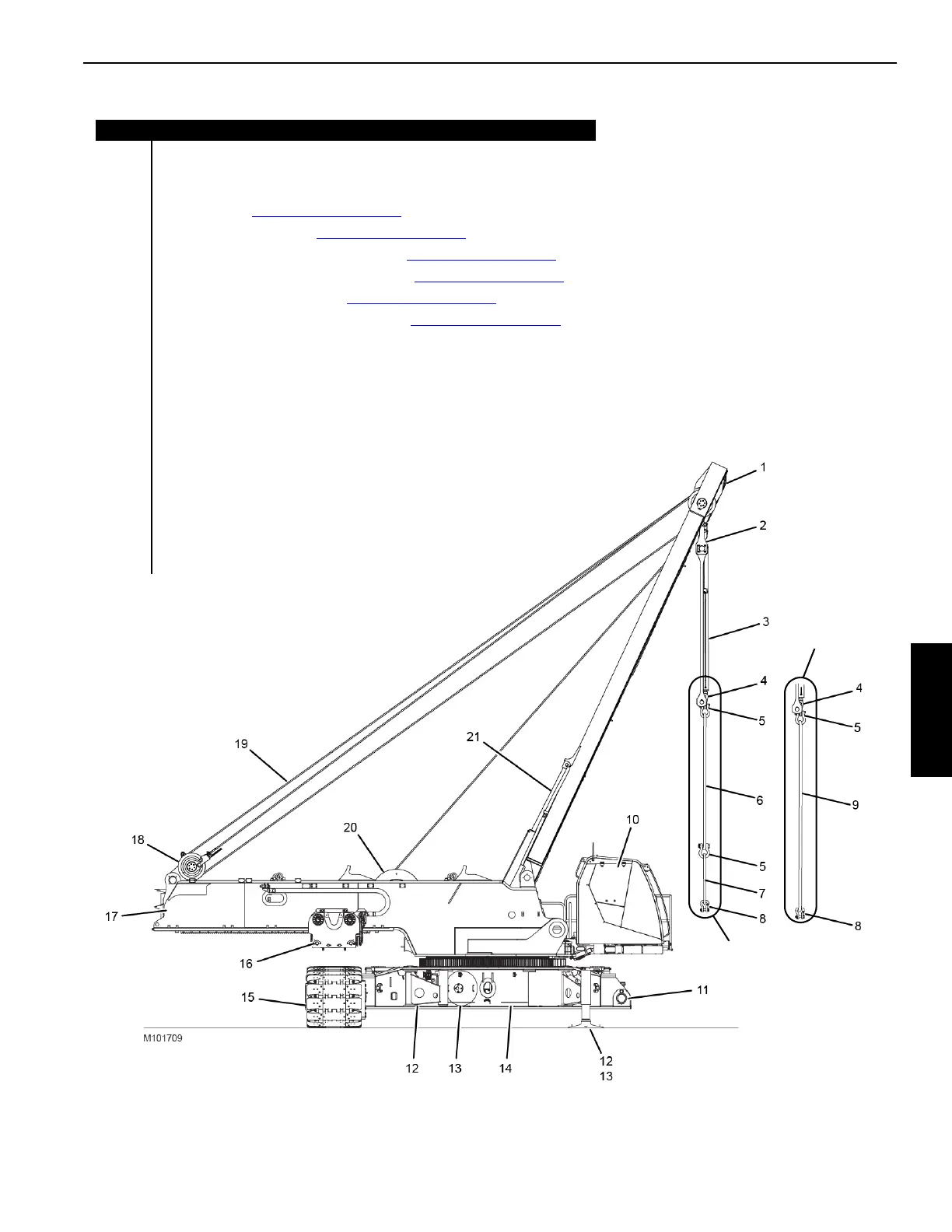

Item Description
1Live Mast
2 Mast Strap (2)
3 Self-Erect Cylinder
4
Lifting Link (see
Figure 4-6 on page 4-7)
5
Shackle: 25 t (28 USt) (see
Figure 4-6 on page 4-7) (6 past, 2 current)
6
Synthetic Lifting Sling: 2, 8 m (9 ft) (4) (see
Figure 4-5 on page 4-6)
7
Synthetic Lifting Sling: 1,0 m (3.3 ft) (4) (see
Figure 4-5 on page 4-6)
8
Shackle: 20,5 t (23 USt) (6) (see
Figure 4-5 on page 4-6)
9
Synthetic Lifting Sling: 4,0 m (13 ft) (4) (see
Figure 4-5 on page 4-6)
10 Cab
11 Crawler Pin Puller (4)
12 Carbody Jack (4)
13 Jack Pad (4)
14 Carbody
15 Crawler (2)
16 VPC Trolley Pin Puller (4)
17 Rotating Bed
18 Boom Hoist Equalizer
19 Boom Hoist Wire Rope
20 Boom Hoist (Drum 4)
21 Mast Assist Arm (with cylinder) (2)
Figure 4-4
PAST
Production
CURRENT
Production
