SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-128
Published 11-20-19, Control # 234-19

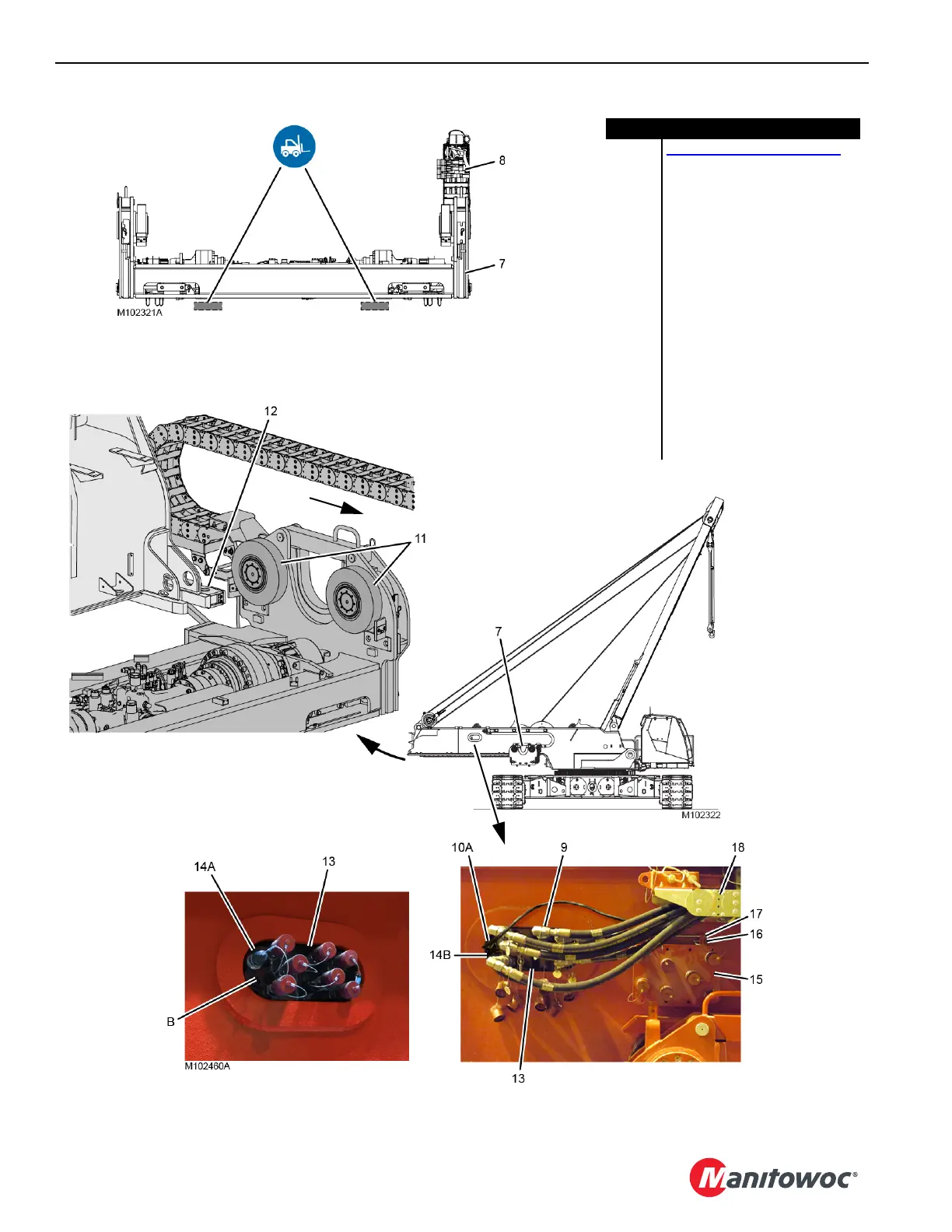

Figure 4-87
Item Description
1-6
Figure 4-85 on page 4-126
7 VPC Trolley
8Energy Chain
9 Hydraulic Hoses (7)
10 Electric Cable
11 Trolley Roller (4)
12 Trolley Rail (2)
13 Bulkhead
14 CAN Terminator Plug
15 Hose Storage Bracket with
Couplers and Dust Caps
16 Safety Pin (2)
17 Pin with Cotter Pins
18 Energy Chain
A Receptacle (power)
B Receptacle (storage)
View A — REAR
View B
View C — SHIPPING
View D — WORKING
