SETUP AND INSTALLATION MLC300 OPERATOR MANUAL

4-146

Published 11-20-19, Control # 234-19

Item Description

1Live Mast

2 Keeper Pin with Safety Pin (4)

3 Mast Hinge Pin

4 Equalizer Hinge Pin

5 Pin with Safety Pin (4)

6 Boom Hoist Mounting Frame

7 Alignment Lug (2)

8 Alignment Ring (2)

9 Rotating Bed Lug (2)

10 Alignment Pin (4)

11 Alignment Notch (4)

12 Rotating Bed Frame

13 Alignment Lug (2)

14 Boom Hoist Equalizer

15 Alignment Ring (2)

16 Rotating Bed Lug (2)

17 VPC Trolley

18 Stop Block (2)

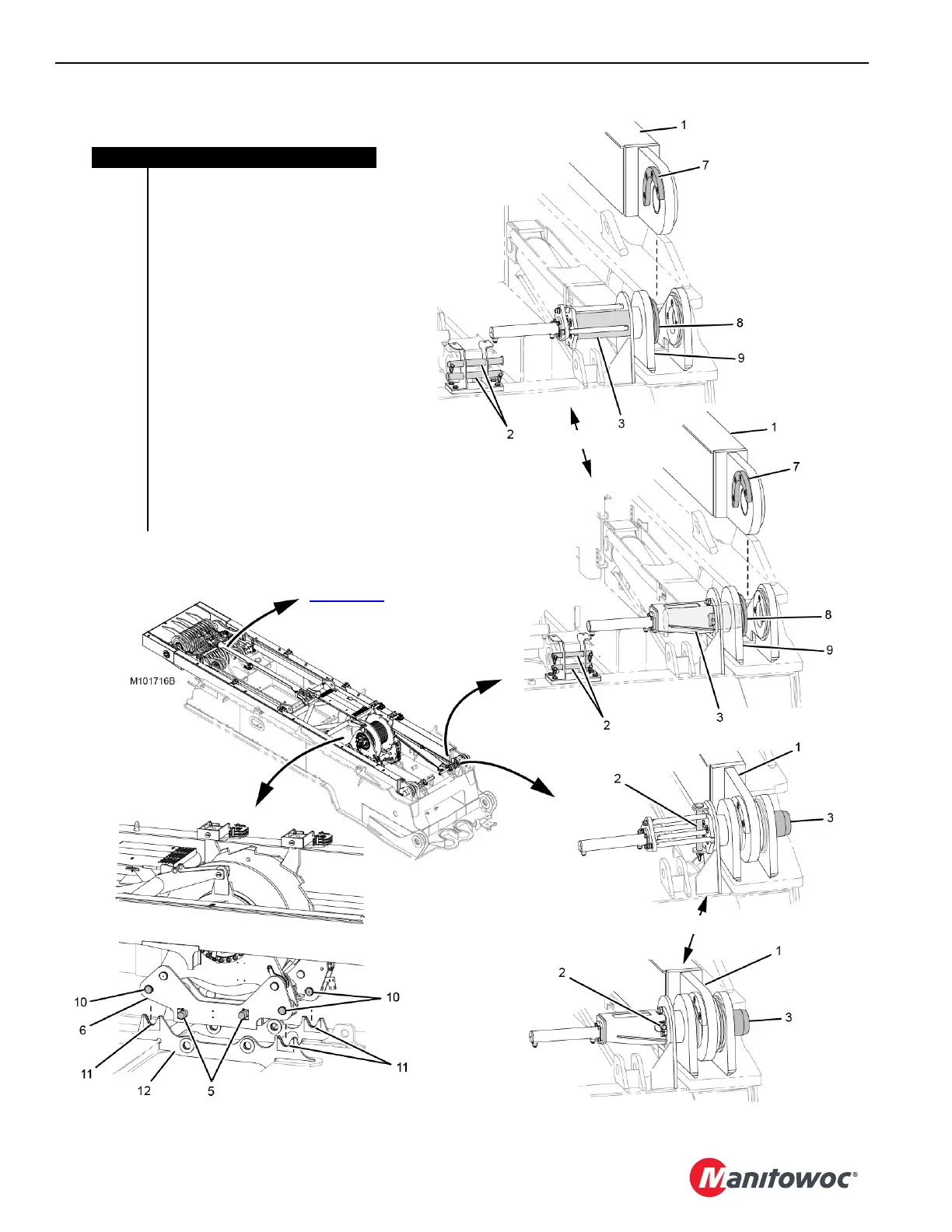

Figure 4-98

View C

See Views D and E

page 4-147

View A1

STORED

View B1

WORKING

View B2

WORKING

View A2

STORED
