Manitowoc Published 11-20-19, Control # 234-19 4-145
MLC300 OPERATOR MANUAL SETUP AND INSTALLATION
3
1
4
NOTE The live mast, the boom hoist, and the boom hoist
equalizer are shipped as an assembled package.
An assist crane is required to lift the live mast
package. The assist crane must meet the
specifications given in Figure 4-97
.

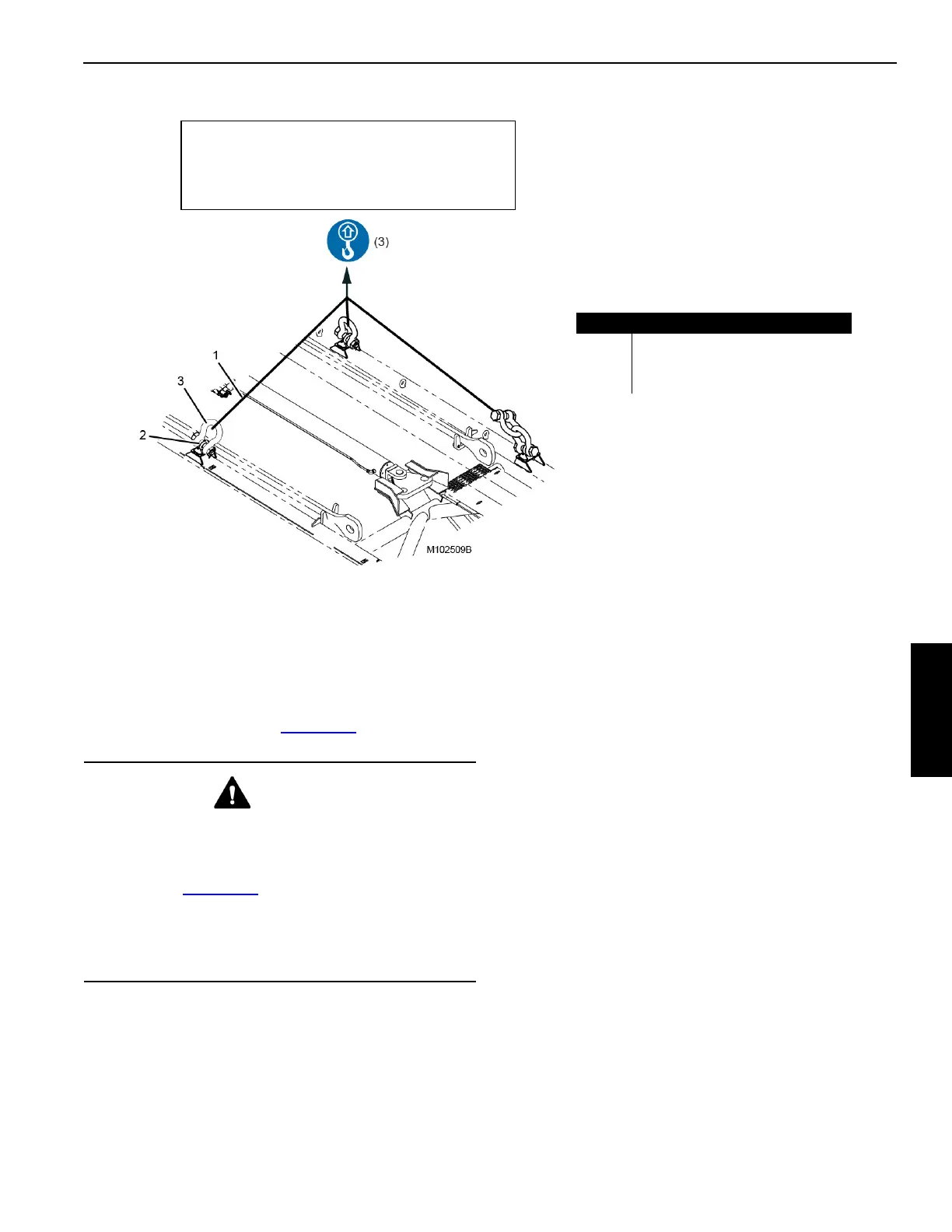

10. Attach the Manitowoc supplied lifting slings (1) to the
hook of the assist crane.
11. Connect the other end of the lifting slings (1) to the lifting
lugs (2) on the live mast with the Manitowoc supplied
shackles (3).
• Use one shackle at both rear lifting lugs.
• Use two shackles at the left-front lifting lug.
Continued on next page.
Item Description
1 Lifting Sling (3): 2,8m (9 ft) long
2 Lifting Lug (3)
3 Shackle (3): 20,5 t (23 USt)
Assist Crane Requirements:
– 9 072 kg (20,000 lb) Capacity
– 8,2 m (26 ft 9 in) Hook Height with Manitowoc Slings
– 7 m (23 ft) Minimum Radius
Figure 4-97
WARNING
Falling Load Hazard
Prevent the live mast package from falling when lifted:
• Lift only with the specified rigging at the locations
shown in Figure 4-97
.
• Lifting in any other manner will cause the live mast
package to hang out of level from side to side and
may cause the live mast package to slide or rock to
one side.
