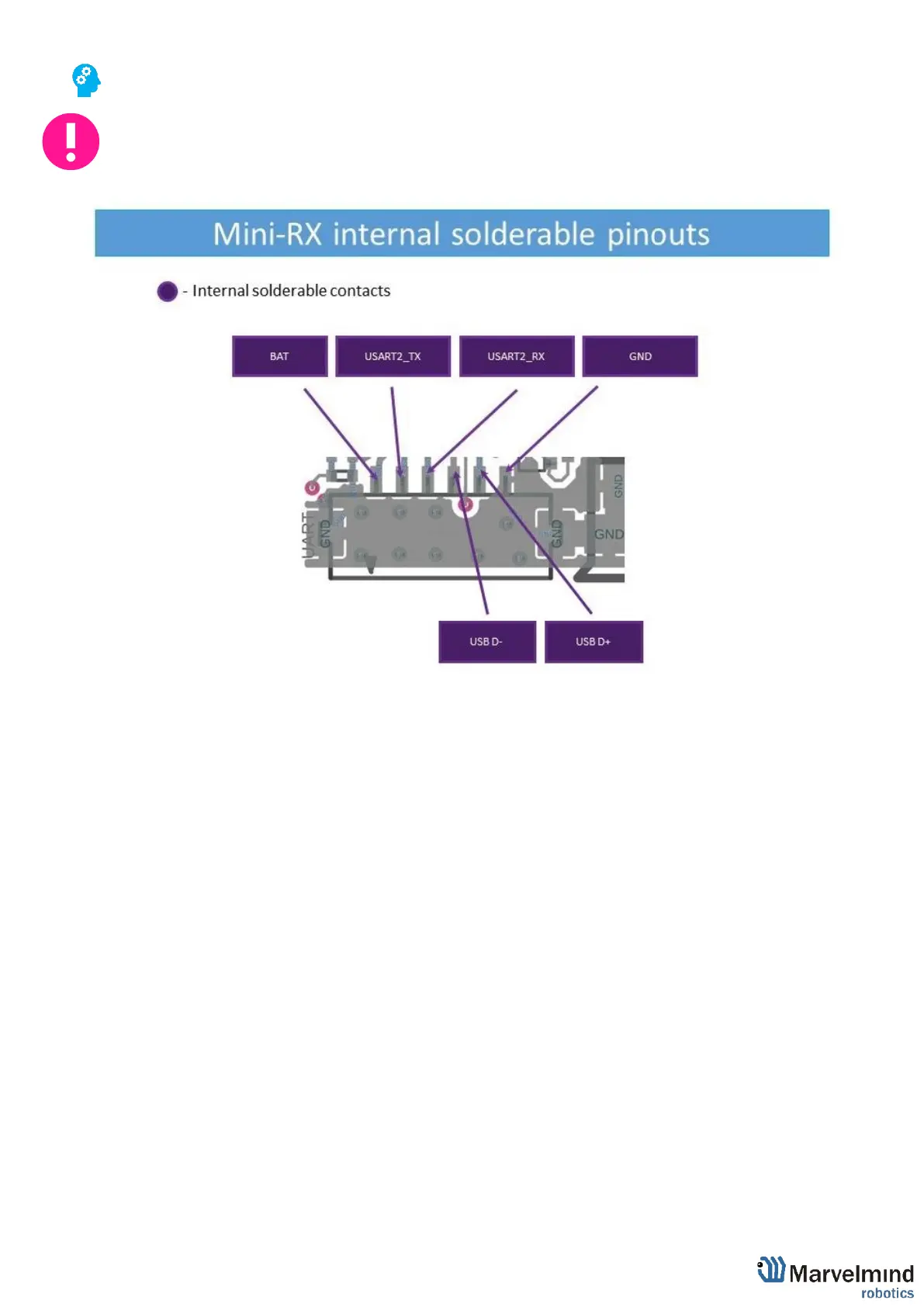

10.4. Mini-RX internal solderable pinouts (for experienced users only)
Use it only if you sure that you can solder it correctly
Do not forget to turn off the beacon with DIP-switches
If you solder bad and kill the beacon, Marvelmind team won’t be responsible for it
To get UART data streaming from beacon Mini-RX, you must solder to the pins on the
board.
*BAT - you can disconnect internal battery and supply here an external power source of
3.5V-5.2V to the point with current up to 50mA
